DAHUA HRX-435 CCTV攝影機安裝・保養

Name: DAHUA HRX-435 HRX-435
Brand: dahua
SKU: HRX-435

產品簡介

dahua HRX-435 為HRX-435，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 HRX-435 香港價格連安裝報價。

Analog camera：Inputs 4CH(1Vp-p 75ohm, BNC)
Signal Type：AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p,
Network camera：Inputs Additional 2CH (Up to 6CH)
解像度：8MP ~ CIF
網絡協議：SUNAPI(Wisenet), ONVIF

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Analog camera	Inputs 4CH(1Vp-p 75ohm, BNC)
Signal Type	AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(8MP, 5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL)
Network camera	Inputs Additional 2CH (Up to 6CH)
解像度	8MP ~ CIF
網絡協議	SUNAPI(Wisenet), ONVIF
Live	Local Display 1x HDMI, 1x VGA (simultaneous output) HDMI: 3840 x 2160,2560x1440,1920x1080,1280x1024, 1280x720 VGA: 1920x1080,1280x1024,1280x720
Record	Compression H.265, H.264, MJPEG
Record Rate(Analog)	(Main Stream) 8MP 8/8fps,5M 12/12fps,4M 15/12fps,2M 30/25fps,720p 30/25fps, 960H/640H 30/25fps (NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH,* The maximum recording frame rate depends on the frame rate of the input camera.
Recording Bandwidth	Max. 30Mbps
Mode	Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
Event Trigger	Alarm Input Analog Camera : Video Loss,Motion Detection,Tampering, Network Camera : Camera Event (Sensor,MD,Video analytics),VA event (Tampering,Enter / Exit,Passing,Virtual- line,(Dis)Appear,Face Detection,Audio detection),Defocus camera event,Dynamic camera event
Event Action	e-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Play	Playback Bandwidth Max. 32Mbps (6CH simultaneously)
User	Max. 4 Users (Local 1, Remote 3)
Simultaneous playback	6CH(Local Monitor),6Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web)
Fisheye Dewarping	WEB/CMS
Storage	Supported HDD Up to 6TB
HDD Slot	SATA 2ea(Max 12TB) Performance
Backup	File backup BU, EXE(Include Player), AVI(Webviewer only)
Function	Max. 6 CH play, Date-time/title display
PTZ	Control Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
Smart phone	Support Model iOS, Android
Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
Control	Live(4ch): Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push
Max, Remote Users	Search(3), Live Unicast(10)
Redundancy	ARB Support
Easy configuration	Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
Coaxial Control	CVBS(Pelco-C)/AHD/CVI/TVI
HDMI	1 EA
VGA	1 EA
BNC	4CH In / 1CH Out(Spot Output)
Audio	Out(1EA, RCA, Line)
Ethernet	RJ-45(10/100 BASE-T)
警報	In 4EA, Out 2EA - Relay Out1(NO/NC/COM) - Relay Out2(NO/COM)
USB	2EA(Front USB2.0)
Serial(Protocols)	RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
Power inlet	1EA DC Input Jack
System Control	Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
語言	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai Environmental
工作溫度	0°C to +40°C(+32℉ to +104℉)
工作濕度	20% ~ 85% RH
Certification	UL, CE, FCC, KC Electrical
Power Input	DC12V
功耗	Max. 40W (6TB HDD 2ea)
Color / Material	Black / Metal
尺寸	370.0 x 44.0 x 320.0 mm (14.57 x 1.73 x 12.6 inch)
重量	Approx. 2.3Kg (5.07 lb, 4TB HDD 1ea)
Protocol	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS	Hanwha DDNS
Transmission speed	Analog Camera) (Main Stream) 8MP 8/8fps,5M 12/12fps,4M 15/12fps,2M 30/25fps,720p 30/25fps, 960H/640H 30/25fps (NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH,* The maximum recording frame rate depends on the frame rate of the input camera.
Transmission Bandwidth	Max. 32Mbps
Compression	G.711 (N/W Camera G.711, 726)
Audio Communication	2-Way
Max Remote Users	Search(3), Live Unicast(10), Multicast(20)
安全	IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA)
Viewer Software	SSM, Webviewer, Smart Viewer, Wisenet mobile HRX-435 4CH Pentabrid DVR
CAD	Unit: mm [inch]

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

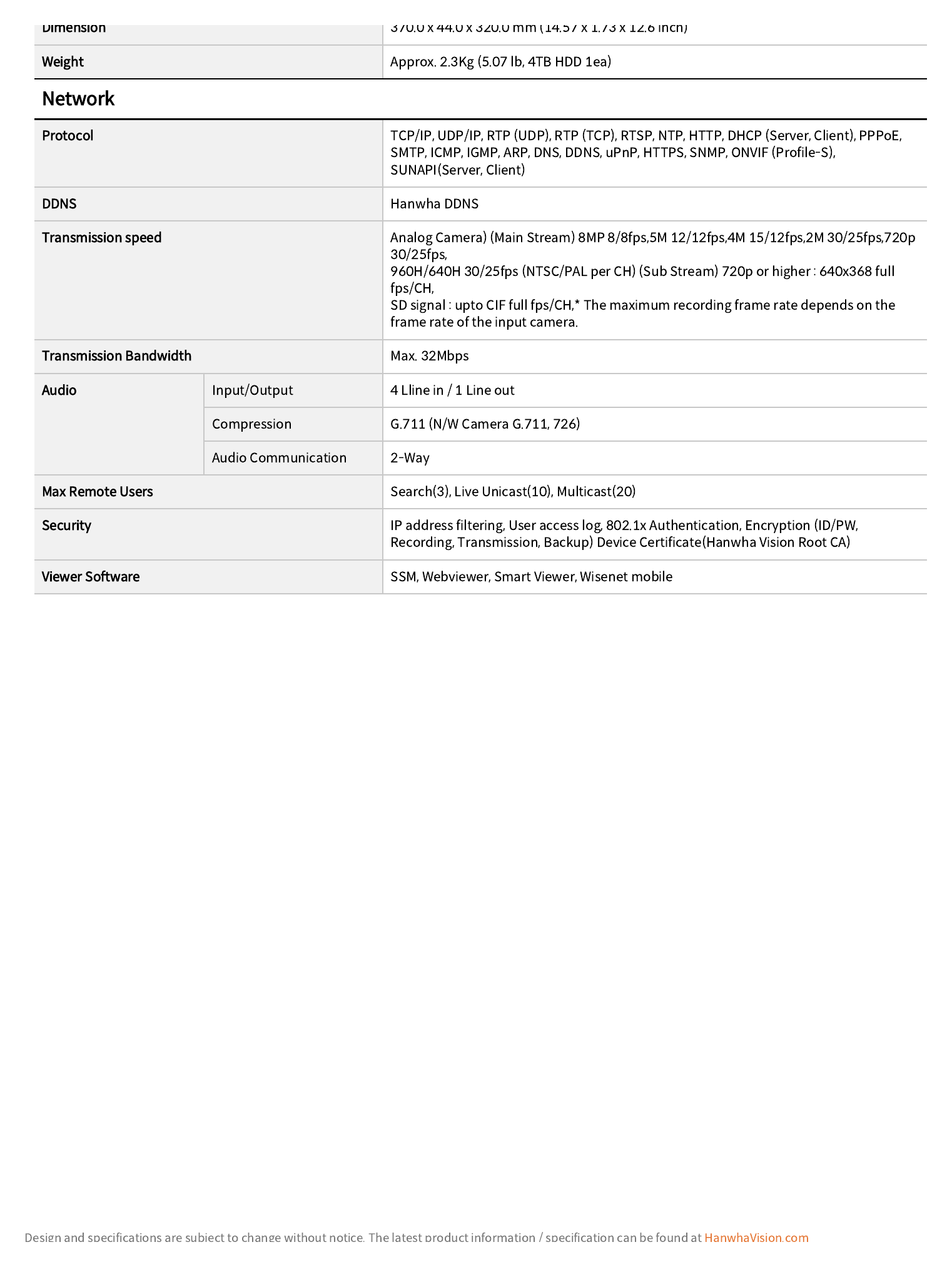

外形尺寸

370.0 x 44.0 x 320.0 mm (14.57 x 1.73 x 12.6 inch)｜重量 Approx. 2.3Kg (5.07 lb, 4TB HDD 1ea)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，HRX-435 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

HRX-435 dahua HRX-435亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

常見問題

HRX-435 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，HRX-435 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

HRX-435 定 IPC-HDBW3541R-ZAS 邊個好？

兩者主要規格分別：Certification方面，HRX-435 係 UL, CE, FCC, KC Electrical，IPC-HDBW3541R-ZAS 係 Accessories；功耗方面，HRX-435 係 Max. 40W (6TB HDD 2ea)，IPC-HDBW3541R-ZAS 係 <8.5W。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
