| SMD Plus | need to invest in a new camera. |
|---|
| effective and accurate alarm. | and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p. |
|---|
| Smart Dual Illuminators | Audio over Coax www.dahuasecurity.com |
|---|
| Technical Specification | Recording Playback 1/4/9/16 |
|---|
| System | Backup Method USB device and network |
|---|
| Main Processor | Industrial-grade processor Instant playback, general playback, event playback, tag Playback Mode playback |
|---|
| 操作系統 | Embedded Linux Alarm |
|---|
| Operating Interface | Web; Local GUI |
|---|
| General Alarm | Motion detection, video loss, tampering |
|---|
| SMD Plus by Recorder | vehicle, reducing false alarms caused by leaves, rain and Record, snapshot (panoramic), IPC external alarm output, |
|---|
| lighting condition change | Alarm Linkage access controller, voice prompt, buzzer, log, preset, email |
|---|
| Audio and Video | Ports 16 channels, BNC: adaptive access by default; HDCVI, 1-channel RCA |
|---|
| Analog Camera Input | Audio Input AHD, TVI and CVBS access can be configured. 16-channel BNC (Coaxial Audio) 1. CVI: 1080p@ 25/30 fps, 720p@25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@25/30 fps Audio Output 1-channel RCA 3. AHD: 1080p@ 25/30 fps, 720p@25/30 fps 4. CVBS: PAL/NTSC Two-way Talk Yes (share the same audio input with the first channel) |
|---|
| Up to 18 channels of IPC access | 2 SATA ports, up to 16 TB. The maximum HDD capacity 2 IP channels by default + 16 channels (analog channels HDD Interface varies with environment temperature. are converted to IP channels) |
|---|
| IP Camera Input | incoming bandwidth: 64 Mbps, recording bandwidth: 64 RS-485 1 port, for PTZ control Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing USB 2 USB ports (USB 2.0) channels,the AI Function(SMD) will be disabled. |
|---|
| 主碼流 | HDMI 1 the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 VGA 1 fps) |
|---|
| Sub steram: | Network Port 1 (10/100 Mbps Ethernet port, RJ-45) CIF (1 fps–7 fps) |
|---|
| Dual-stream | Yes General |
|---|
| 供電 | 12 VDC, 4 A |
|---|
| 視頻碼率 | 32 kbps–6144 kbps |
|---|
| 功耗 | <10 W |
|---|
| Audio Sampling | 8 kHz, 16 bit |
|---|
| 淨重 | 1.61 kg (3.55 lb) |
|---|
| 音訊碼率 | 64 kbps 1 HDMI, 1 VGA Gross Weight 2.86 kg (6.30 lb) HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 375.0 mm × 289.4 mm × 53.0 mm (14.76" × 11.39" × Product Dimensions |
|---|
| Multi-screen Display | 1/4/8/9/16 2.09") (W × D × H) 433.0 mm× 366.0 mm × 141.0 mm (17.05" × 14.41" × |
|---|
| Third-party Camera | ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Packaging Dimensions 5.55" ) (W× D× H) |
|---|
| Access | Canon; Samsung |
|---|
| 工作溫度 | –10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| 工作濕度 | 0%–90% (RH) |
|---|
| 視頻壓縮 | AI Coding; H.265+; H.265; H.264+; H.264 |
|---|
| 安裝 | Desktop |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM FCC: Part 15 Subpart B |
|---|
| Network | Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; EN50130; EN 55024 DNS; DDNS; P2P |
|---|
| Mobile Phone Access | iOS; Android Ordering Information |
|---|
| Interoperability | ONVIF 21.06; CGI Conformant |
|---|
| 類型 | Model Description Chrome |
|---|
| Browser | IE9 or later Firefox 16 Channels 16 Channels Penta-brid 720P 1U Digital DH-XVR4216AN-I |
|---|
| WizSense XVR | Video Recorder |
|---|
| Network Mode | Single-address mode |
|---|
| Record Mode | General, motion detection, alarm www.dahuasecurity.com |
|---|

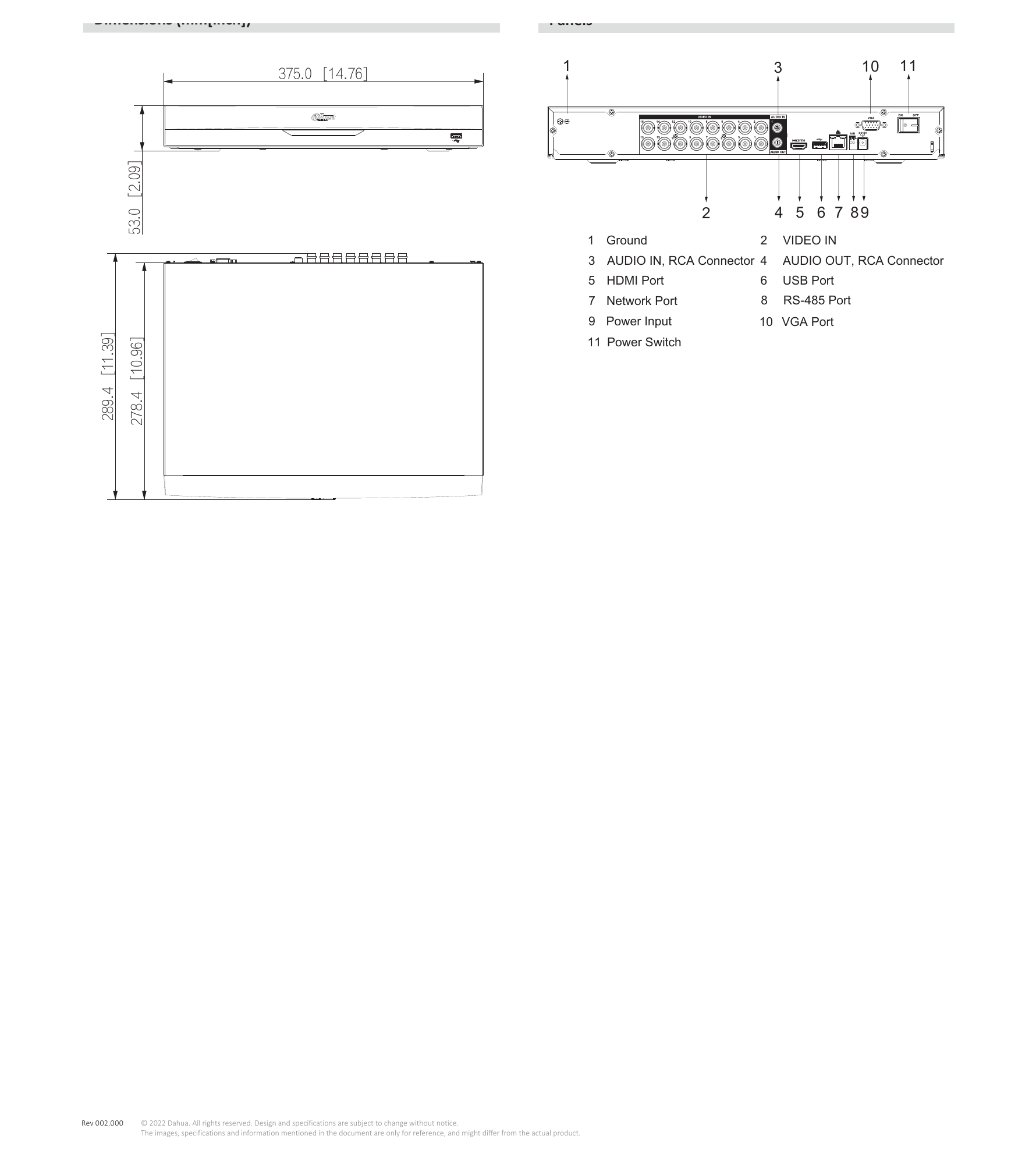

| Dimensions (mm[inch]) | Panels mm[inch] <> 1 3 10 11 <> 2 4 5 6 7 89 1 Ground 2 VIDEO IN 3 AUDIO IN, RCA Connector 4 AUDIO OUT, RCA Connector 5 HDMI Port 6 USB Port 7 Network Port 8 RS-485 Port 9 Power Input 10 VGA Port <> 11 Power Switch <> |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
