HANWHA SCD-2082-ENG-2P CCTV攝影機安裝・保養

Name: HANWHA SCD-2082-ENG-2P SCD-2082
Brand: hanwha
SKU: SCD-2082-ENG-2P

產品簡介

hanwha SCD-2082-ENG-2P 為SCD-2082，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SCD-2082-ENG-2P 香港價格連安裝報價。

SCD-2082N：SCD-2082P
Imaging Device：1/3" Super HAD CCD II
Total Pixels：1,020(H) x 508(V) 1,020(H) x 596(V)
Effective Pixels：976(H) x 494(V) 976(H) x 582(V)
Scanning System：2 : 1 Interlace

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

SCD-2082N	SCD-2082P
Imaging Device	1/3" Super HAD CCD II
Total Pixels	1,020(H) x 508(V) 1,020(H) x 596(V)
Effective Pixels	976(H) x 494(V) 976(H) x 582(V)
Scanning System	2 : 1 Interlace
Synchronization	Internal / Line lock
Frequency	H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution	700TV lines (ER mode)
最低照度	0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
S / N Ratio	52dB (AGC off, Weight on)
Video Output	CVBS : 1.0 Vp-p / 75Ω composite
Focal Length (Zoom Ratio)	2.8 ~ 10mm (3.6x)
Max. Aperture Ratio	1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View	H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Min. Object Distance	0.2m (0.66ft)
鏡頭類型	DC auto iris
Mount Type	Board type Pan / Tilt
Pan Range	0° ~ 352°
Tilt Range	0° ~ 73°
Rotate Range	0° ~ 348° Operational English, French, German, Spanish, Italian, Chinese, English, Japanese, Spanish,
On Screen Display	Russian, Polish, Czech, Romanian, Serbian, Swedish, French, Portuguese, Korean Danish, Turkish, Portuguese
Camera Title	Off / On (Displayed 15 characters)
日夜切換	Auto (Electrical) / Color / B/W
Backlight Compensation	Off / BLC / HLC
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRIII (Off / On)
除霧	Off / Auto / Manual
Motion Detection	Off / On
Privacy Masking	Off / On (8 programmable zones)
Sens-up (Frame Integration)	2x ~ 512x
Gain Control	Off / Low / Middle / High 92.7 (3.65")
Unit : mm (inch)	White Balance ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)
Electronic Shutter Speed	1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Reverse	H-Rev (Off / On)
Communication	Coaxial control (SPC-300 compatible)
Protocol	Coax : Pelco-C (Coaxitron) (3.65") Environmental 92.7 (3.65")
Operating Temperature / Humidity	-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH 92.7 Electrical
Input Voltage / Current	Dual (24V AC & 12V DC ±10%) Ø115.8 (4.56")
Ø115.8 (4.56")	Power Consumption Max. 2.5W
Color / Material	Ivory / Plastic (Dome cover : Clear)
Dimensions (WxHxD)	Ø115.8 x 92.7mm (Ø4.56" x 3.65")

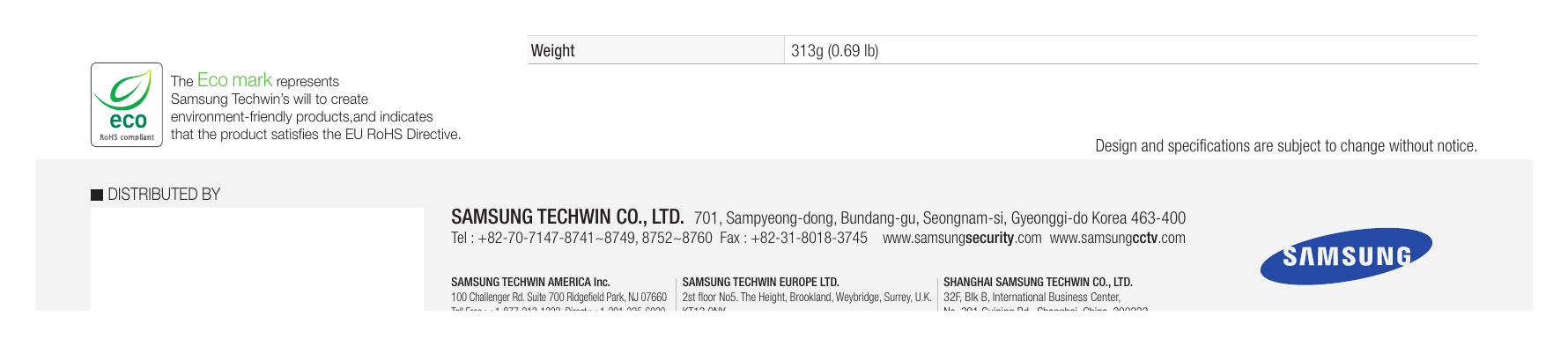

重量	313g (0.69 lb) The Eco mark represents Samsung Techwin’s will to create Ø115.8 (4.56") environment-friendly products,and indicates that the product satisfies the EU RoHS Directive. Design and specifications are subject to change without notice. DISTRIBUTED BY SAMSUNG TECHWIN CO., LTD. 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400 Tel : +82-70-7147-8741~8749, 8752~8760 Fax
SAMSUNG TECHWIN AMERICA Inc.	SAMSUNG TECHWIN EUROPE LTD. SHANGHAI SAMSUNG TECHWIN CO., LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 2st floor No5. The Height, Brookland, Weybridge, Surrey, U.K. 32F, Blk B, International Business Center, Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 KT13 0NY No. 391 Guiping Rd., Shanghai, China, 200233
Fax : +1-201-373-0124	Tel : +44-1932-82-6700 Fax: +44 1932 82 6701 Tel : +86-21-5427-1155 Fax : +86-21-5423-5122
