| Imaging Device | 1/3" Progressive scan CMOS |
|---|
| Total Pixels | 2,010(H) x 1,108(V), 2.2M pixels |
|---|
| Effective Pixels | 1,944(H) x 1,092(V), 2.1M pixels |
|---|
| Scanning System | Progressive Color : 1Lux@F1.2, 0.015Lux (Sens-up, 60x) Min. Illumination B/W : 0Lux (IR LED on) |
|---|
| S / N Ratio | 50dB (AGC off, Weight on) |
|---|
| Video Output | SMPTE292M (HD-SDI) |
|---|
| Focal Length (Zoom Ratio) | 3 ~ 8.5mm (2.8x) motorized varifocal |
|---|
| Max. Aperture Ratio | F1.2 |
|---|
| Angular Field of View | H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele) |
|---|
| Min. Object Distance | 0.5m (1.64ft) |
|---|
| 鏡頭類型 | DC auto iris |
|---|
| Mount Type | Board-in type Operational English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish, Danish, Portuguese, On Screen Display Japanese, Serbian, Czech, Romanian, Turkish |
|---|
| Camera Title | Off / On (Displayed up to 15 characters) |
|---|
| 日夜切換 | Auto (ICR) / External / Color / B/W |
|---|
| Backlight Compensation | Off / User BLC / HLC / WDR |
|---|
| 寬動態 WDR | 100dB |
|---|
| Contrast Enhancement | SSDR (Off / On) |
|---|
| Digital Noise Reduction | SSNRIII (Off / On) |
|---|
| Digital Image Stabilization | Off / On |
|---|
| Motion Detection | Off / On |
|---|
| Privacy Masking | Off / On (4ea polygonal + 16ea rectangular zones) |
|---|
| Sens-up (Frame Integration) | 2x ~ 60x |
|---|
| Gain Control | Off / Low / Medium / High |
|---|
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) |
|---|
| Electronic Shutter Speed | ESC / A.FLK / Manual |
|---|
| Digital Zoom | Off / On (1x ~ 16x) |
|---|
| Reverse | Off / H-Rev / V-Rev / HV-Rev |
|---|
| Profile | Built-in |
|---|
| PIP | Off / On |
|---|
| Intelligent Video Analytics | Tampering, Virtual line, Enter/Exit, Appear / Disappear |
|---|
| 警報 | (MD) output 1, External D/N in 1 |
|---|

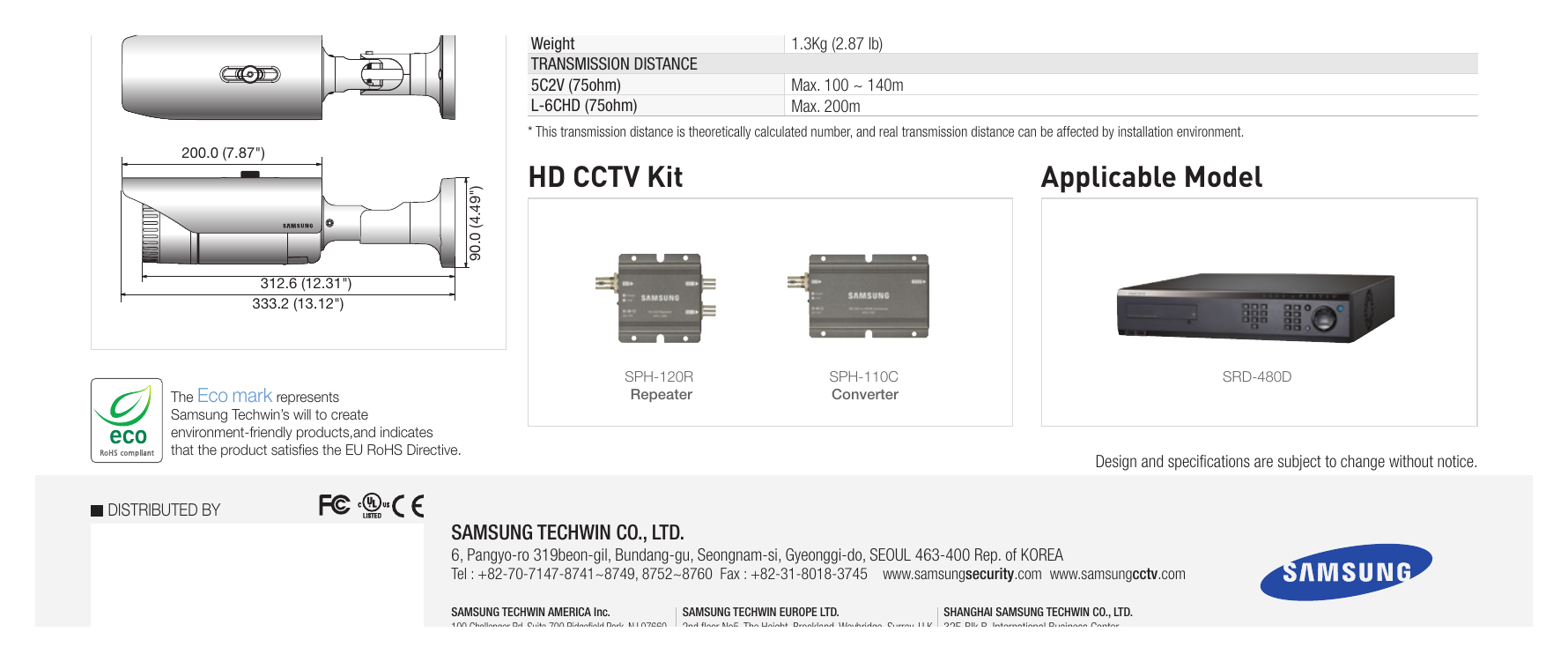

| 尺寸 | Remote Control Interface Unit : mm (inch) Protocol RS-485 RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE 200.0 (7.87") IR Distance 30m (98.34ft, IR LED : 20ea) Environmental 96.8 (3.78") |
|---|
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH (3.81") 90.0 (4.49") |
|---|
| 防護等級 | IP66 grade Electrical 96.0 |
|---|
| Input Voltage / Current | Dual (24V AC & 12V DC ±10%) |
|---|
| 供電 | Consumption 312.6 (12.31") Max. 6W 90.4 90.4 (3.56") (3.56") Mechanical 333.2 (13.12") |
|---|
| Color / Material | Dark gray / Aluminium |
|---|
| Dimensions (WxHxD) | 90.4 x 96.0 x 333.2mm (3.56" x 3.78" x 13.12") |
|---|
| 重量 | 1.3Kg (2.87 lb) Transmission Distance 5C2V (75ohm) Max. 100 ~ 140m |
|---|
| L-6CHD (75ohm) | Max. 200m * This transmission distance is theoretically calculated number, and real transmission distance can be affected by installation environment. 200.0 (7.87") 200.0 (7.87") |
|---|
| HD CCTV Kit | Applicable Model 90.0(4.49") 96.8 (3.81") 90.0 (4.49") 312.6 312.6(12.31") (12.31") 333.2 (13.12") (13.12") |
|---|
| SPH-120R | SPH-110C SRD-480D |
|---|
