| Imaging Device | 1/3" Super HAD PS CCD |
|---|
| Total Pixels | 811(H) x 508(V) 795(H) x 596(V) |
|---|
| Effective Pixels | 768(H) x 494(V) 752(H) x 582(V) |
|---|
| Scanning System | Progressive (If WDR on, Interlaced scan) |
|---|
| Frequency | H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz |
|---|
| Horizontal Resolution | Color : 600TV lines Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x) Min. Illumination B/W : 0.04Lux (F1.2, 50IRE), 0.0001Lux (Sens-up 512x) |
|---|
| S / N Ratio | 52dB |
|---|
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite |
|---|
| 鏡頭類型 | Manual / DC auto iris |
|---|
| Mount Type | C / CS Operational |
|---|
| Camera Title | Off / On (Displayed up to 15 characters) |
|---|
| 日夜切換 | Auto (ICR) / Color / B/W / External B/W |
|---|
| Backlight Compensation | Off / BLC / WDR |
|---|
| 寬動態 WDR | 52dB 54dB |
|---|
| * Lens not included | Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On) |
|---|
| Digital Noise Reduction | Motion adaptive 2D+3D noise filter (Off / Low / Middle / High / User) |
|---|
| Digital Image Stabilization | Off / On |
|---|
| Motion Detection | Off / On (4 programmable zones) |
|---|
| Privacy Masking | Off / On (12 polygonal programmable zones, 4 point polygonal method) |
|---|
| Sens-up (Frame Integration) | Off / Auto (2x ~ 512x) |
|---|
| Gain Control | AGC (Low / Middle / High) |
|---|
| Key Features | White Balance ATW1 / ATW2 / AWC / 3200°K / 5600°K |
|---|
| Electronic Shutter Speed | Off / Auto (1/60 ~ 1/10,000sec) Off / Auto (1/50 ~ 1/10,000sec) |
|---|
| • Max. 30(25)fps at 4CIF resolution | Flip / Mirror Off / On |
|---|
| Intelligent Video Analytics | Tampering, Motion detection |
|---|
| • H.264, MPEG-4, MJPEG multiple codec | Alarm I/O Input 1ea / Output 1ea (Relay) |
|---|
| Remote Control Interface | RS-485 |
|---|
| • Multiple streaming | RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin |
|---|
| • Tampering | Ethernet RJ-45 (10/100BASE-T) |
|---|
| Video Compression Format | H.264, MPEG-4, MJPEG |
|---|
| Max. Framerate | 30fps 25fps H.264, MPEG-4 : Compression level, Target bitrate level control Video Quality Adjustment MJPEG : Quality level control |
|---|
| Bitrate Control Method | H.264, MPEG-4 : CBR or VBR, MJPEG : VBR |
|---|
| 尺寸 | Unit : mm (inch) |
|---|
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
|---|
| Audio I/O | Mic / Line in, Line out |
|---|
| Audio Compression Format | G.711 u-law |
|---|
| Audio Communication | Bi-directional audio SD CARD |
|---|
| AUDIO OUT AUDIO IN | IP IPv4, IPv6 SD SYSTEM POWER TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS |
|---|
| VIDEO | RESET 1 2 3 4 5 NETWORK HTTPS(SSL) login authentication, Digest login authentication Security 1,2 : ALARM IN 1,2 3 : GND 4,5 : ALARM OUT 1,2 |
|---|
| ACT | LINK GND AC 24V DC 12V IP address filtering, User access log, 802.1x authentication |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Max. User Access | 10 users at unicast mode |
|---|
| Memory Slot | SD/SDHC memory slot |
|---|
| ONVIF Conformance | Yes (Profile S) (2.36") 60.0 (2.36") English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, |
|---|
| Webpage Language | Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish 60.0 Supported OS : Windows XP / VISTA / 7, MAC OS Web Viewer Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari |
|---|
| Central Management Software | SmartViewer 72.0 72.0 (2.83") (2.83") 136.8 (5.39") 136.8 (5.39") Environmental |
|---|
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / 20% ~ 80% RH |
|---|
| Storage Temperature / Humidit | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Electrical |
|---|
| Input Voltage / Current | 12V DC, 24V AC, PoE (IEEE802.3af) |
|---|
| 功耗 | Max. 6W |
|---|
| Color / Material | Silver / Metal |
|---|

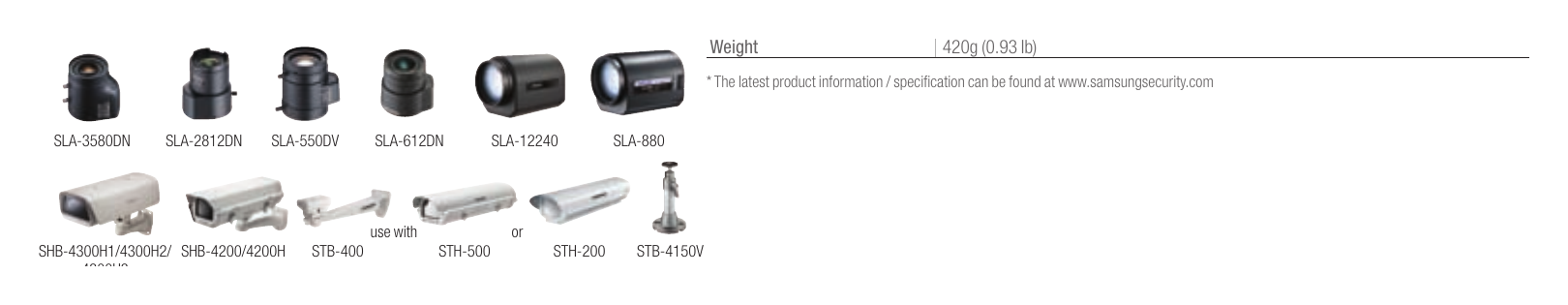

| Available Lenses / Accessories (Optional) | Dimensions (WxHxD) 72.0 x 60.0 x 136.8mm (2.83" x 2.36" x 5.39") |
|---|
| 重量 | 420g (0.93 Ib) * The latest product information / specification can be found at www.samsungsecurity.com |
|---|
| SLA-3580DN | SLA-2812DN SLA-550DV SLA-612DN SLA-12240 SLA-880 |
|---|
| use with | or |
|---|
| SHB-4300H1/4300H2/ SHB-4200/4200H | STB-400 STH-500 STH-200 STB-4150V 4300H3 REVISED 03-2014 |
|---|
