| Imaging Device | 1/3" Super HAD PS CCD |
|---|
| Total Pixels | 811(H) x 508(V) 795(H) x 596(V) |
|---|
| Effective Pixels | 768(H) x 494(V) 752(H) x 582(V) |
|---|
| Scanning System | Progressive (If WDR on, Interlaced scan) |
|---|
| Frequency | H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz |
|---|
| Horizontal Resolution | Color : 600TV lines |
|---|
| 最低照度 | Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x) B/W : 0.04Lux (F1.2, 50IRE), 0.0001Lux (Sens-up 512x) |
|---|
| S / N Ratio | 52dB |
|---|
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite |
|---|
| Focal Length (Zoom Ratio) | 2.8 ~ 11mm (3.9x) varifocal |
|---|
| Max. Aperture Ratio | F1.2 |
|---|
| Angular Field of View | H : 94.6°(Wide) ~ 28.8°(Tele) / V : 68.4°(Wide) ~ 21.6°(Tele) |
|---|
| 鏡頭類型 | DC auto iris |
|---|
| Mount Type | Board-in type Pan / Tilt / Rotate |
|---|
| Pan Range | 0° ~ 355° |
|---|
| Tilt Range | 0° ~ 90° |
|---|
| Rotate Range | 0° ~ 355° Operational |
|---|
| Camera Title | Off / On (Displayed up to 15 characters) |
|---|
| 日夜切換 | Auto (ICR) / Color / B/W / External B/W |
|---|
| Backlight Compensation | Off / BLC / WDR |
|---|
| 寬動態 WDR | 52dB 54dB |
|---|
| Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) |
|---|
| Digital Noise Reduction | Motion adaptive 2D+3D noise filter (Off / Low / Middle / High / User) |
|---|
| Key Features | Digital Image Stabilization Off / On |
|---|
| Motion Detection | Off / On (4 programmable zones) |
|---|
| • Max. 30(25)fps at 4CIF resolution | Privacy Masking Off / On (12 polygonal programmable zones, 4 point polygonal method) |
|---|
| Sens-up (Frame Integration) | Off / Auto (2x ~ 512x) |
|---|
| • 2.8 ~ 11mm (3.9x) varifocal lens | Gain Control AGC (Low / Middle / High) |
|---|
| White Balance | ATW1 / ATW2 / AWC / 3200°K / 5600°K |
|---|
| • H.264, MPEG-4, MJPEG multiple codec | Electronic Shutter Speed Off / Auto (1/100 ~ 1/10,000sec) Off / Auto (1/120 ~ 1/10,000sec) |
|---|
| • Multiple streaming | Flip / Mirror Off / On |
|---|
| Intelligent Video Analytics | Tampering |
|---|
| • Tampering | Alarm I/O Input 1ea / Output 1ea (Relay) |
|---|
| Video Compression Format | H.264, MPEG-4, MJPEG |
|---|
| 解像度 | 704 x 480, 640 x 480, 352 x 240, 320 x 240 704 x 576, 640 x 480, 352 x 288, 320 x 240 |
|---|
| Max. Framerate | 30fps 25fps H.264, MPEG-4 : Compression level, Target bitrate level control |
|---|
| 尺寸 | Unit : mm (inch) Video Quality Adjustment MJPEG : Quality level control |
|---|
| Bitrate Control Method | H.264, MPEG-4 : CBR or VBR, MJPEG : VBR Ø160.0 (6.3") |
|---|
| Streaming Capability | Multiple streaming (Up to 10 profiles) Ø160.0 (6.3") |
|---|
| Ø160.0 (6.3") | Audio I/O Mic / Line in, Line out |
|---|
| Audio Compression Format | G.711 u-law |
|---|
| Audio Communication | Bi-directional audio |
|---|
| IP | IPv4, IPv6 (5.3") TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE (5.3") (5.3") FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS 134.5 HTTPS(SSL) login authentication, Digest login authentication 134.5 134.5 Security IP address filtering, User access log, 802.1x authentication |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Max. User Access | 10 users at unicast mode |
|---|
| Memory Slot | SD/SDHC memory slot Ø160.0 (6.3") |
|---|
| Webpage Language | Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian (4.92") (4.92") |
|---|
| Flush Type | Supported OS : Windows XP / VISTA / 7, MAC OS (4.92") Web Viewer Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari 125.0 125.0 |
|---|
| Central Management Software | SmartViewer 125.0 Environmental |
|---|
| Operating Temperature / | 24V AC : -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH (Heater on) |
|---|
| Humidity | 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH (Heater off) |
|---|
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | IK10 Electrical |
|---|
| Input Voltage / Current | 12V DC, 24V AC, PoE (IEEE802.3af) |
|---|
| 功耗 | Max. 6W (Heater off), Max. 11W (Heater on) * Heater works at AC input only |
|---|

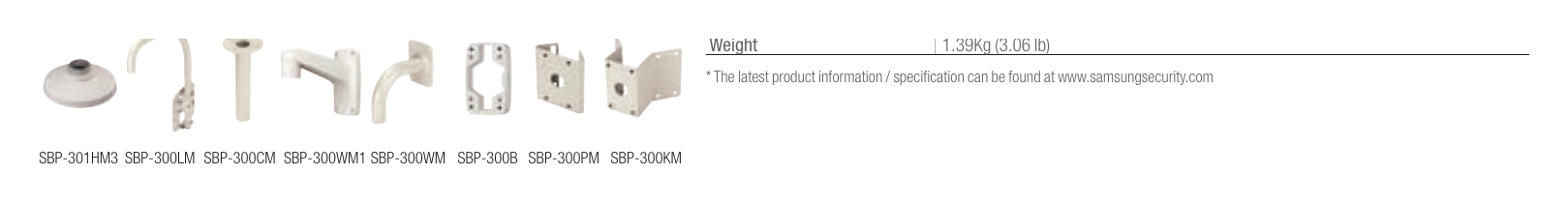

| Accessories (Optional) | Mechanical |
|---|
| Color / Material | Ivory / Aluminum |
|---|
| Dimensions (WxH) | Ø160.0 x 134.5mm (Ø6.3" x 5.3") |
|---|
| 重量 | 1.39Kg (3.06 lb) * The latest product information / specification can be found at www.samsungsecurity.com REVISED 03-2014 |
|---|
