| Network IR Dome Camera | Imaging Device 1/2.8" PS Exmor 2.38M CMOS |
|---|
| Total / Effective Pixels | 1,952(H) x 1,116(V) / 1,944(H) x 1,104(V) |
|---|
| Scanning System | Progressive |
|---|
| 最低照度 | Color : 0.1Lux (1/30sec, F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE), B/W : 0Lux (IR LED on) |
|---|
| S / N Ratio | 50dB |
|---|
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation DIP connector type |
|---|
| Focal Length (Zoom Ratio) | 3 ~ 8.5mm (2.8x) motorized varifocal |
|---|
| Max. Aperture Ratio | F1.2 |
|---|
| Angular Field of View | H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele) |
|---|
| Min. Object Distance | 0.5m (1.64ft) |
|---|
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
|---|
| Lens / Mount Type | DC auto iris / Board-in type Pan / Tilt / Rotate |
|---|
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° Operational |
|---|
| IR LED | 12ea |
|---|
| Viewable Length | 15m (49.21ft) |
|---|
| Camera Title | Off / On (Displayed up to 45 characters) |
|---|
| 日夜切換 | Auto (ICR) / Color / B/W / External / Schedule |
|---|
| Backlight Compensation | Off / BLC |
|---|
| 寬動態 WDR | 120dB |
|---|
| Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) |
|---|
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
|---|
| Digital Image Stabilization | Off / On |
|---|
| 除霧 | Off / Auto / Manual |
|---|
| Motion Detection | Off / On (4ea 4points polygonal zones) |
|---|
| Privacy Masking | Off / On (32zones with 4points of polygonal) |
|---|
| Key Features | Gain Control Off / Low / Middle / High |
|---|
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
|---|
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
|---|
| • Max. 2M (1920 x 1080) resolution | Flip / Mirror Off / On |
|---|
| Alarm I/O | Input 1ea / Output 1ea Video analytics, Network disconnection, Alarm input |
|---|
| • WDR (120dB) | File upload via FTP and E-mail, Notification via E-mail, TCP, |
|---|
| Alarm Events | Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), |
|---|
| • Audio / Face / Motion detection | External output |
|---|
| • Simple focus, UPnP, Defog | Ethernet RJ-45 (10/100BASE-T) |
|---|
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
|---|
| • SD/SDHC/SDXC memory slot | Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
|---|
| • Multi-crop streaming, PoE, IP66, IK10 | H.264 : Max. 60fps at all resolutions |
|---|
| Max. Framerate | MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps |
|---|
| Video Quality Adjustment | H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control |
|---|
| Bitrate Control Method | H.264 : CBR or VBR, MJPEG : VBR |
|---|
| Streaming Capability | Multiple streaming (Up to 10 profiles) Selectable (Mic in / Line in), Max output level : 1 Vrms |
|---|
| 尺寸 | Unit : mm (inch) Audio In Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
|---|
| Audio Out | Line out (3.5mm stereo mini jack) |
|---|
| Audio Compression Format | G.711 u-law /G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps |
|---|
| Audio Communication | Bi-directional audio |
|---|
| IP | IPv4, IPv6 |
|---|
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour 118.5 (4.67") (4.67") |
|---|
| 安全 | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication 118.5 |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Max. User Access | 15 users at unicast mode |
|---|
| Memory Slot | Micro SD/SDHC/SDXC Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded Application Programming Interfac ONVIF profile S, HTTP API v2.0, SVNP 1.2 English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, |
|---|
| Ø100.0 | (3.94") |
|---|
| Ø100.0 (3.94") | Ø160.0 (6.3") Ø160.0 (6.3") |
|---|
| Webpage Language | Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7), |
|---|
| Web Viewer | Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9), Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15), |
|---|
| Accessories (Optional) | Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only Central Management Software SmartViewer Environmental |
|---|
| Operating Temperature / | 24V AC : -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
|---|
| SBP-300B | SBP-300PM Humidity 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | IK10 Electrical |
|---|
| Input Voltage / Current | 12V DC, 24V AC, PoE (IEEE802.3af) |
|---|

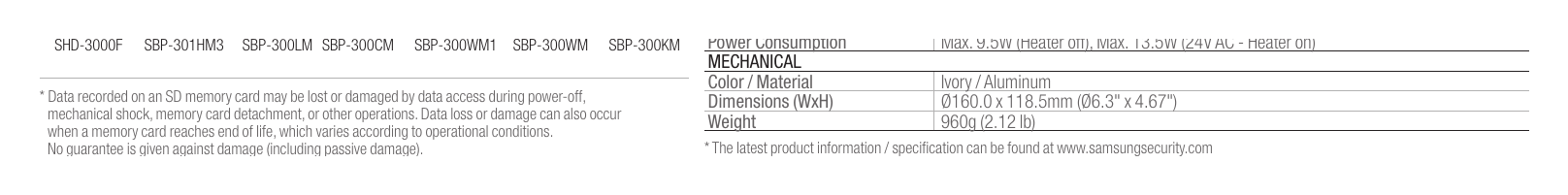

| SHD-3000F | SBP-301HM3 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Power Consumption Max. 9.5W (Heater off), Max. 13.5W (24V AC - Heater on) |
|---|
| Color / Material | Ivory / Aluminum mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies according to operational conditions. |
|---|
| 重量 | 960g (2.12 lb) No guarantee is given against damage (including passive damage). * The latest product information / specification can be found at www.samsungsecurity.com REVISED 03-2014 |
|---|
