| Ethernet | RJ-45 (10/100/1000BASE-T) |
|---|
| Video Compression Format | H.264, MPEG-4, MJPEG H.264 : Single view - up to 2M pixel / Quad view - up to 720p MPEG-4 : Single view - up to 4CIF / Quad view - Quad up to 4CIF |
|---|
| 解像度 | MJPEG : Single vIew - up to 720p (800 x 600) / Quad vIew - up to 720p (800 x 600) 1920 x 1080p, 1280 x 1024, 1280 x 720p, 704 x 576, 704 x 480, 640 x 480, 352 x 288, 352 x 240, 320 x 240 |
|---|
| Max. Framerate | Max. 30fps at single view, Max. 120fps at 4 x 4CIF, Max. 60fps at 4 x 720p (No audio) |
|---|
| Key Features | Display Single view, Quad view |
|---|
| Audio I/O | Line out 1ea |
|---|
| Audio Compression Format | G.711 |
|---|
| • Full HD (1080p) video output | IP IPv4, IPv6 |
|---|
| • Single and quad view | Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), NTP, HTTP, DHCP, ICMP, IGMP, ARP, SSL, DNS |
|---|
| 安全 | HTTPS(SSL) login authentication, User access log |
|---|
| Camera Registration | 20 camera, 8 layout, 10 sequence Samsung : Network camera, Encoder Axis : P3301, P3343, P3344, P1311, P1343, P1344, P1346, PTZ215, |
|---|
| Support Device | Q6032, Q7401, Q7404 (F/W ver : 5.x) Stream (Live video / audio) : SVNP1.2 (AXIS : RTP/RTSP) Control / Network alarm : SNVP1.2 (AXIS : Not supported) |
|---|
| 尺寸 | Unit : mm (inch) Web Viewer Supported OS : Windows XP Supported Browser : Internet Explorer 7.0 or 8.0, Firefox 2.x, 3.x, Chrome, Safari Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 0% ~ 90% RH Electrical |
|---|
| Input Voltage / Current | 12V DC |
|---|
| 功耗 | Max.10W (7") 178.0 (7") 178.0 |
|---|
| Color / Material | Silver / Metal |
|---|

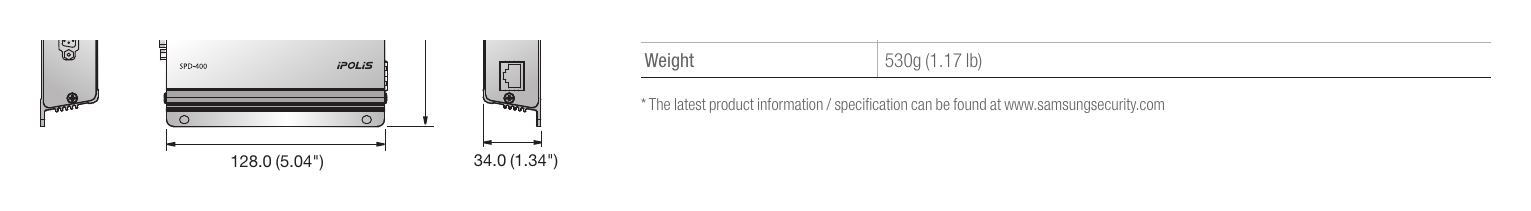

| Dimensions (WxHxD) | 128.0 x 34.0 x 178.0mm (5.04" x 1.34" x 7") |
|---|
| 重量 | 530g (1.17 lb) * The latest product information / specification can be found at www.samsungsecurity.com 128.0 128.0 (5.04") (5.04") 34.0 (1.34") 34.0 (1.34") REVISED 03-2012 |
|---|
