| Inputs | 8 HD-SDI SMPTE292M,16 Composite video 0.5-1 Vp-p, 75 ohm automatic termination |
|---|
| Video | NTSC : 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / Resolution PAL : 1920 x 1080, 1280 x 720, 960 x 576, 704 x 576 |
|---|
| Frame Rate | NTSC : 480fps / PAL : 400fps NTSC : 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / |
|---|
| Live | Resolution PAL : 1920 x 1080, 1280 x 720, 960 x 576, 704 x 576 |
|---|
| Multi Screen Display | 1 / 4 / 7 / 13 / 16 / 16A / Sequence / PIP Performance |
|---|
| Operating System Embedded | Linux |
|---|
| Compression | H.264 NTSC : Up to 240fps@1920 x 1080 / PAL : Up to 200fps@1920 x 1080 NTSC : Up to 240fps@1280 x 720 / PAL : Up to 200fps@1280x720 NTSC : Up to 480fps@960 x 480 / PAL : Up to 400fps@960 x 576 Record Rate NTSC : Up to 480fps@704 x 480 / PAL : Up to 400fps@704 x 576 NTSC : Up to 480fps@704 x 240 / PAL : Up to 400fps@704 x 288 |
|---|
| Recording | NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288 NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30 fps) Mode PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps) 396.0 (15.59") 396.0 (15.59") 389.1 (15.32") 389.1 (15.32") |
|---|
| Event | Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1~3) |
|---|
| Overwrite Modes | Continuous |
|---|
| Pre-alarm | Up to 30sec (5, 10, 20, 30sec) |
|---|
| Post-alarm | Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour) |
|---|
| Search Mode | Date/Time, Event, Back up, POS, Motion (*All search include preview function) |
|---|
| Search & | Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only |
|---|
| 尺寸 | Unit : mm (inch) Playback Playback Function Slow forward / backward (1/2x, 1/4x, 1/8x) Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only 440.0 (17.32") 440.0 (17.32") Option 1) 1M ~ 2M (NTSC : 240fps, PAL : 200fps, 4CIF (NTSC : 480fps, PAL : 400fps) Transmission Speed Option 2) 4CIF / 2CIF / CIF (NTSC : 120 / 240 / 480fps, PAL : 100 / 200 / 400fps) |
|---|
| Bandwidth | Up to 64Mbps |
|---|
| Bandwidth Control | Selectable |
|---|
| Stream | H.264 (4CIF / 2CIF / CIF selectable) |
|---|
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
|---|
| Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP 88.0(3.46") 95.9(3.78") |
|---|
| Monitoring | NET-i viewer, SmartViewer, Webviewer (3.46") (3.78") 88.0 (3.46") 95.9 (3.78") |
|---|
| 管理平台 | Android, iOS |
|---|
| Smart Phone | Protocol Support RTP, RTSP, HTTP, CGI 88.0 95.9 |
|---|
| Internal HDD | Up to 4 SATA HDDs |
|---|
| External (e-SATA Interface) | Up to 2 expansion bay (*Model : SVS-5R/5E) |
|---|
| Storage | DVD Writer (Back up) Yes |
|---|
| USB (Back up) | 2 USB ports |
|---|
| File Format (Back up) | BU (DVR player), EXE (Include player), AVI |
|---|
| Password Protection | 1 Admin, 10 Group, 10 User per 1 group (15.594") Security 389.1(15.32") (15.59") 396.0 (15.59") |
|---|
| Data Authentication | Watermark (15.32") 389.1 (15.32") 396.0396.0 |
|---|
| VGA | 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080) 389.1 |
|---|
| Monitors | HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080) |
|---|
| Spot Composite | Digital spot (2CH) *Incldued OSD on screen, multi mode support (1CH) |
|---|
| Inputs / Output | 16CH line in (Built-in 4CH, option : audio extension cable) / 1CH line out |
|---|
| Audio | Compression G.711 |
|---|
| 取樣率 | 8KHz Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC), 440.0 440.0 (17.32") (17.32") Inputs / Output 440.0 (17.32") |
|---|
| 警報 | Rating : 30V DC / 2A, 250V AC / 0.25A |
|---|
| Remote Notification | Notification via e-mail |
|---|
| Ethernet | 1 RJ-45 10/100/1000 Base-T |
|---|
| Serial Interface | RS-232/RS-485 for PTZ, Samsung system keyboard |
|---|
| USB | USB 2.0, 2 ports (Front) |
|---|
| eSATA | 2 External SATA ports Connections |
|---|
| Application Support | Mouse, Remote controller 88.0 (3.46") 95.9 (3.78") 88.0 (3.46") 95.9 (3.78") Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, |
|---|
| Input Voltage / Current | 100 ~ 240V AC ±10%, 50/60Hz, Autoranging Electrical |
|---|
| 功耗 | Max. 60W (With 1x HDD) |
|---|
| Environmental | Operating Temperature / Humidity +0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH |
|---|

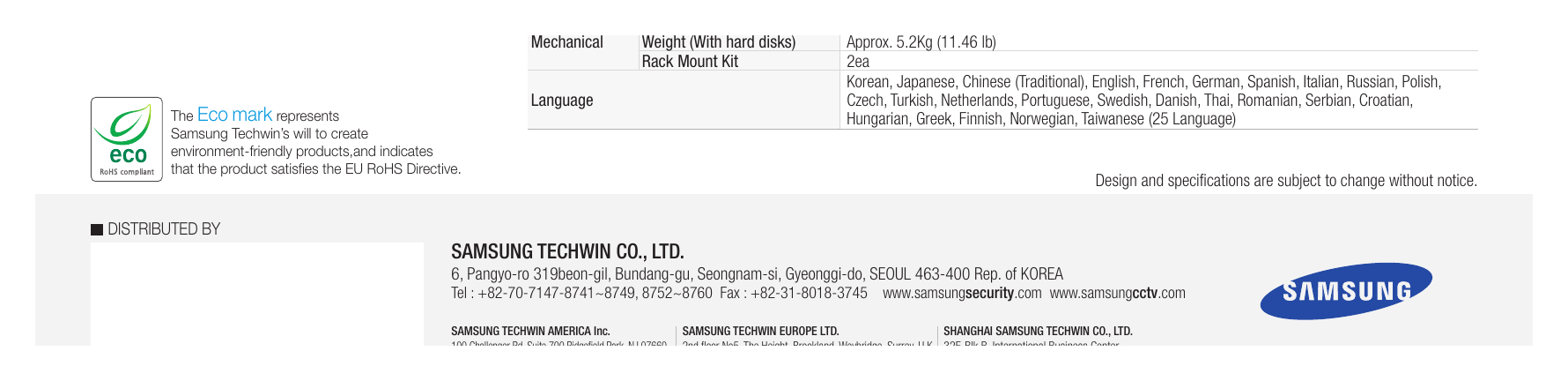

| Dimensions (WxHxD) | 440.0 x 88.0 x 389.1mm (17.32" x 3.46" x 15.32") |
|---|
| Mechanical | Weight (With hard disks) Approx. 5.2Kg (11.46 lb) |
|---|
| Rack Mount Kit | 2ea Korean, Japanese, Chinese (Traditional), English, French, German, Spanish, Italian, Russian, Polish, |
|---|
| 語言 | Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Romanian, Serbian, Croatian, |
|---|
