| Inputs | 4 composite video 0.5–1 Vpp, 75 ohm |
|---|
| 解像度 | NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576 |
|---|
| Frame Rate | NTSC : 120fps / PAL : 100fps |
|---|
| Live | Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576 |
|---|
| Multi Screen Display | 1 / 4 / Sequence / PIP Performance |
|---|
| Operating System Embedded | Linux |
|---|
| Compression | H.264 NTSC : Up to 120fps@960 x 480 / PAL : Up to 100fps@960 x 576 NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576 Record Rate NTSC : Up to 120fps@704 x 240 / PAL : Up to 100fps@704 x 288 NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288 |
|---|
| Recording | NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post) Mode PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post) |
|---|
| Event | Video loss, Motion (Level 1 ~ 10), Alarm |
|---|
| Overwrite Modes | Selectable (Stop / Continuous) |
|---|
| Pre-alarm | Up to 5sec |
|---|
| Post-alarm | Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour) |
|---|
| Search Mode | Date/Time, Event (Alarm / Motion), Back up, POS (*All search include preview function) Search & Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only |
|---|
| Playback | Playback Function Slow forward / backward (1/2x, 1/4x, 1/8x) |
|---|
| Transmission Speed | CIF (NTSC : 120fps, PAL : 100fps) |
|---|
| Bandwidth | Up to 8Mbps, Unlimited 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps |
|---|
| Bandwidth Control | Automatic |
|---|
| Network | Stream H.264 (CIF) |
|---|
| 尺寸 | Unit : mm (inch) Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20 |
|---|
| Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP |
|---|
| Monitoring | Webviewer, CMS (SmartViewer, Net-I) |
|---|
| 管理平台 | Android, iOS |
|---|
| Smart Phone | Protocol Support RTP, RTSP, HTTP, CGI |
|---|
| Max. Remote Users | Live 1 |
|---|
| Internal HDD | Up to 1 SATA HDD |
|---|
| Storage | USB (Back up) 2 USB ports (9.25") 224.0 (8.82") (8.82") 235.0 (9.25") |
|---|
| File Format (Back up) | BU (DVR player), EXE (Include player), AVI |
|---|
| Password Protection | 1 Admin, 10 Group, 10 User per 1 group Security 235.0 224.0 |
|---|
| Data Authentication | Watermark |
|---|
| VGA | 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080) |
|---|
| Monitors | HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080) |
|---|
| Spot Composite | Digital spot (1CH) *Incldued OSD on screen, multi mode support 315.0 (12.4") 315.0 (12.4") Inputs / Output 4CH line in / 1CH line out |
|---|
| Audio | Compression G.711 |
|---|
| 取樣率 | 8KHz |
|---|
| Inputs / Output | Terminal 4 inputs (NO/NC) / Terminal 2 relay outputs (NO), Rating : 24V DC / 1A, 125V AC / 0.5A Alarm (2.05") |
|---|
| Remote Notification | Notification via e-mail 52.0 (2.05") (2.24") 57.0 (2.24") |
|---|
| Ethernet | 1 RJ-45 10/100 Base-T 52.0 |
|---|
| Serial Interface | RS-485 (Half) for PTZ, System keyboard, RS-232 support for POS interface (VSI-pro) 57.0 |
|---|
| USB | USB 2.0, 2 ports (Front / Rear) Connections |
|---|
| Application Support | Mouse, Remote controller |
|---|
| RS-485 Protocol | Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO |
|---|
| Coax Protocol | Samsung CCVC, Pelco-C |
|---|
| Input Voltage / Current | 12V DC adaptor, 3A, 100 ~ 250V AC, 50/60Hz, 36watt Electrical |
|---|
| 功耗 | Max. 19W (With 1x HDD) |
|---|
| 工作溫度 | +0°C ~ +40°C (+32°F ~ +104°F) Environmental |
|---|
| 工作濕度 | 20% ~ 85% RH |
|---|
| Dimensions (WxHxD) | 315.0 x 52.0 x 224.0mm (12.4" x 2.05" x 8.82") |
|---|

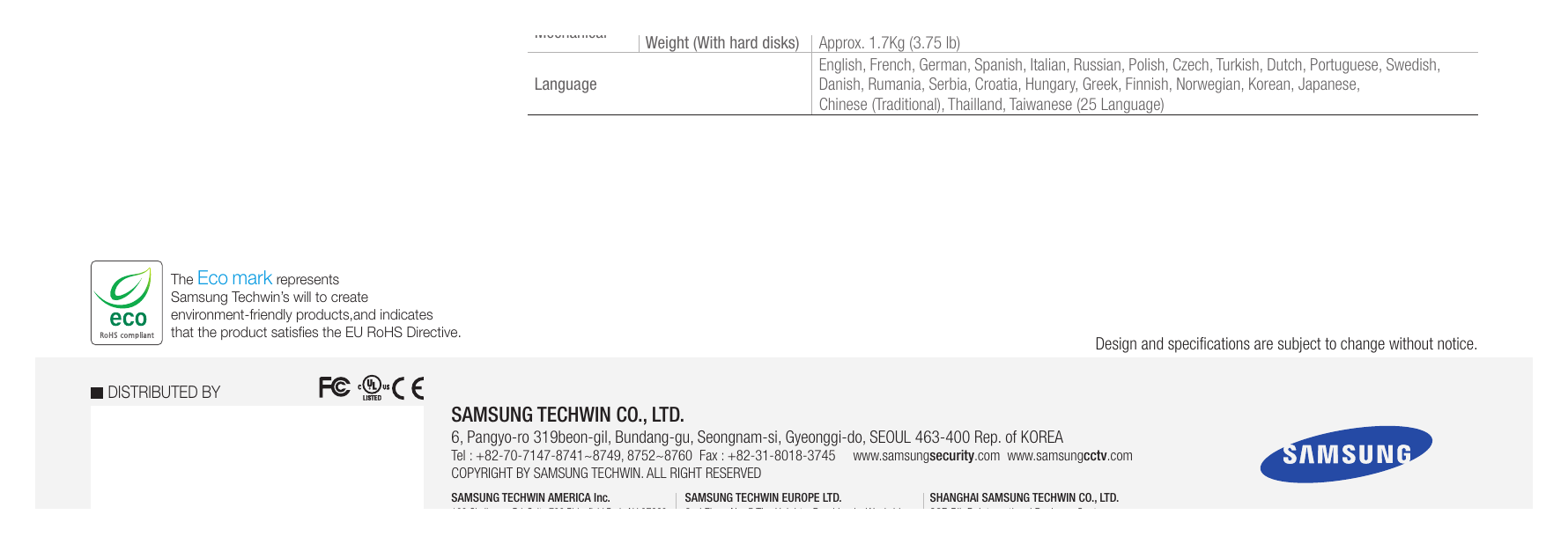

| Weight (With hard disks) | Approx. 1.7Kg (3.75 lb) English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Dutch, Portuguese, Swedish, |
|---|
| 語言 | Danish, Rumania, Serbia, Croatia, Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thailland, Taiwanese (25 Language) The Eco mark represents Samsung Techwin’s will to create environment-friendly products,and indicates that the product satisfies the EU RoHS Directive. Design and specifications are subject to change without notice. DISTRIBUTED BY SAMSUNG TECHWIN CO., LTD |
|---|
