| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
|---|
| RAM/ROM | 1024M/128M Streaming Capability 3 Streams |
|---|
| Scanning System | Progressive 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Main stream: 1080P/720P(1 ~ 25/30fps) Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; |
|---|
| Minimum Illumination | Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) 0Lux@F1.6 (IR on) |
|---|
| IR Distance | Distance up to 100m (328ft) Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| IR On/Off Control | Auto/Manual Bit Rate Control CBR/VBR |
|---|
| IR LEDs | 6 Bit Rate H.265/H.264: 448K ~ 8192Kbps |
|---|
| 鏡頭 | Day/Night Auto(ICR) / Color / B/W |
|---|
| 焦距 | 4.8mm~120mm Backlight Compensation BLC / HLC / WDR(120dB) |
|---|
| Max. Aperture | F1.6 ~ F4.4 White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Angle of View | H: 62.8° ~ 2.6° Gain Control Auto / Manual |
|---|
| Optical Zoom | 25x Noise Reduction Ultra DNR (2D/3D) |
|---|
| Focus Control | Auto/Manual Motion Detection Support |
|---|
| Iris Control | Auto/Manual Region of Interest Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization N/A (EIS) DORI Distance |
|---|
| 除霧 | Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Digital Zoom 16x sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Flip 180° |
|---|
| Detect | Observe Recognize Identify Privacy Masking Up to 24 areas 1613m(5292ft) 646m(2119ft) 323m(1060ft) 161m(528ft) Audio |
|---|
| PTZ | Compression G.711a/G.711Mu/G.726/AAC |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° Network |
|---|
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s Ethernet RJ-45 (10XBase-T/100Base-TX) |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 200° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| 預置位 | 300 DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Interoperability ONVIF Profile S&G, API |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Streaming Method Unicast / Multicast |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion |
|---|
| command in the specified period | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Included: |
|---|
| RS485 | N/A |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 2/1 PFB305W Wall Mount Electrical Optional： |
|---|
| 供電 | DC 12V/3A, PoE+(802.3at) |
|---|
| 功耗 | 13W, 22W (IR on, Heater on) Environmental |
|---|
| PFA111 | DC12V/3A PFA140 |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| Mount Adapter | Power Adapter Power Box |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| PFB300C | PFA120 PFA150 |
|---|
| Casing | Metal |
|---|
| Ceiling Mount | Junction Box Pole Mount |
|---|
| 尺寸 | Φ160(mm) x 295(mm) |
|---|
| 淨重 | 3kg(6.61lb) |
|---|
| 毛重 | 4.2kg(9.26lb) |
|---|
| PFA151 | PFB303S |
|---|
| Ordering Information | Corner Mount Parapet Mount |
|---|
| 類型 | Part Number Description |
|---|
| PFB305W | Wall Mount Power Box Mount Pole Mount |
|---|
| PFB305W + PFA140 | PFB305W + PFA150 |
|---|
| DC12V/3A | Power Adapter |
|---|
| PFA140 | Power Box |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| PFA120 | Water-proof Junction Box |
|---|
| PFA150 | Pole Mount |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFB305W + PFA151 | PFA111+ PFB303S |
|---|

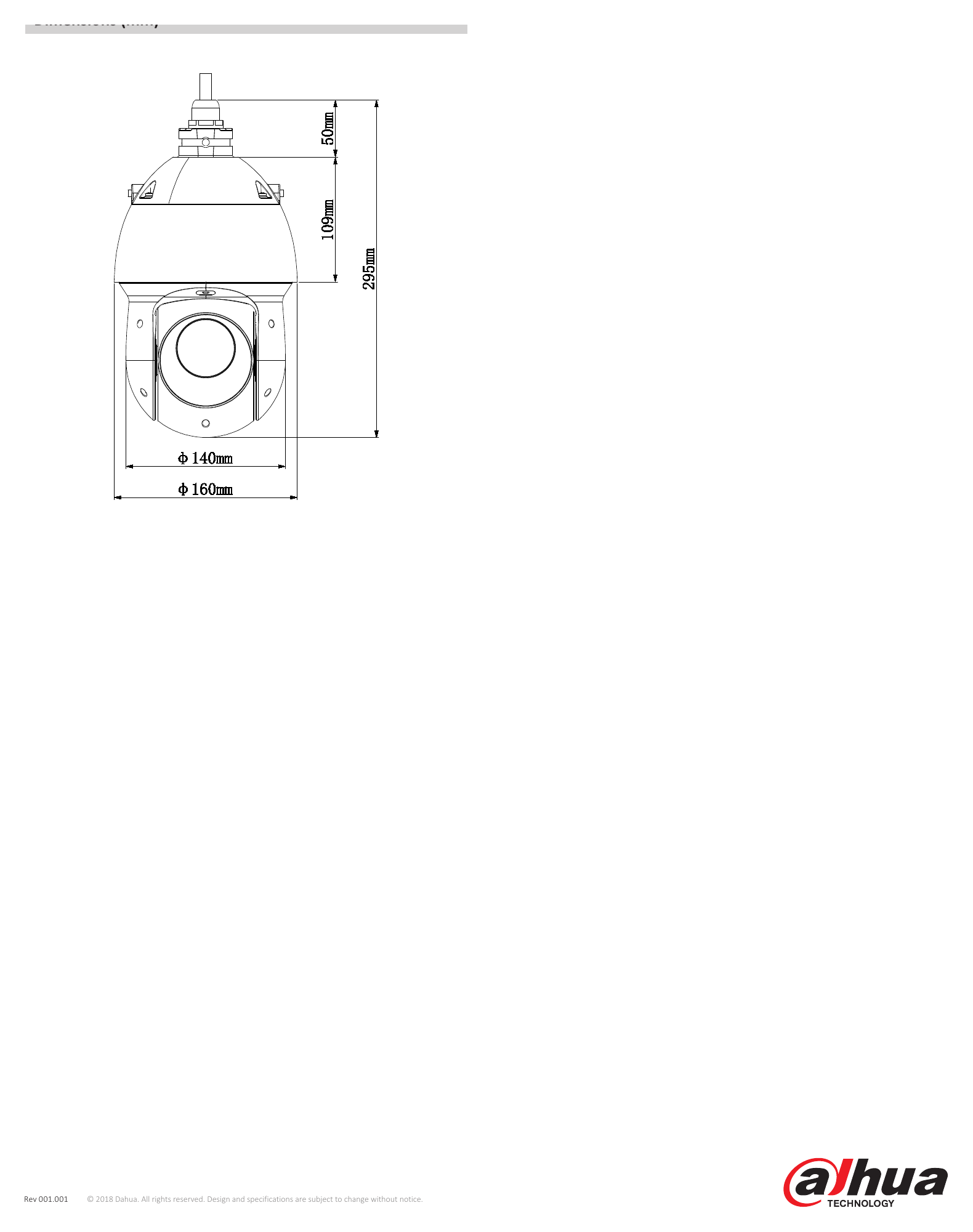

| PFB303S | Parapet Mount www.dahuasecurity.com Dimensions (mm) |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
