| Starlight Technology | regardless of manufacturer. www.dahuasecurity.com Technical Specification |
|---|
| Camera | Bit Rate Control CBR/VBR |
|---|
| 影像感測器 | 1/1.9" Exmor CMOS Bit Rate H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Day/Night Auto(ICR) / Color / B/W |
|---|
| RAM/ROM | 1024M/64M Backlight Compensation BLC / HLC / WDR(120dB) |
|---|
| Scanning System | Progressive White Balance Auto,ATW,Indoor,Outdoor,Manual |
|---|
| Minimum Illumination | Color: 0.002Lux@F1.5; B/W:0.0002Lux@F1.5 Gain Control Auto / Manual |
|---|
| S/N Ratio | More than 56dB Noise Reduction Ultra DNR (2D/3D) |
|---|
| IR Distance | N/A Motion Detetion Support |
|---|
| IR On/Off Control | N/A Region of Interest Support Electronic Image |
|---|
| IR LEDs | N/A Support Stabilization (EIS) |
|---|
| 快門速度 | 1s ~ 1/30000s, 1/3 ~ 1/12000s Defog Support |
|---|
| Digital Zoom | 16x |
|---|
| 焦距 | 6mm~180mm, motorized |
|---|
| Flip | 180° |
|---|
| 鏡頭類型 | Auto iris |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Max. Aperture | F1.5~ F4.3 |
|---|
| Angle of View | H: 61.2° ~ 2.1° |
|---|
| Compression | G.711a/G.711mu/G.726/AAC |
|---|
| Optical Zoom | 30x |
|---|
| Focus Control | Auto/Manual/Semi-automatic |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Close Focus Distance | 100mm~ 1000mm IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, |
|---|
| PTZ | Protocol ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Preset Speed | Pan: 600° /s; Tilt: 500° /s |
|---|
| Max. User Access | 20 users |
|---|
| 預置位 | 300 NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 128GB |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Web Viewer | IE10/Google/Firefox/Safari... |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Management Software | Smart PSS, DSS Auto restore to previous PTZ and lens status after Power up Action power failure |
|---|
| Smart Phone | iPhone, iPad, Android, Windows Phone Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion |
|---|
| command in the specified period | Certifications |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Intelligence | UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
|---|
| Auto Tracking | Support Interface Tripwire, Intrusion,Abandoned/Missing, Face Detection/ |
|---|
| IVS (optional) | Anti-flicker/Video,network loss alarm, Illegal Parking (by Video Interface 1 VMS) |
|---|
| Video | Audio Interface 1/1 |
|---|
| Streaming Capability | 3 Streams Alarm 7/2 1080P(1920×1080)/720P(1280×720)/D1(704×576/ Resolution 704×480)/CIF(352×288/352×240) Electrical |
|---|
| 主碼流 | 1080P(1~25/30fps), 720P(1~50/60fps) Power Supply AC24V/3A(±25%), PoE+(802.3at) |
|---|
| Frame Rate | Sub stream1 D1/CIF(1 ~ 25/30fps) Power Consumption 13W, 20W (Heater on) |
|---|
| Sub stream2 | 1080P/720P/D1/ CIF (1 ~ 25/30fps) www.dahuasecurity.com |
|---|
| Environmental | Accessories -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH / |
|---|
| Operating Conditions | temperature detection out of range Included: |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal, polycarbonate (dome) PFB303W PFA111 AC24V/3A |
|---|
| Wall Mount | Mount Adapter Power Supply |
|---|
| 尺寸 | Φ242(mm) x 341 (mm) Optional： |
|---|
| 淨重 | 7.5kg(16.53lb) |
|---|
| 毛重 | 8.25kg(18.19lb) |
|---|
| Ordering Information | PFA140 PFB300C PFA120 |
|---|
| Power box | Ceiling Mount Junction Box |
|---|
| 類型 | Part Number Description 2MP 30x Starlight PTZ Network DH-SD65F230F-HNI Camera, WDR, PAL 2MP 30x Starlight PTZ Network DH-SD65F230FN-HNI Camera, WDR, NTSC 2MP PTZ |
|---|
| SD65F230F-HNI | Pole Mount Corner Mount Parapet Mount Camera, WDR, PAL 2MP 30x Starlight PTZ Network SD65F230FN-HNI Camera, WDR, NTSC |
|---|
| Ceiling Mount | Juncon Mount |
|---|
| PFA111 + PFB300C | PFA111 + PFB303W + PFA120 |
|---|
| PFB303W | Wall Mount |
|---|
| PFA111 | Mount Adapter |
|---|
| AC24V/3A | Power Supply |
|---|
| PFA140 | Power box |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| PFA120 | Junction Box Power Box Mount Pole Mount |
|---|
| PFA111 + PFB303W + PFA140 | PFA111 + PFB303W + PFA150 |
|---|
| PFA150 | Pole Mount |
|---|
| PFA151 | Corner Mount |
|---|
| PFB303S | Parapet mount |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFA111 + PFB303W + PFA151 | PFA111+ PFB303S |
|---|

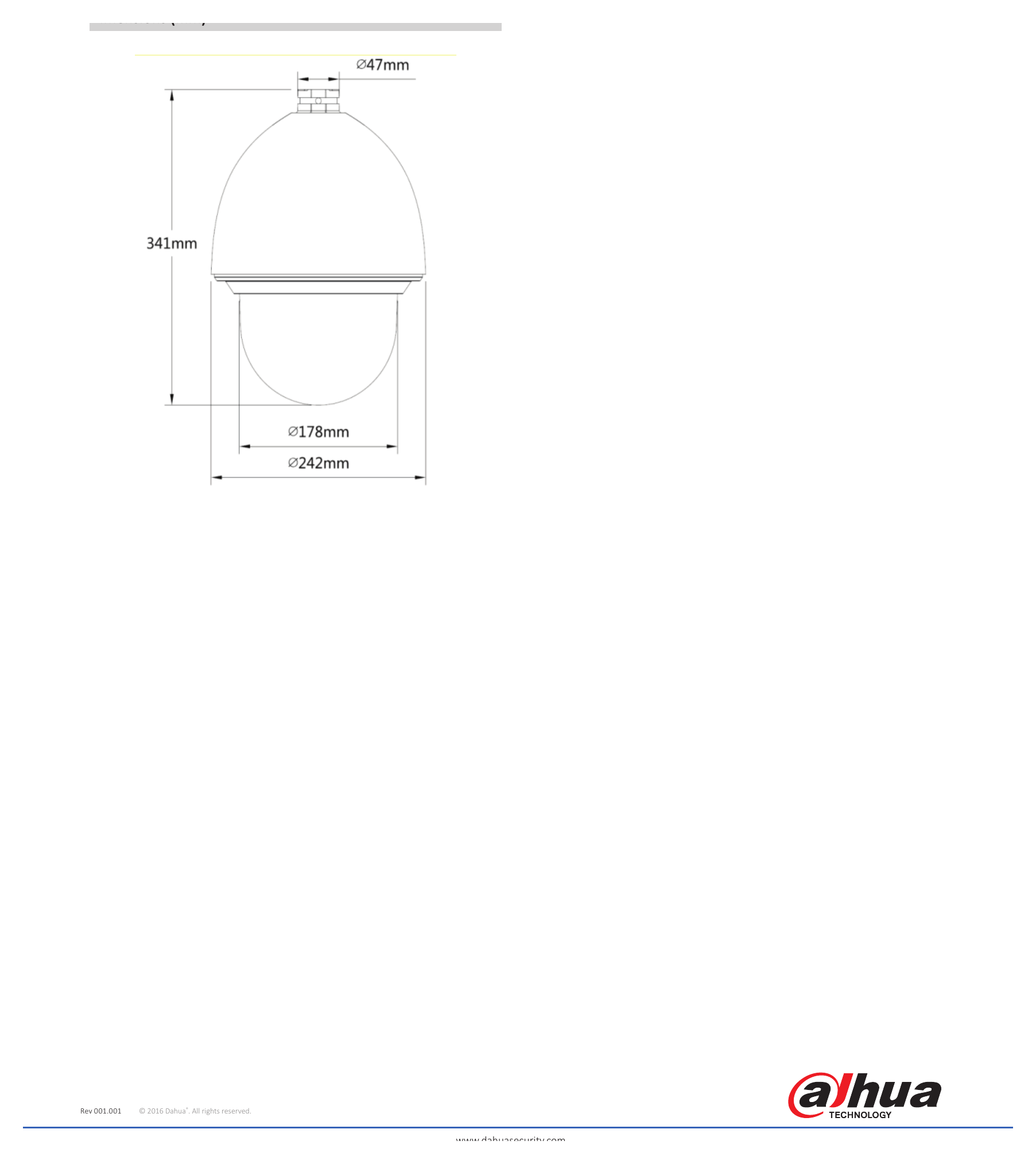

| Rev 001.001 | © 2016 Dahua®. All rights reserved. www.dahuasecurity.com Dimensions (mm) |
|---|
