| System | Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|---|
| Main Processor | Embedded Processor Motion Detection, MD Zones: 396 (22 × 18), Video Video Detection Loss,Tampering and Diagnosis |
|---|
| 操作系統 | Embedded LINUX Alarm input N/A |
|---|
| Video and Audio | Relay Output N/A |
|---|
| Analog Camera Input | 8/16 Channel, BNC Playback and Backup 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 8CH: 1/4/9 |
|---|
| HDCVI Camera | Playback 720P@25/30fps 16CH: 1/4/9/16 |
|---|
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps Time /Date, Alarm, MD and Exact Search (accurate to Search Mode second) |
|---|
| TVI Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, |
|---|
| CVBS Camera | PAL/NTSC Playback Function Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|---|
| IP Camera Input | 8+4/16+8 Channel, each channel up to 8MP |
|---|
| Backup Mode | USB Device/Network |
|---|
| Audio In/Out | 1/1, RCA |
|---|
| Two-way Talk | Reuse audio in/out, RCA Storage |
|---|
| Recording | Internal HDD 2 SATA Ports, up to 10TB capacity for each disk |
|---|
| Compression | H.265+/H.265/H.264+/H.264 eSATA N/A |
|---|
| 解像度 | 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF Auxiliary Interface |
|---|
| USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) Main stream: 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF RS232 N/A Record Rate (1~25/30fps) |
|---|
| RS485 | 1 Port, for PTZ Control Sub stream:960H(1~15fps); D1/CIF(1~25/30fps) Electrical |
|---|
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel 8CH:DC12V/4A Manual, Schedule (General, Continuous), MD (Video detection: Power Supply |
|---|
| Record Mode | 16CH:DC12V/5A Motion Detection, Video Loss, Tampering), Alarm, Stop |
|---|
| 功耗 | 8CH: <10W 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- (without HDD) 16CH: <20W Record Interval record: 10 ~ 300 sec Construction |
|---|
| 音訊壓縮 | G.711A, G.711U, PCM |
|---|
| Device Dimensions | 1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1") |
|---|
| Audio Sample Rate | 8KHz, 16 bit Per Channel Device with PFH101 483mmx281mmx56mm (19.0"x11.1"x2.2") |
|---|
| 音訊碼率 | 64Kbps Per Channel Rack Mount Tray |
|---|
| 淨重 | 8CH: 1.5kg (3.3 lb) |
|---|
| Display | (without HDD) 16CH: 1.7kg (3.7 lb) |
|---|
| 接口 | 1 HDMI, 1 VGA 8CH: 2.9kg (6.4 lb) Gross Weight 16CH: 3.1kg (6.8 lb) HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, |
|---|
| When IP extension mode enabled: | Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 Third-party Support Camera title, Time, Video loss, Camera lock, Motion detection, OSD |
|---|
| Third-party Support | Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, |
|---|
| Network | Sanyo, Sony, Videotec, Vivotek, and more |
|---|
| Network Function | SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) CE: CE-LVD: EN 60950-1/IEC 60950-1 |
|---|
| Max. User Access | 128 users Certifications CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
|---|
| Smart Phone | iPhone, iPad, Android UL: UL 60950-1 |
|---|
| Interoperability | ONVIF 16.12, CGI Conformant www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|
| 類型 | Part Number Description DH-XVR5208AN-4KL-X 1 2 9 10 8 Channel Penta-brid 4K 1U Digital 8 Channel XVR DH-XVR5208AN-4KL-X Video Recorder 16 Channel Penta-brid 4K 1U Digital 16 Channel XVR DH-XVR5216AN-4KL-X Video Recorder 3 4 6 7 5 8 Accessory, |
|---|
| DH-PFH101 | Rack Mount Tray |
|---|

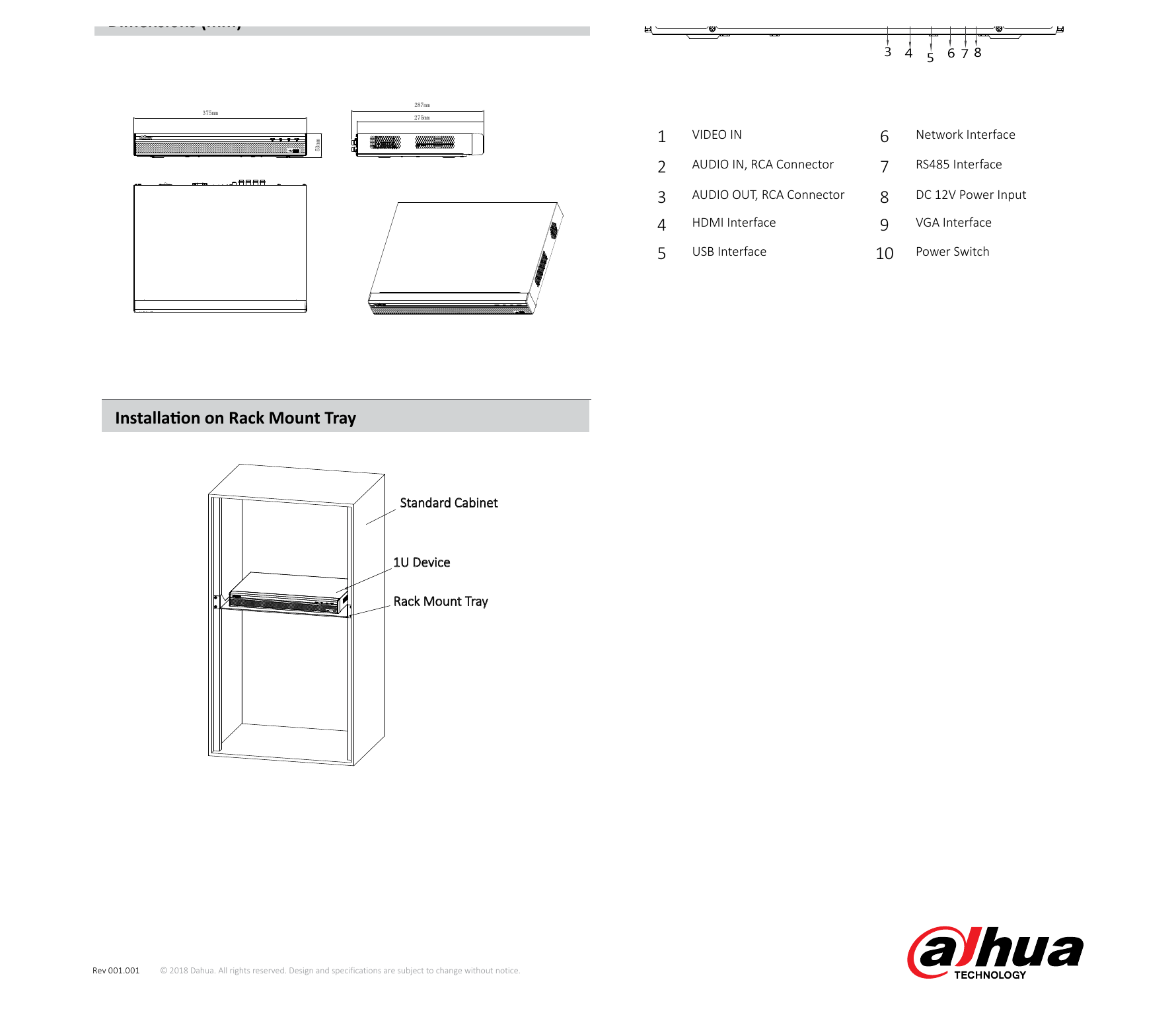

| optional | DH-XVR5216AN-4KL-X 1 2 9 10 Dimensions (mm) 3 4 5 6 78 287mm 375mm 275mm 1 VIDEO IN 6 Network Interface 53mm 2 AUDIO IN, RCA Connector 7 RS485 Interface 3 AUDIO OUT, RCA Connector 8 DC 12V Power Input 4 HDMI Interface 9 VGA Interface 5 USB Interface 10 Power Switch Installation on Rack Mount Tray Standard Cabinet 1U Device Rack Mount Tray |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
