| Camera | Privacy Masking Off/On (8 Area, Rectangle) |
|---|
| 影像感測器 | 1/2.8" CMOS Certifications |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) CE (EN55032:2015, EN61000-3-2:2014, EN61000- 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) |
|---|
| Pixel | 4K Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Scanning System | Progressive IEC 62368-1:2014 (Second Edition) |
|---|
| PAL: 1/3 s–1/100000 s | Port Electronic Shutter Speed NTSC: 1/4 s–1/100000 s 1 BNC output |
|---|
| S/N Ratio | >65 dB Video Output Support CVI/TVI/AHD |
|---|
| 最低照度 | 0.005 Lux/F1.6, 0 Lux warm light on Audio Input Built-in mic |
|---|
| Illumination Distance | 40 m (131.2 ft) Alarm out 1ch alarm out |
|---|
| Illumination Type | Warm light Active Deterrence |
|---|
| Illuminator On/Off Control | Auto; manual Red/Blue Light Warning Flash: 5 s–30 s; frequency: high/medium/low |
|---|
| Illuminator Number | 2 (Warm light) Audio 1/2/3; Volume: high/medium/low; Sound Warning duration: 5 s–30 s; 110 dB Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Power Rotation: 0°–360° |
|---|
| 供電 | POC(only CVI)/12V±30% DC |
|---|
| 功耗 | Max 7.7W(12V DC, warm light on)PoC(AT) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| Mount Type | M12 –40°C to +60°C (–40°F to 140°F); Operating Temperature |
|---|
| 焦距 | 3.6 mm <95% (non-condensation) –40°C to +60°C (–40°F to 140°F); Storage Temperature |
|---|
| Max. Aperture | 3.6 mm: F1.6 <95% (non-condensation) |
|---|
| 防護等級 | IP67 |
|---|
| Field of View | 3.6 mm: H: 89°; V: 46°; D: 105° Structure |
|---|
| 光圈類型 | Fixed iris Cover: Metal |
|---|
| Casing | Rear: Plastic |
|---|
| Close Focus Distance | 3.6 mm: 2.2 m (7.22 ft) Pedestal: Metal |
|---|
| 鏡頭 | Detect Observe Recognize Identify Camera Dimensions 240.7 mm × Φ90.7 mm (9.48" × Φ3.57") |
|---|
| Distance | 110.3 mm 44.1 m 22.1 m 11 m Net Weight 0.44 kg (0.97 lb) 3.6mm (361.88 ft) (144.69 ft) (72.51 ft) (36.09 ft) |
|---|
| 毛重 | 0.70 kg (1.54 lb) CVI: 4K@15 fps/25 fps/30 fps, 4M@25 fps/30 fps; AHD: Frame Rate 4K@15 fps; TVI: 4K@15 fps |
|---|
| 解像度 | 4K (3840 × 2160); 4M (2560 × 1440) |
|---|
| BLC Mode | BLC/HLC/DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto/Manual |
|---|
| Gain Control | Auto/Manual |
|---|
| Noise Reduction | 2D |
|---|
| Smart Light | Yes www.dahuasecurity.com |
|---|
| Ordering Information | Dimensions (mm[inch]) |
|---|
| 類型 | Part Number Description |
|---|

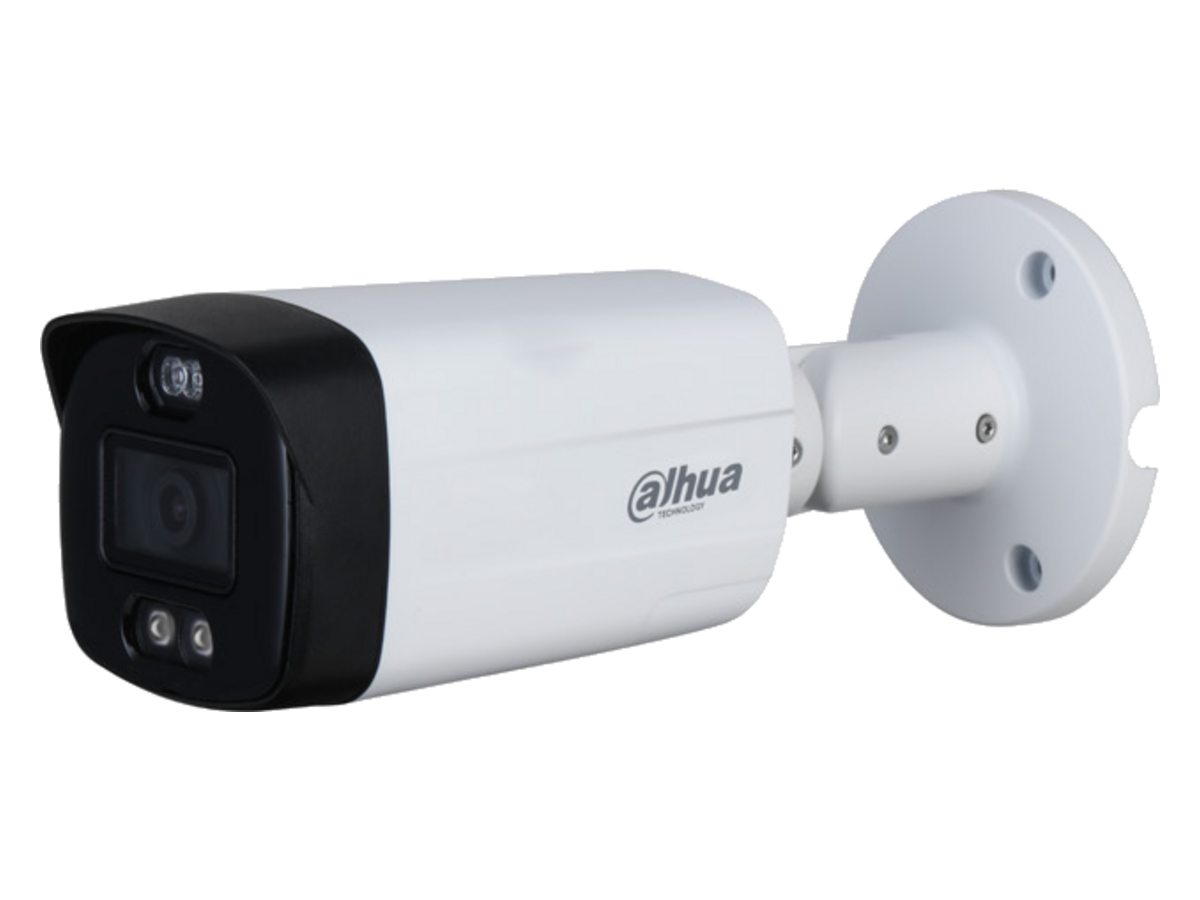

| DH-HAC-ME1809THP- | 4K HDCVI Full-Color Active Deterrence |
|---|
| A-PV-POC | Fixed Bullet Camera, PAL 4K Camera |
|---|
| DH-HAC-ME1809THN- | 4K HDCVI Full-Color Active Deterrence |
|---|
| PFA13G | Junction Box |
|---|
| PFA130-E | IP66 Junction Box |
|---|
| PFA152-E | Pole Mount Bracket Accessories |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| DH-ARA11 | Indoor Siren |
|---|
| DH-ARA16 | Outdoor Siren Accessories Optional: |
|---|
| Junction Box | IP66 Junction Box Pole Mount Bracket |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
