dahua HRX-835 為HRX-835，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 HRX-835 香港價格連安裝報價。
| Analog camera | Inputs 8CH(1Vp-p 75ohm, BNC) |
|---|---|
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(8MP, 5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) |
| Network camera | Inputs Additional 2CH (Up to 10CH) |
| 解像度 | 8MP ~ CIF |
| 網絡協議 | SUNAPI(Wisenet), ONVIF |
| Live | Local Display 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160,2560x1440,1920x1080,1280x1024, 1280x720 VGA: 1920x1080,1280x1024,1280x720,1024x768 |
| Record | Compression H.265, H.264, MJPEG |
| Record Rate(Analog) | (Main Stream) 8MP 8/8fps,5M 12/12fps,4M 15/12fps,2M 30/25fps,720p 30/25fps, 960H/640H 30/25fps (NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH,* The maximum recording frame rate depends on the frame rate of the input camera. |
| Recording Bandwidth | Max. 50Mbps |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track |
| Event Trigger | Alarm Input Analog Camera : Video Loss,Motion Detection,Tampering, Network Camera : Camera Event (Sensor,MD,Video analytics),VA event (Tampering,Enter / Exit,Passing,Virtual- line,(Dis)Appear,Face Detection,Audio detection),Defocus camera event,Dynamic camera event |
| Event Action | e-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Search & Play | Playback Bandwidth Max. 32Mbps (10CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | 10CH(Local Monitor), 8CH(CMS), 4CH(Wisenet Mobile) 1CH(Web) |
| Fisheye Dewarping | WEB/CMS |
| Storage | Supported HDD Up to 6TB |
| HDD Slot | SATA 4ea(Max 24TB) Performance |
| Backup | File backup BU, EXE(Include Player), AVI(Webviewer only) |
| Function | Max. 10 CH play, Date-time/title display |
| PTZ | Control Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone | Support Model iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Control | Live(8ch): Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push |
| Max, Remote Users | Search(3), Live Unicast(10) |
| Redundancy | ARB Support |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI |
| HDMI | 1 EA |
| VGA | 1 EA |
| BNC | 8CH In / 1CH Out(Spot Output) |
| Audio | Out(1EA, RCA, Line) |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| 警報 | In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
| USB | 2EA(Front USB2.0, Rear USB 3.0) |
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ |
| Power inlet | 1EA AC |
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) |
| 語言 | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai Environmental |
| 工作溫度 | 0°C to +40°C(+32℉ to +104℉) |
| 工作濕度 | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC Electrical |
| Power Input | 100~240 VAC±10%, 50/60 Hz |
| 功耗 | Max. 120W (6TB HDD 4ea) TBD |
| Color / Material | Black / Metal |
| 尺寸 | 440.0 x 88 x 384.8 mm (17.32 x 3.46 x 15.15 inch) |
| 重量 | Approx. 4.6Kg (10.14 lb, 4TB HDD 1ea) |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission speed | Analog Camera) (Main Stream) 8MP 8/8fps,5M 12/12fps,4M 15/12fps,2M 30/25fps,720p 30/25fps, 960H/640H 30/25fps (NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH,* The maximum recording frame rate depends on the frame rate of the input camera. |
| Transmission Bandwidth | Max. 64Mbps |
| Compression | G.711 (N/W Camera G.711, 726) |
| Audio Communication | 2-Way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| 安全 | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS HRX-835 8CH Pentabrid DVR |
| CAD | Unit: mm [inch] |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

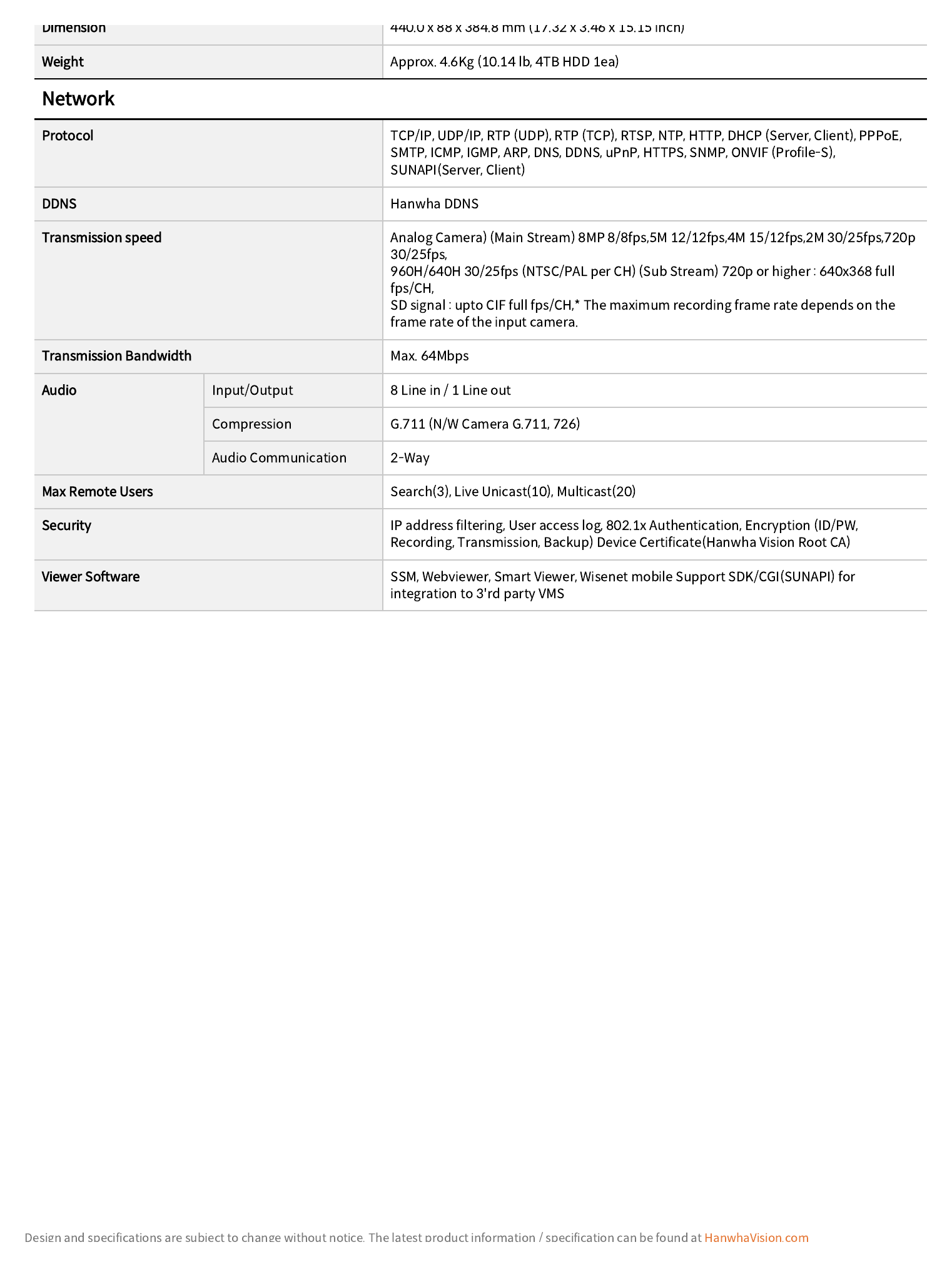

440.0 x 88 x 384.8 mm (17.32 x 3.46 x 15.15 inch)｜重量 Approx. 4.6Kg (10.14 lb, 4TB HDD 1ea)｜Unit: mm
HRX-835 dahua HRX-835亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，HRX-835 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Certification方面，HRX-835 係 UL, CE, FCC, KC Electrical，IPC-HDBW3541R-ZAS 係 Accessories；功耗方面，HRX-835 係 Max. 120W (6TB HDD 4ea) TBD，IPC-HDBW3541R-ZAS 係 <8.5W。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 HRX-835 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 HRX-835 dahua HRX-835供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：藍田CCTV 閉路電視安裝、觀塘CCTV 閉路電視安裝、銅鑼灣CCTV 閉路電視安裝、鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝、青衣CCTV 閉路電視安裝、香港仔CCTV 閉路電視安裝、黃大仙CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 HRX-835 香港價格連安裝報價。
