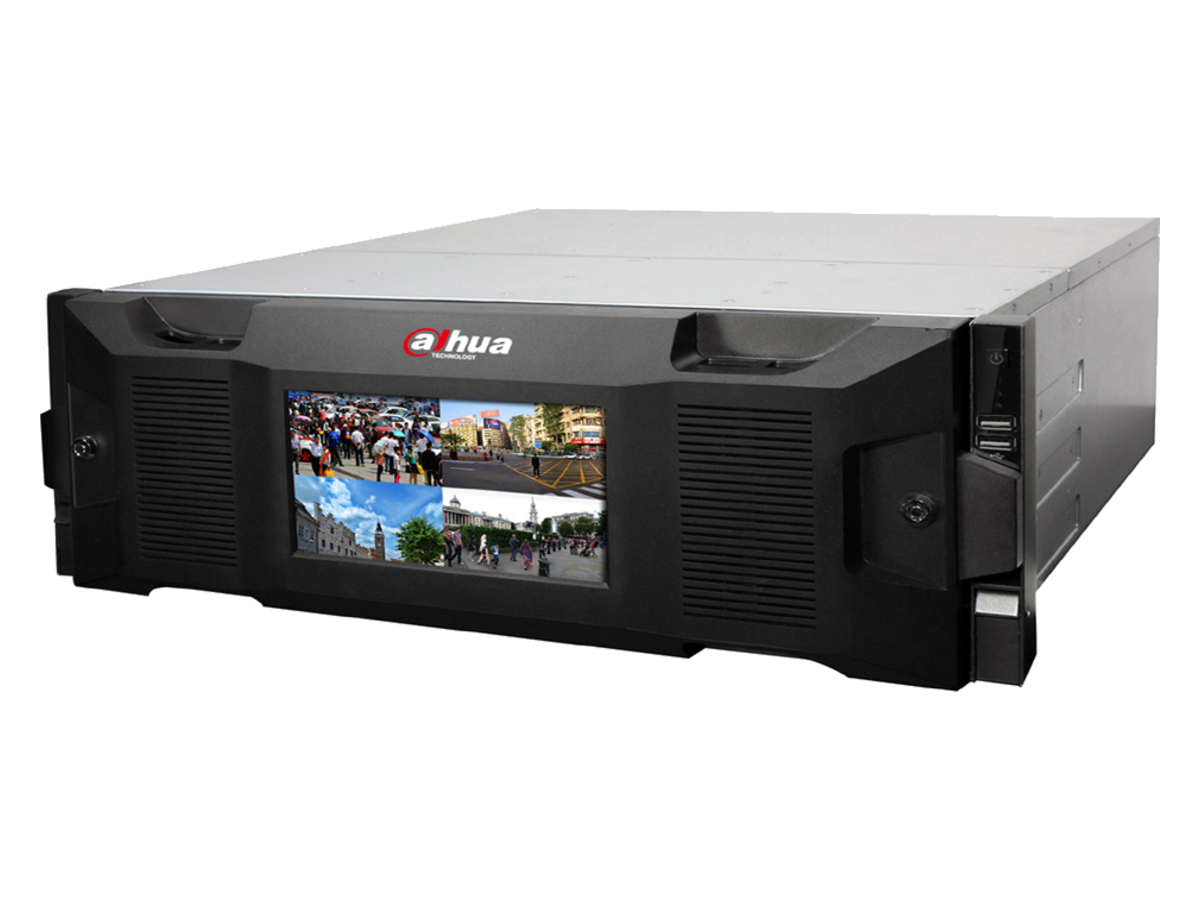

| System | (Channel Number) Metadata Performance |
|---|
| Main Processor | Industry embedded micro-controller (AI by camera) (Channel 64-channel Number) |
|---|
| 操作系統 | Embedded Linux OS WEB (PCAPP), local GUI |
|---|
| 遠程連接 | 256-channel Incoming bandwidth: 512Mbps Face detection, face recognition, video metadata, Network Bandwidth recording bandwidth: 384Mbps IVS (tripwire, intrusion, abandoned object, missing outgoing bandwidth: 128Mbps |
|---|
| AI by Camera | object, fast moving, parking detection, crowd gathering, 24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/9 |
|---|
| loitering,parking, and fence-crossing), | Resolution 60P/720P/D1/CIF/QCIF people counting, smoking detection, call detection 2-channel 24MP/3-channel 16MP/6- Face detection, face recognition, video metadata, channel12MP (20fps)/7-channel12MP (15fps)/6- IVS (tripwire, intrusion,crowd gathering, loitering channel8MP (30fps)/12-channel8MP (15fps)/7- |
|---|
| AI by Device | channel6MP(30fps)/9-channel5MP(30fps)/11- detection, parking detection), people counting, smoking Decoding Capability |
|---|
| detection, call detection | channel5MP (25fps)/12-channel4MP (30fps)/18- channel4MP (20fps)/19-channel3MP (25fps)/12- |
|---|
| IVS | channel1080P (60fps)/24-channel1080P (30fps)/36- channel720P (30fps) |
|---|
| IVS Performance (AI by | General model: 128-channel |
|---|
| Device) (Channel Number) | Advanced model: 32-channel 1-channel VGA output, 3-channel HDMI output, VGA 1/ |
|---|
| Video Output | HDMI 1 outputs the same video source |
|---|
| IVS Performance (AI | Supports 4K output |
|---|
| by Camera) (Channel | 256-channel Customized display |
|---|
| Number) | Multi-screen Display Max. 36-channel local live view Max.16-channel PCAPP live view |
|---|
| Human Face Detection | Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Third-party Support Supports 6 properties: Gender, age range (6 levels), Pelco,Canon, Samsung glasses, expression (8 types), mouth mask, and beard |
|---|
| Performance (AI by | Operation Interface WEB(PCAPP), local GUI 64-channel |
|---|
| 視頻壓縮 | Smart H.265+/Smart H.264+/H.265/H.264 160-channel |
|---|
| 音訊壓縮 | G.711A/G.711U/PCM/G726 |
|---|
| Human Face Recognition | Network HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, |
|---|
| Face Database Capacity | 50 face databases with 300,000 face pictures in total Protocol DHCP, DNS, DDNS, P2P |
|---|
| Device) (1080P)(Channel | Interoperability ONVIF (Profile S, T and G), CGI, SDK face pictures analyzed per second) |
|---|
| Browser | Chrome, PCAPP, IE9 or higher, Firefox |
|---|
| camera) (Channel | balance, fault-tolerance, etc Record Playback |
|---|
| Multiple-channel Playback | Max. 16-channel playback 50 plate databases with 300,000 plate numbers in total |
|---|
| Plate Database Capacity | Search video detection/manual record/IO alarm/ |
|---|
| Supports allowlist and blocklist | Record Search intelligent event/all record file |
|---|
| Performance by ITC | 64-channel Storage Medium Internal HDD, SAS disk array enclosure |
|---|
| Backup Method | HDD, peripheral USB storage device |
|---|
| Video Metadata | Play, pause, stop, fast forward, fast backward, reverse Gender, age, sleeves length, top color, bottom type, play, frame by frame play Playback Function |
|---|
| Human Body Properties | bottom color, bag, rain coat, umbrella,hat, hairstyle, Full-screen, backup (clip/file), snapshot, digital zoom, |
|---|
| direction, hold a baby, mouth mask | audio on/off Vehicle type, vehicle color, plate color, logo, calling, Storage seatbelt, ornament, region |
|---|
| HDD Group | 24 Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve RAID RAID 0/1/5/6/10/50/60 |
|---|
| Properties | length, top color, hat, hair style, mouth mask www.dahuasecurity.com |
|---|
| Storage Pool | N/A Operating Altitude 5000 m (16404.20 ft) |
|---|
| 警報 | Installation Mode Desktop/rack |
|---|
| General Alarm | Motion detect, tampering, local alarm CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1 IPC offline alarm, storage error, HDD full, IP conflict, Certifications FCC: Part 15 Subpart A |
|---|
| Anomaly Alarm | MAC conflict, login lock, AI module temperature alarm, UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07 AI module offline, fan malfunction Human face detection, human face recognition, entries frequency, video metadata (person/vehicle/non-motor Intelligent Alarm vehicle), IVS, plate recognition, people counting, Dimensions(mm[inch]) smoking, call Record, snapshot (full image), local external alarm |
|---|
| Alarm Linkage | output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email Peripheral Interface |
|---|
| 音訊輸入 | 1-channel (reserved) |
|---|
| 音訊輸出 | 1-channel, speaker output, audio linkage output |
|---|
| 警報輸入 | 16-channel |
|---|
| 警報輸出 | 8-channel |
|---|
| Internal HDD | 24 slots, SATA3.0/SAS. Max.16T/HDD |
|---|
| eSATA | 1 port |
|---|
| SAS | 2 SAS3.0 ports |
|---|
| RS-232 | 1 port, for debug or transparent COM data 1 port, control peripheral PTZ and so on RS-485 Supports various protocols 4 ports |
|---|
| USB | 2 USB2.0 port at the front panel and 2 USB3.0 port at the rear panel |
|---|
| HDMI | 3 ports; support 4K output |
|---|
| VGA | 1 port |
|---|
| Network | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
|---|
| 供電 | 2 ports |
|---|
| PoE | N/A |
|---|
| 淨重 | 17 kg (37.48 lb) |
|---|

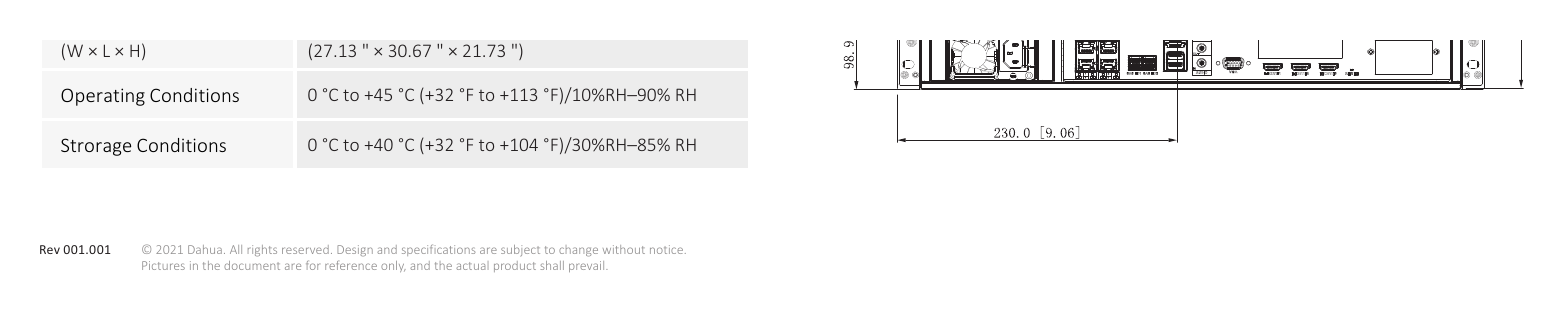

| 毛重 | 18 kg (39.68 lb) Chassis: 446 mm × 543.4 mm × 175 mm |
|---|
| 尺寸 | (17.56 " × 21.39 " × 6.89 ") (W × L × H) Max. size: 482.6 mm (with hanger) × 543.4 mm × 175 mm (with feet mat) (19.00 " × 21.39 " × 6.89 ") |
|---|
| Packaging Dimensions | 689 mm × 779 mm × 552 mm (W × L × H) (27.13 " × 30.67 " × 21.73 ") |
|---|
| Operating Conditions | 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH |
|---|
| Strorage Conditions | 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
