| Camera | Video Structuralization Support human, motor vehicle and non-motor vehicle image capture |
|---|
| 影像感測器 | 1/2.8" STARVIS™ CMOS General Intelligence |
|---|
| 最大解像度 | 4MP Motion detection, video tampering, scene changing, |
|---|
| Effective Pixels | 2560 (H)×1440 (V) Event Trigger Network disconnection, IP address conflict, illegal access, and storage anomaly. |
|---|
| ROM | 4GB General IVS Object Abandoned/Missing |
|---|
| RAM | 1GB |
|---|
| Electronic Shutter Speed | 1/3–1/30000s Compression H.265/H.265+/H.264+/H.264/MJPEG(Sub Stream) |
|---|
| Scanning Mode | Progressive Scanning Streaming Capability 3 Streams |
|---|
| Color: 0.005Lux@F1.6 | 2560 ×1440 (2560×1440); 3M (2048×1536); 1080P |
|---|
| Minimum Illumination | B/W: 0.0005Lux@F1.6 Resolution (1920×1080); (1.3M)1280×960; 720P (1280×720); D1 0Lux (IR light on) (704× 576/704×480); CIF (352×288/352×240) |
|---|
| IR Distance | 150 m (492.13 ft) Main stream: 4M/3M(1–25/30fps), 1080P/1.3M/720P(1–25/30fps) |
|---|
| IR On/Off Control | Zoom Prio/Manual/SmartIR Frame Rate Sub stream 1: D1/CIF(1–25/30fps) Sub stream 2: 1080P/1.3M/720P(1–25/30fps), D1/ CIF(1–25/30fps) |
|---|
| IR LED Number | 4 |
|---|
| 碼率控制 | Variable Bit Rate/Constant Bit Rate H.264: 32 Kbps–8192 Kbps Bit Rate |
|---|
| 焦距 | 3.95 mm–177.7 mm H.265: 32 Kbps–8192 Kbps |
|---|
| 光圈 | F1.6–F4.95 Day/Night Support |
|---|
| Field of View | H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2° BLC Support |
|---|
| Optical Zoom | 45x WDR 120dB |
|---|
| Focus Control | Auto/Semi-Auto/Manual HLC Support Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ |
|---|
| Close Focus Distance | 0.01 m–3 m White Balance Natural/Street lamp |
|---|
| Iris Control | Auto/Manual Gain Control Auto/Manual |
|---|
| Detect | Observe Recognize Identify |
|---|
| Noise Reduction | 2D/3D |
|---|
| DORI Distance | 3176 m 1270 m 635 m 317 m (10419.95 ft) (4166.67 ft) (2083.33 ft) (1040.03 ft) Motion Detection Support |
|---|
| PTZ | Region of Interest (RoI) Support |
|---|
| Pan/Tilt Range | Pan: 0°–360°; Tilt: -15°–+90° Electronic Image Support Stabilization (EIS) |
|---|
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
|---|
| Optical Defog | Electronic Defog |
|---|
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
|---|
| Digital Zoom | 16x |
|---|
| 預置位 | 300 |
|---|
| Flip | 0°/180° |
|---|
| Tour | 8(up to 32 preset per tour) |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Pattern Number | 5 Certifications |
|---|
| Scanning Number | 5 CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Speed Adjustment | Support |
|---|
| 斷電記憶 | Support G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; Audio Compression |
|---|
| Idle Motion | Preset/Tour/Pattern/Scanning PCM; MPEG2-Layer2 |
|---|
| DH-SD | Port Pelco-P/D(Auto recognition) |
|---|
| 音訊輸入 | 1 (LINE IN; bare wire) Artifical Intelligence |
|---|
| Audio Out | 1 (LINE OUT; bare wire) Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering |
|---|
| 周界防護 | Alarm Port 2 alarm input port; 1 alarm output port false alarms caused by animals, rustling leaves, bright lights, etc. www.dahuasecurity.com |
|---|
| Network | Accessories |
|---|
| Ethernet Port | 1 RJ-45 Port 10/100Base-T Included: IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; |
|---|
| Protocol | UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
|---|
| Interoperability | ONVIF Profile S&G; CGI |
|---|
| Streaming Method | Unicast/Multicast |
|---|
| PFB305W | AC24V/3A |
|---|
| Max. User Access | 20 (Total bandwidth 48M) Wall Mount Power Adapter |
|---|
| Edge Storage | FTP; Micro SD card (256G); P2P IE7 and newer versions Optional: Chrome 42 and older versions Browser Firefox 52 and older versions Safari Smart Player Smart PSS Management Software DSS |
|---|
| Easy4ip | PFA111 PFA140 PFB300C |
|---|
| Mount Adapter | Power Box Ceiling Mount |
|---|
| Smart Phone | IOS/Android/Windows Phone Electrical AC24V/3A±25% Power Supply PoE+(802.3at) 11W PFA120 PFA150 PFA151 Power Consumption 20W (IR light on) Junction Box Pole Mount Corner Mount |
|---|
| Operating Conditions | –40°C to +70°C (–40°F to +158°F) |
|---|
| 工作濕度 | ≤95%RH IP67; IK10; TVS 6000V lightning protection; PFB303S |
|---|
| 防護等級 | Parapet Mount surge protection Construction |
|---|
| Wall Mount | Hang Mount |
|---|
| 尺寸 | Φ190 mm×332 mm (7.48"×13.07") |
|---|
| Casing | Metal Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-SD5A445XA-HNR | 4MP 45x Starlight IR PTZ Network Camera, PAL |
|---|
| DH-SD5A445XAN-HNR | 4MP 45x Starlight IR PTZ Network Camera, NTSC Pole Mount Pole Mount |
|---|
| SD5A445XA-HNR | 4MP 45x Starlight IR PTZ Network Camera, PAL PFA150+PFB305W PFA150+ PFA111+ PFB300C |
|---|
| SD5A445XAN-HNR | 4MP 45x Starlight IR PTZ Network Camera, NTSC |
|---|
| AC24V/3A | Power Adapter |
|---|
| PFA111 | Mount Adapter |
|---|
| PFA140 | Power Box |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| PFA120 | Junction Box |
|---|
| PFA150 | Pole Mount |
|---|
| PFA151 | Corner Mount |
|---|

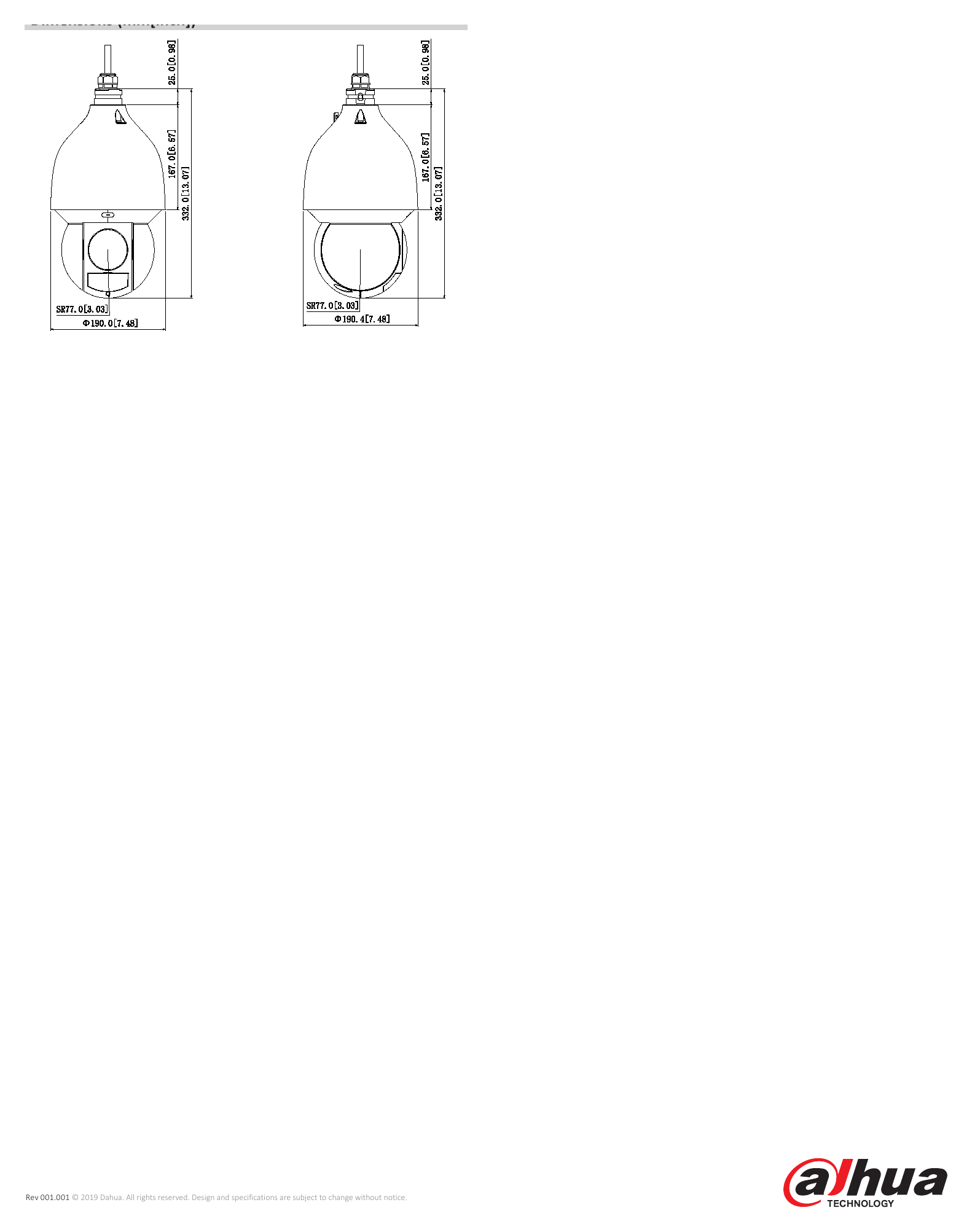

| PFB303S | Parapet Mount www.dahuasecurity.com Dimensions (mm[inch]) www.dahuasecurity.com |
|---|
