| Camera | face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also |
|---|
| 影像感測器 | 1/2.8" CMOS supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, |
|---|
| Pixel | 4 MP mask, mustache and expressions. The expressions Face Detection are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for |
|---|
| ROM | 4 GB capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group |
|---|
| RAM | 1 GB of snapshots. |
|---|
| Electronic Shutter Speed | 1/1 s–1/30,000 s Auto Tracking Yes |
|---|
| Scanning System | Progressive With AI NVR, quickly pick up the human/vehicle targets Quick Pick that users are interested in from SMD events. Color: 0.005 lux@F1.6 |
|---|
| 最低照度 | B/W: 0.0005 lux@F1.6 SMD Yes 0 lux (IR light on) |
|---|
| Illumination Distance | 150 m (492.13 ft) (IR) Video Smart H.265+; H.265; Smart H.264+; H.264; H.264B; |
|---|
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR Video Compression H.264H; MJPEG (Sub Stream 1) |
|---|
| Illuminator Number | 4 (IR) Streaming Capability 3 streams |
|---|
| 鏡頭 | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × |
|---|
| 解像度 | 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); |
|---|
| 焦距 | 4.8 mm–154 mm CIF (352 × 288/352 × 240) Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) |
|---|
| Max. Aperture | F1.6–F4.0 Video Frame Rate Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
|---|
| Field of View | H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7° |
|---|
| 碼率控制 | CBR; VBR |
|---|
| Optical Zoom | 32× H.264: 3 kbps–20480 kbps Video Bit Rate |
|---|
| Focus Control | Auto; semi-auto; manual H.265: 3 kbps–20480 kbps |
|---|
| Day/Night | Auto (ICR); Color; B/W |
|---|
| Close Focus Distance | 0.8 m–5.0 m (2.62 ft–16.40 ft) |
|---|
| BLC | Yes |
|---|
| Iris Control | Auto; manual |
|---|
| WDR | 120 dB |
|---|
| Detect | Observe Recognize Identify Auto; indoor; outdoor; tracking; manual; sodium lamp; 2,124 m 839 m 425 m 212 m White Balance |
|---|
| DORI Distance | natural light; street lamp (6,968.50 ft) (2,752.63 ft) (1,394.36 ft) (695.54 ft) |
|---|
| Gain Control | Auto; manual |
|---|
| Pan: 0° to 360° endless | Noise Reduction 2D NR; 3D NR Tilt: –15° to +90°, auto flip 180° |
|---|
| Motion Detection | Yes Pan: 0.1°/s–300°/s |
|---|
| Tilt: 0.1°/s–200°/s | Region of Interest (RoI) Yes |
|---|
| Preset Speed | Pan: 400°/s; Tilt: 300°/s Image Stabilization Electronic (EIS) |
|---|
| Preset | 300 Defog Electronic |
|---|
| Tour | 8 (up to 32 presets per tour) Digital Zoom 16× |
|---|
| Pattern | 5 Image Rotation 180° |
|---|
| Scan | 5 Up to 24 areas can be set, with up to 8 areas in the Privacy Masking same view |
|---|
| 斷電記憶 | Yes |
|---|
| S/N Ratio | ≥55 dB |
|---|
| Idle Motion | Preset; Pattern; Tour; Scan DH-SD |
|---|
| PTZ Protocol | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; Pelco-P/D (auto recognition) Audio Compression G729; G723 Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking Network Port RJ-45 (10/100 Base-T) detection; people gathering; vehicle/human alarm classification www.dahuasecurity.com HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; Ordering Inf |
|---|
| Interoperability | ONVIF (Profile S&G&T); CGI DH-SD5A432GB-HNR |
|---|
| WizSense | Camera Network PTZ |
|---|
| Streaming Method | Unicast; Multicast |
|---|
| 用戶管理 | 20 (total bandwidth: 64 M) |
|---|
| PFB305W | Wall Mount Bracket |
|---|
| Storage | FTP; Micro SD card (512 GB); NAS |
|---|
| DC24V/2.5A | Power Adapter IE 7 and later versions |
|---|
| Chrome 42 and earlier versions | PFA111 Mount Adapter Firefox 52 and earlier versions |
|---|
| Safari | PFA140 Power Box |
|---|
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS Accessories PFB300C Ceiling Mount Bracket |
|---|
| Mobile Client | iOS; Android PFB301C Ceiling Mount Bracket |
|---|
| Certification | PFA120 Junction Box |
|---|
| CE: EN55032/EN55024/EN50130-4 | PFA150 Pole Mount Bracket |
|---|
| Certifications | FCC: Part15 subpartB, ANSI C63.4-2014 |
|---|
| UL: UL60950-1+CAN/CSA C22.2, No.60950-1 | PFA151 Corner Mount Bracket |
|---|
| Alarm I/O | 2/1 Accessories |
|---|
| Audio I/O | 1/1 Included: |
|---|
| 雙向語音 | Yes Capture; preset; tour; pattern; recording; triggering on-off value output; audio; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space |
|---|
| detection; power exception detection | PFB305W DC24V/2.5A |
|---|
| Wall Mount | Power Adapter |
|---|
| 供電 | Bracket 24 VDC, 2.5 A (± 25%) |
|---|
| PoE +(802.3at) | Optional: Basic: 13 W Max.: 22 W (illuminator + PTZ working) |
|---|
| 工作溫度 | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|
| PFA111 | PFA140 PFB300C |
|---|
| 工作濕度 | ≤95% |
|---|
| Mount Adapter | Power Box Ceiling Mount IP67; IK10; TVS 6000 V lightning proof; surge Bracket protection; voltage transient protection |
|---|
| Product Dimensions | 332 mm × Φ190 mm (13.07" × Φ7.48") |
|---|
| 淨重 | 4.7 kg (10.36 lb) |
|---|
| 毛重 | 8 kg (17.64 lb) PFB301C PFA120 PFA150 |
|---|
| Ceiling Mount | Junction Box Pole Mount |
|---|
| Bracket | Bracket PFA151 Corner Mount Bracket www.dahuasecurity.com |
|---|
| PFB305W+PFA120 | PFA111+PFB300C PFA111+PFB301C |
|---|
| Pole Mount(Vertical) | Corner Mount Pole Mount(Horizontal) |
|---|

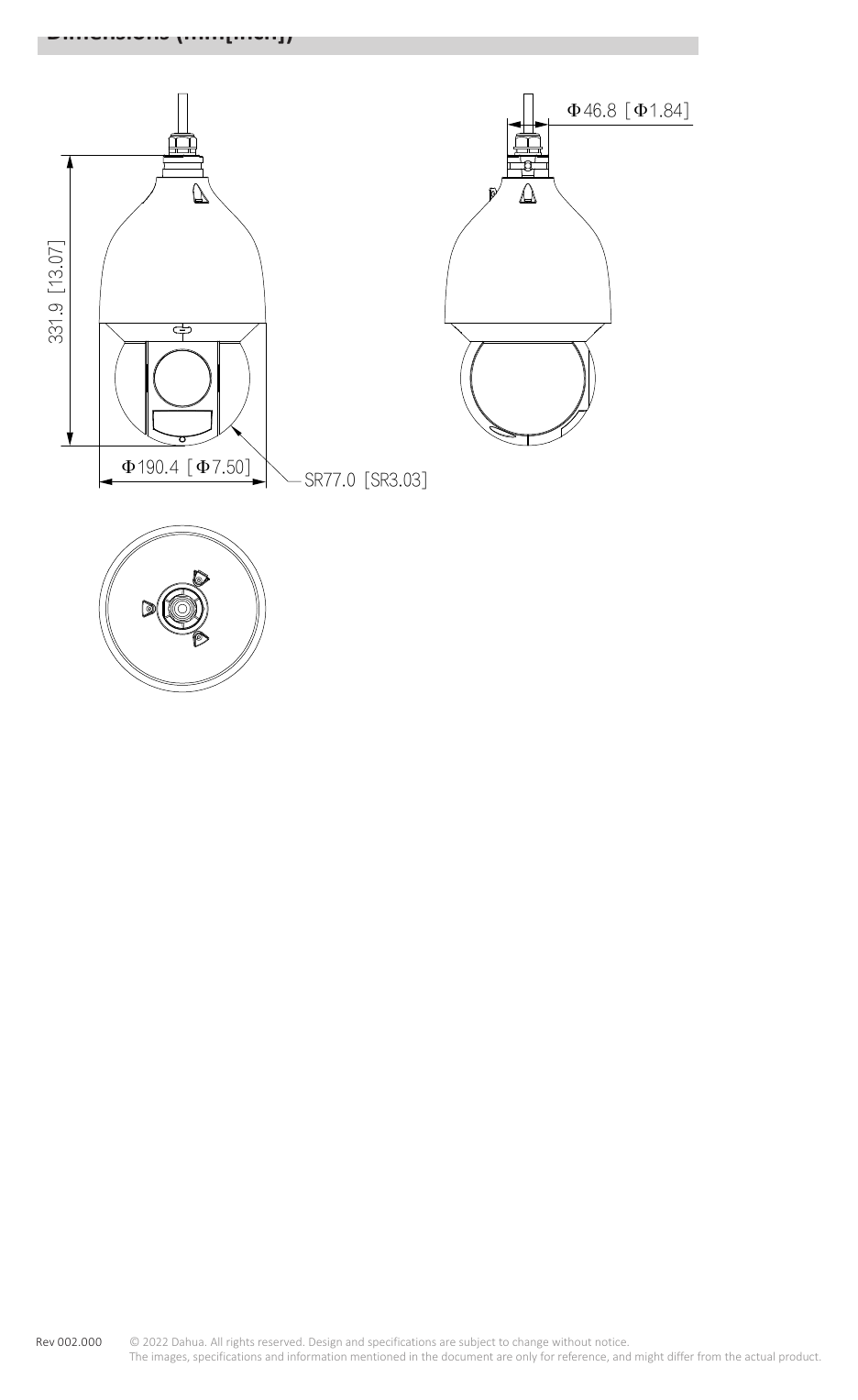

| PFB305W+PFA150 | PFB305W+PFA151 PFA111+PFB300C+PFA150 Dimensions (mm[inch]) Φ46.8 [Φ1.84] 331.9 [13.07] Φ190.4 [Φ7.50] SR77.0 [SR3.03] |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
