| 影像感測器 | 1/2.4" Progressive Scan CMOS |
|---|
| 最大解像度 | 3200 × 1800 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100, 000 s |
|---|
| Day ＆ Night | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 60°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8° |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 |
|---|
| DORI 偵測距離 | D: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | Up to 50 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, watermark, basic and digest |
|---|
| 安全 | authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| 內置麥克風 | Yes, 1 built-in microphone |
|---|
| Built-in Speaker | Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB. -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger |
|---|
| 聯動方式 | recording, trigger capture, audible warning, flashing light, (only -S model supports) trigger alarm output 12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 12.9 W |
|---|
| 材質 | Metal |
|---|

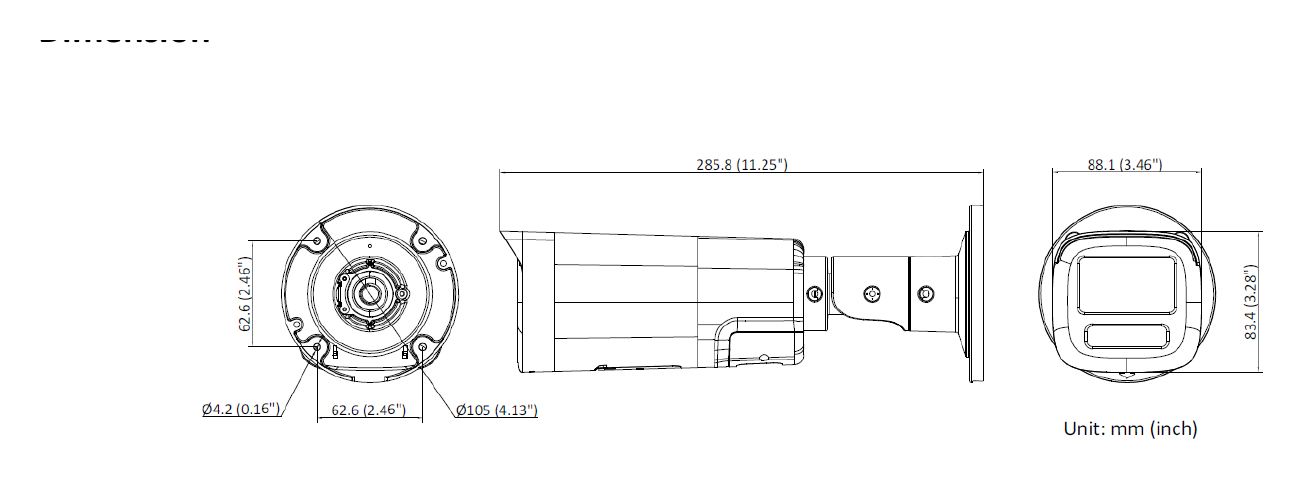

| 尺寸 | 105 mm × 285.8 mm (Ø 4.13" × 11.25") |
|---|
| 包裝尺寸 | 315 mm × 137 mm × 141 mm (5.5" × 5.5" × 5.6") |
|---|
| 重量 | Approx. 805 g (1.8 lb.) |
|---|
| 連包裝重量 | Approx. 1405 g (3.1 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions |
|---|
| 語言 | English, Ukrainian |
|---|
| 一般功能 | Heartbeat, mirror, password reset via email, password protection, anti-banding |
|---|
| Flashing Light | Yes CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
