HIKVISION DS-2CD2T26G2-ISU/SL 安裝、保養、維修

Name: HIKVISION DS-2CD2T26G2-ISU/SL 2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
Brand: Hikvision
SKU: DS-2CD2T26G2-ISU/SL

產品簡介

Hikvision DS-2CD2T26G2-ISU/SL 為2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD2T26G2-ISU/SL 香港價格連安裝報價。

影像感測器：1/2.8" Progressive Scan CMOS
最大解像度：1920 × 1080
最低照度：Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
快門速度：1/3 s to 1/100,000 s
日夜切換：IR cut filter

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-2CD2T26G2-ISU/SL Hikvision 2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera 產品圖片

詳細規格

影像感測器	1/2.8" Progressive Scan CMOS
最大解像度	1920 × 1080
最低照度	Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 2.8, 4, and 6 mm optional 2.8 mm, horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 129°
鏡頭及視場角	4 mm, horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 102° 6 mm, horizontal FOV: 55°, vertical FOV: 29°, diagonal FOV: 65°
鏡頭接口	M12
光圈類型	Fixed
光圈	F1.4 2.8 mm: 1.1 m to ∞
Depth of Field	4 mm: 1.2 m to ∞ 6mm: 3 m to ∞ 2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m
DORI 偵測距離	4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m 6 mm: D: 87 m, O: 34 m, R: 17 m, I: 9 m
補光類型	IR
補光距離	Up to 60 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
第三碼流	60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Third stream is supported under certain settings.
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile, Main Profile, High Profile
H.265 類型	Main Profile
碼率控制	CBR
SVC 分級編碼	H.264 and H.265 encoding
感興趣區域 ROI	1 fixed region(s) for main stream and sub-stream
Audio Type	Mono sound
音訊壓縮	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
音訊取樣率	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
環境噪音過濾	Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
網絡協議	IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile , Profile , Profile ),ISAPI,SDK
Smooth Streaming	Yes Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
安全	authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
網絡儲存	Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
客戶端	iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10+, IE 11,
瀏覽器	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
圖像參數切換	Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
日夜模式	Day, Night, Auto, Schedule
寬動態 WDR	120 dB
信噪比 SNR	≥ 52 dB
影像增強	BLC, HLC, 3D DNR
隱私遮蔽	Yes
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Speaker	Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
內置麥克風	Yes
警報	1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
重設鍵	Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Line crossing detection, intrusion detection, region entrance detection, region exiting
智能事件	detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
人臉抓拍	Yes 12 VDC ± 25%, 0.88 A, max. 10.6 W,Ø 5.5 mm coaxial power plug,reverse polarity
供電	protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
材質	Front cover: metal, back cover: metal

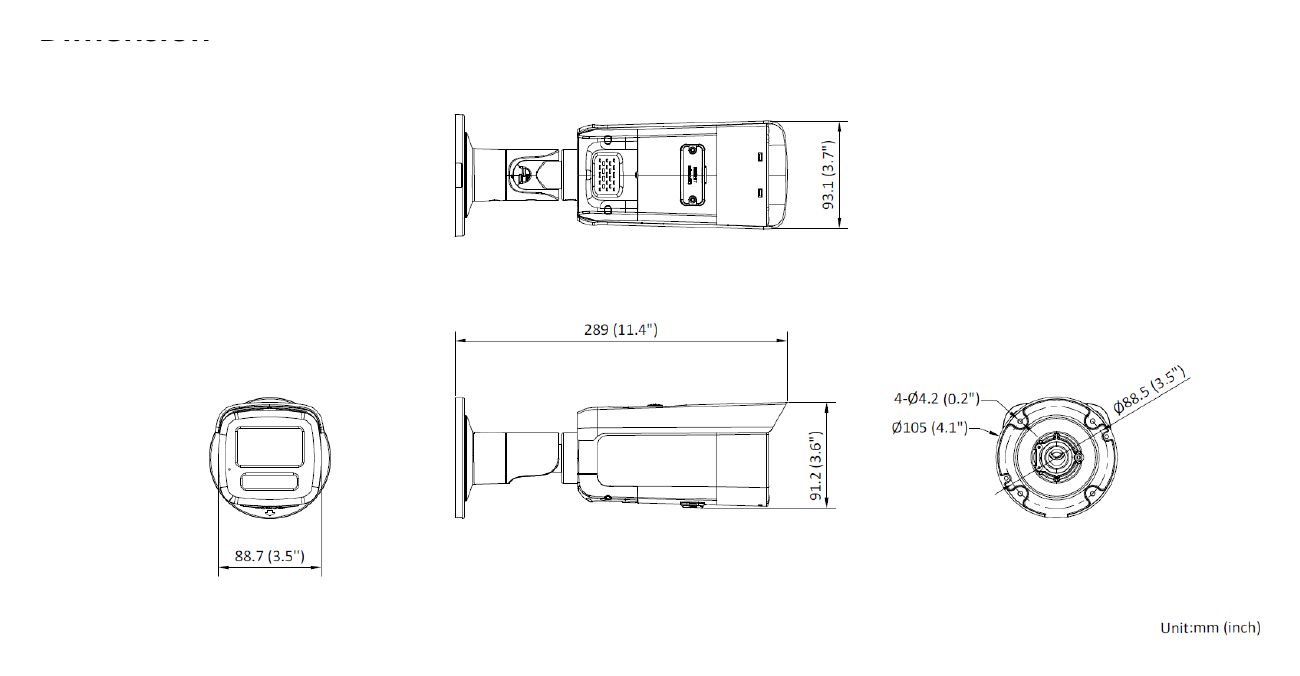

尺寸	289 mm × 93.1 mm × 91.2 mm (11.4" × 3.7" × 3.6")
包裝尺寸	386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
重量	Approx. 1195 g (2.6 lb.)
連包裝重量	Approx. 1704 g (3.8 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
一般功能	Heartbeat, anti-flicker, mirror, flash log, password reset via email, pixel counter
Flashing Light	Yes FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
