HIKVISION DS-2CD2387G2P-LSU/SL 安裝、保養、維修

Name: HIKVISION DS-2CD2387G2P-LSU/SL ColorVu 8MP 全景半球網絡攝影機
Brand: Hikvision
SKU: DS-2CD2387G2P-LSU/SL

產品簡介

Hikvision DS-2CD2387G2P-LSU/SL 為8 MP Panoramic Fixed Turret Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD2387G2P-LSU/SL 香港價格連安裝報價。

影像感測器：2 × 1/1.8" Progressive Scan CMOS
最大解像度：5120 × 1440
最低照度：Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
快門速度：1/3 s to 1/100,000 s
角度調節：Pan: 0° to 30°, tilt: -75° to 75°

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-2CD2387G2P-LSU/SL Hikvision ColorVu 8MP 全景半球網絡攝影機產品圖片

詳細規格

影像感測器	2 × 1/1.8" Progressive Scan CMOS
最大解像度	5120 × 1440
最低照度	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
快門速度	1/3 s to 1/100,000 s
角度調節	Pan: 0° to 30°, tilt: -75° to 75°
鏡頭類型	Fixed focal lens, Dual lens: 4 mm
鏡頭及視場角	4 mm, horizontal FOV: 180°, vertical FOV: 44°
鏡頭接口	M16
光圈類型	Fixed
光圈	F1.0
Depth of Field	3.6 m to ∞
DORI 偵測距離	4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
補光類型	White Light
補光距離	Up to 30 m
智能補光	Yes When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440) When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.26
視頻碼率	32 Kbps to 16 Mbps
H.264 類型	Baseline Profile, Main Profile, High Profile
H.265 類型	Main Profile
碼率控制	CBR, VBR
SVC 分級編碼	H.264 and H.265 encoding
感興趣區域 ROI	1 fixed region for main stream
Audio Type	Mono sound
音訊壓縮	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
音訊取樣率	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
環境噪音過濾	Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
網絡協議	UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for
安全	HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,
網絡儲存	Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
客戶端	iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11 ,
瀏覽器	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
圖像參數切換	Yes saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
日夜模式	Day, Night, Auto, Schedule
寬動態 WDR	130 dB
信噪比 SNR	≥ 52 dB
影像增強	BLC, HLC, 3D DNR
隱私遮蔽	8 rectangular privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
內置麥克風	Yes
Built-in Speaker	Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
警報	1 input, 1 output (max. 24 VDC, 1 A)
重設鍵	Yes Motion detection (support alarm triggering by specified target types (human and
基本事件	vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
智能事件	scene change detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø 5.5 mm coaxial power plug, PoE: IEEE 802.3af
材質	Base: metal, cover: metal

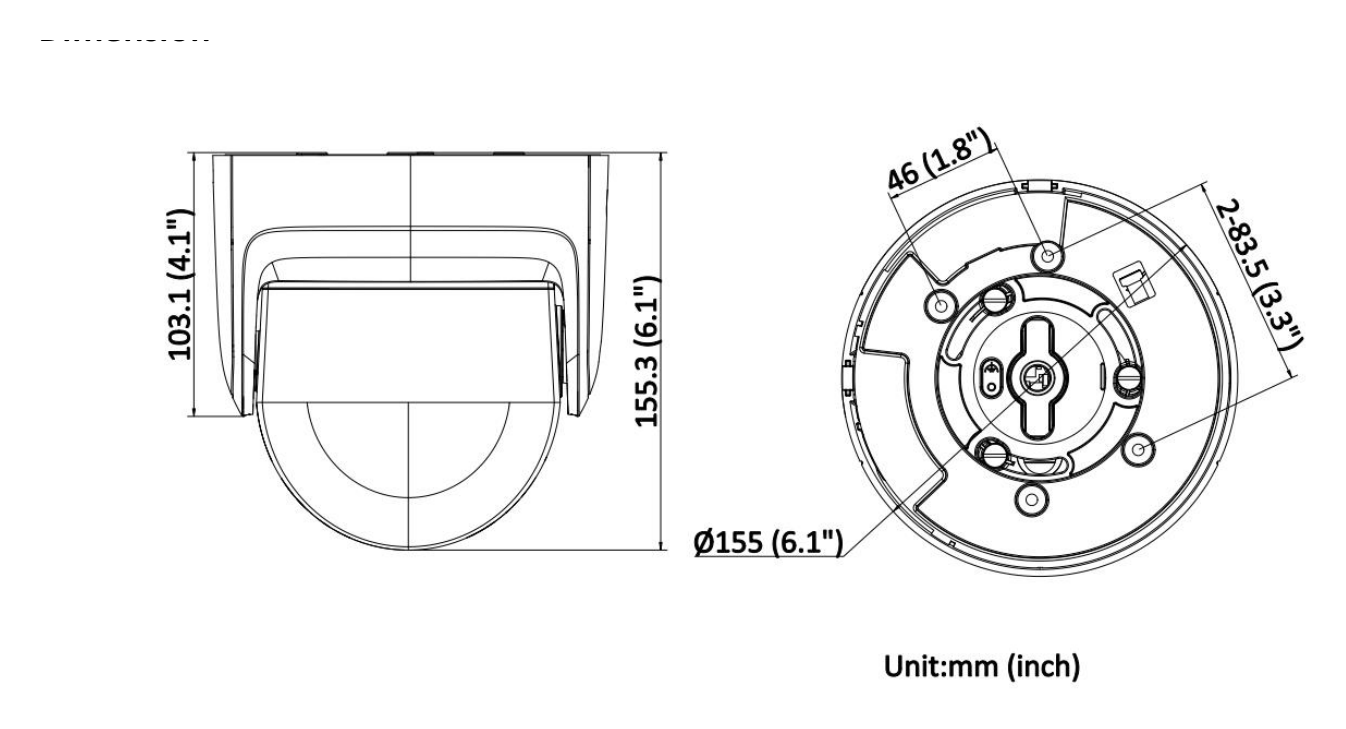

尺寸	Ø 155 mm × 155.3 mm (Ø 6.1" × 6.1")
包裝尺寸	230 mm × 230 mm × 230 mm (9" × 9" × 9")
重量	Approx. 1110 g (2.4 lb.)
連包裝重量	Approx. 1900 g (4.2 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
一般功能	Anti-banding, heartbeat, password reset via email, password protection, one-key reset
Flashing Light	Yes FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
EMC	50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 UL: UL 62368-1,
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
