| 機身 | Metal material, fan-free design |
|---|
| 淨重 | 0.4 kg (0.9 lb) |
|---|
| 毛重 | 0.9 kg (2.0 lb) |
|---|

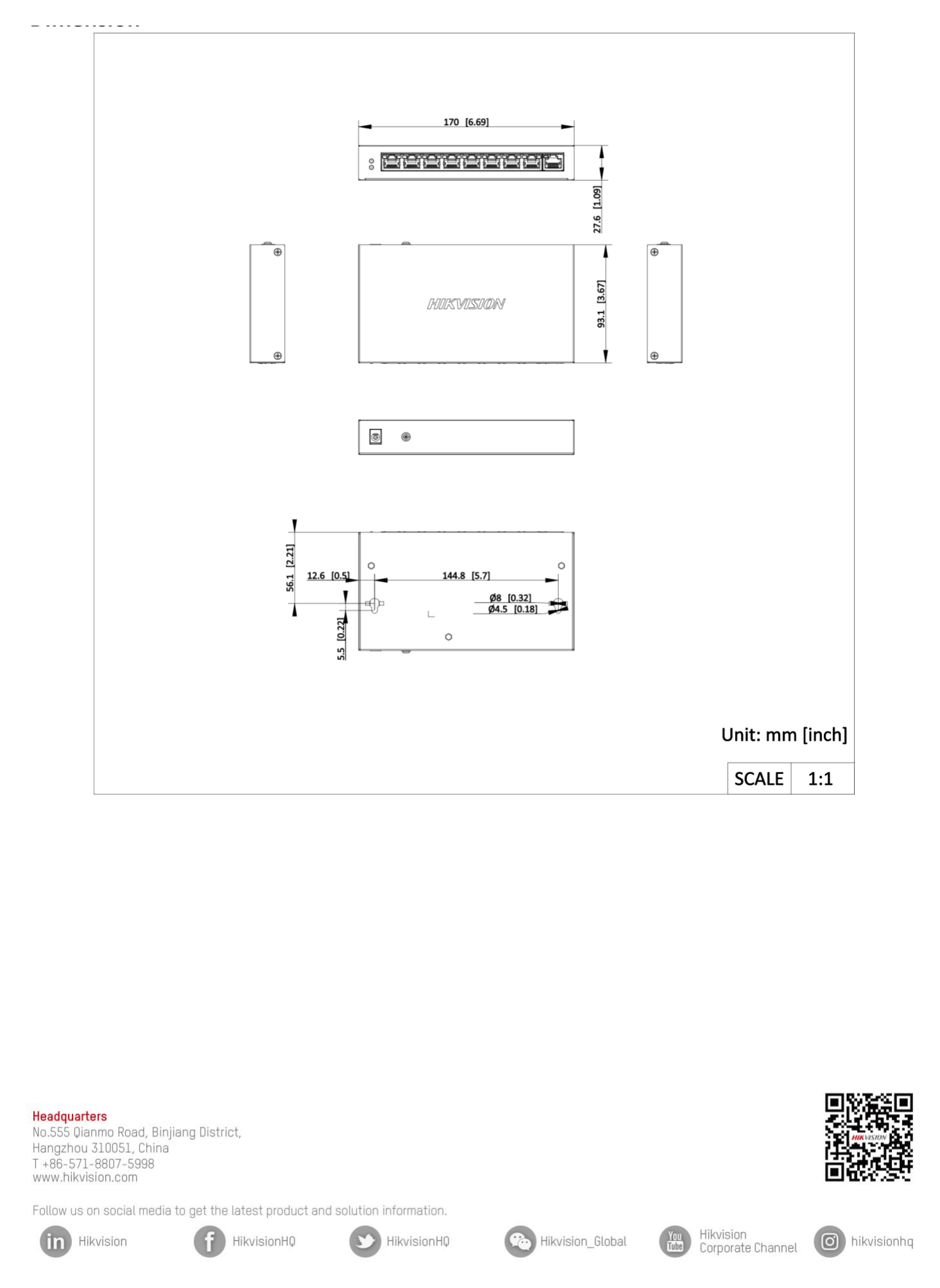

| 尺寸 | 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'') |
|---|
| 工作溫度 | 0 °C to 40 °C (32 °F to 104 °F) |
|---|
| 儲存溫度 | -40 °C to 85 °C (-40 °F to 185 °F) |
|---|
| 工作濕度 | 5% to 95% (no condensation) |
|---|
| 相對濕度 | 5% to 95% (no condensation) |
|---|
| 供電 | 54 V DC, 1.2 A |
|---|
| 安裝方式 | Desk-Mounted,Wall-Mounted |
|---|
| 最大功耗 | 65 W |
|---|
| 閒置功耗 | 5W |
|---|
| 防雷 | 6 kV |
|---|
| Ports | 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port |
|---|
| MAC 位址表 | 8K Whole-Device Performance: 5.6 Gbps Port Performance: 3.6 Gbps Whole-Device Performance: 4.17 Mpps Port Performance: 2.68 Mpps |
|---|
| 內部緩存 | 4 Mbits |
|---|
| PoE 標準 | IEEE 802.3af,IEEE 802.3at |
|---|
| PoE 供電腳位 | End-span: 1/2(-), 3/6(+) |
|---|
| PoE 埠 | PoE: Ports 1 to 8 |
|---|
| 單埠最大功率 | 30 W |
|---|
| PoE 功率預算 | 60 W Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. |
|---|
| Port Isolation | Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. System Maintenance Support remote management via Hik-Partn |
|---|
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Loop Prevention Support 802.1D STP. Suppport 802.1w RSTP. VLAN is used for network scale planning and network health improvement. Support 802.1Q. |
|---|
| VLAN | Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|---|
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
|---|
