HANWHA SCB-6001-ENG-2P CCTV攝影機安裝・保養

Name: HANWHA SCB-6001-ENG-2P 1080p
Brand: hanwha
SKU: SCB-6001-ENG-2P

產品簡介

hanwha SCB-6001-ENG-2P 為1080p，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SCB-6001-ENG-2P 香港價格連安裝報價。

Imaging Device：1/3" Progressive scan CMOS
Total Pixels：2,010(H) x 1,108(V), 2.2M pixels
Effective Pixels：1,944(H) x 1,092(V), 2.1M pixels
Scanning System：Progressive Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60
S / N Ratio：50dB (AGC off, Weight on)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Imaging Device	1/3" Progressive scan CMOS
Total Pixels	2,010(H) x 1,108(V), 2.2M pixels
Effective Pixels	1,944(H) x 1,092(V), 2.1M pixels
Scanning System	Progressive Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x) Min. Illumination B/W : 0.1Lux (F1.2, 50IRE), 0.0017Lux (Sens-up 60x)
S / N Ratio	50dB (AGC off, Weight on)
Video Output	SMPTE292M (HD-SDI), Monitoring CVBS
鏡頭類型	Manual / DC auto iris / P-iris
Mount Type	C / CS
Auto Back Focus (ABF)	Built-in Operational English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish, Danish, Portuguese, On Screen Display Japanese, Serbian, Czech, Romanian, Turkish
Camera Title	Off / On (Displayed up to 15 characters)
日夜切換	Auto (ICR) / External / Color / B/W
Backlight Compensation	Off / User BLC / HLC / WDR
寬動態 WDR	100dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRIII (Off / On)
Digital Image Stabilization	Off / On
尺寸	Unit : mm (inch) Motion Detection Off / On
Privacy Masking	Off / On (4ea polygonal + 16ea rectangular zones)
Sens-up (Frame Integration)	2x ~ 60x
Gain Control	Off / Low / Medium / High HD-SDI
供電	White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) 1 : GND 2 : EXT_D/N 3 : MD_OUT 4 : RS_485+
Electronic Shutter Speed	ESC / A.FLK / Manual 5 : RS_485-
Digital Zoom	Off / On (1x ~ 16x)
Reverse	Off / H-Rev / V-Rev / HV-Rev
Profile	Built-in 66.6 (2.62")
PIP	Off / On (2.62")
Intelligent Video Analytics	Tampering, Virtual line, Enter/Exit, Appear / Disappear 66.6
警報	(MD) output 1, External D/N in 1
Remote Control Interface	RS-485 73.1 (2.88") 73.1 (2.88") 147.8 (5.82") 147.8 (5.82") Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE Environmental
Operating Temperature / Humidity	-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Accessory (Optional)	Electrical
Input Voltage / Current	Dual (24V AC & 12V DC ±10%)
功耗	Max. 6W
Color / Material	Ivory / Plastic
Dimensions (WxHxD)	73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
重量	321g (0.71 Ib)

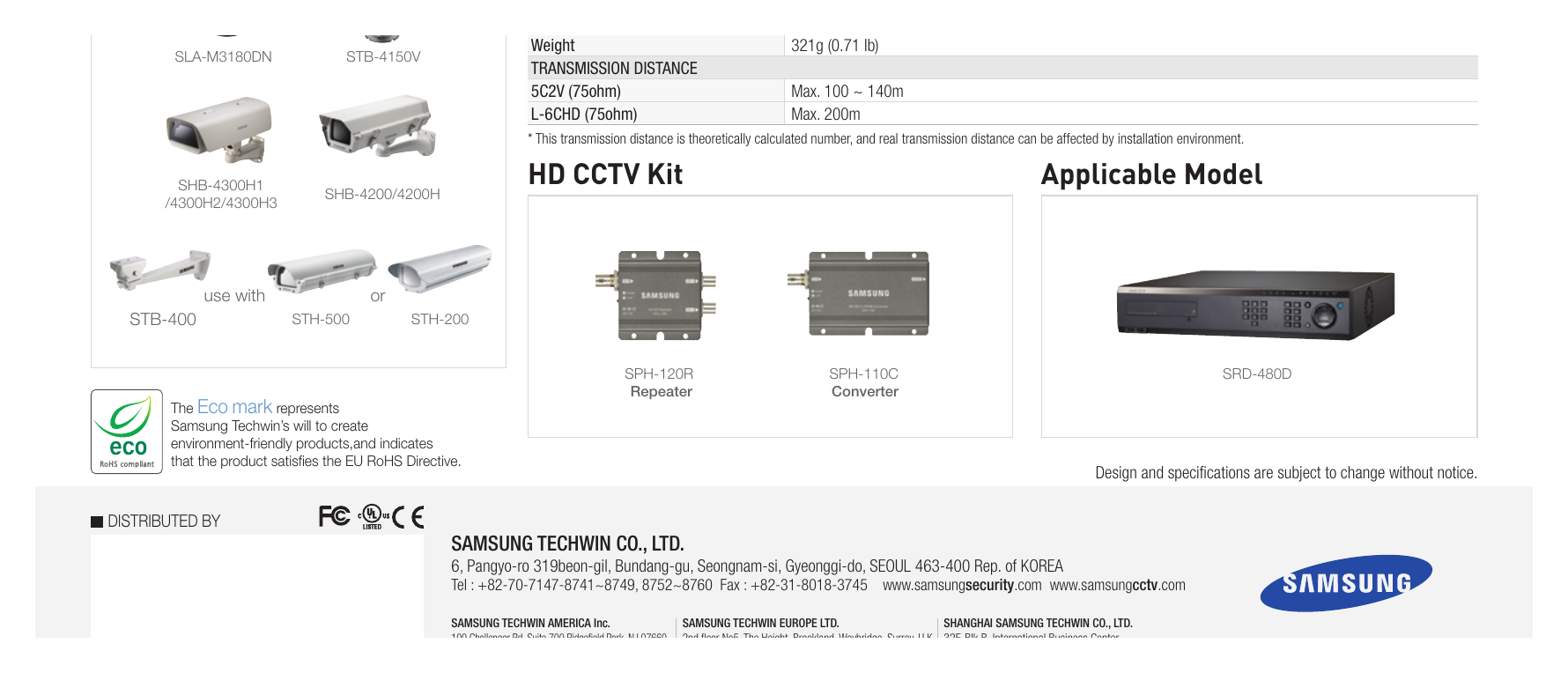

SLA-M3180DN	STB-4150V Transmission Distance 5C2V (75ohm) Max. 100 ~ 140m
L-6CHD (75ohm)	Max. 200m * This transmission distance is theoretically calculated number, and real transmission distance can be affected by installation environment. SHB-4300H1 SHB-4200/4200H
HD CCTV Kit	Applicable Model /4300H2/4300H3
use with	or
STB-400	STH-500 STH-200
SPH-120R	SPH-110C SRD-480D
Repeater	Converter The Eco mark represents Samsung Techwin’s will to create environment-friendly products,and indicates that the product satisfies the EU RoHS Directive. Design and specifications are subject to change without notice. DISTRIBUTED BY SAMSUNG TECHWIN CO., LTD. 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA Tel : +82-70-7147-8741~8749, 8752~8760 Fax
SAMSUNG TECHWIN AMERICA Inc.	SAMSUNG TECHWIN EUROPE LTD. SHANGHAI SAMSUNG TECHWIN CO., LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 2nd floor No5. The Height, Brookland, Weybridge, Surrey, U.K. 32F, Blk B, International Business Center, Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 KT13 0NY No. 391 Guiping Rd., Shanghai, China, 200233
Fax : +1-201-373-0124	Tel : +44-1932-82-6700 Fax: +44 1932 82 6701 Tel : +86-21-5427-1155 Fax : +86-21-5423-5122
