Uniview IPC3235SB-ADZK-I0 為IPC3235SB-ADZK-I0，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC3235SB-ADZK-I0 香港價格連安裝報價。
| Max Resolution | 5 MP |
|---|---|
| Sensor | 1/2.7" CMOS |
| 最低照度 | Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 80°, Rotate: 0° to 355° |
| S/N | > 56 dB |
| WDR | 120 dB |
| 焦距 | 2.7 to 13.5 mm |
| Field of View (H) | 106.3° to 32.5° |
| 光圈類型 | Fixed |
| Iris | F1.2 |
| Field of View (V) | 53.5° to 18.0° |
| Field of View (D) | 126.0° to 38.5° |
| 鏡頭類型 | Motorized |
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 60.8 m to 303.8 m (199.5 ft. to 996.7 ft.) |
| DORI Distance (Observe) | 24.3 m to 121.5 m (79.7 ft. to 398.6 ft.) |
| DORI Distance (Recognize) | 12.2 m to 60.8 m (40.0 ft. to 199.5 ft.) |
| DORI Distance (Identify) | 6.1 m to 30.4 m (20.0 ft. to 99.7 ft.) |
| Supplemental Light | IR |
| Illumination Distance (IR) | 40 m (131.2 ft.) |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 5 MP (2880 × 1620), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; |
| Frame Rate | Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Smart IR | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Statistical Analysis | N/A |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| 音訊壓縮 | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) CE LVD (EN 62368-1) |
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); IP67 (IEC 60529) IK10 (IEC 62262) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 7.0 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø148.0 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) |
| 重量 | 0.97 kg (2.12 lb.) |
| 材質 | Metal |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| TR-JB04-C-IN | TR-FM152-A-IN TR-SM04-IN |
| Junction Box for 323 Series | In-ceiling Bracket for 323 Series Switch Box Adapter for 323 Series |
| Fix-dome(Support wiring from behind) | Fix-dome Fix-dome |
| TR-A01-IN | TR-UC08-C-V2 TR-JB07/WM04-B-IN-V2 4 Inch Back Hole Hemisphere Wall |
| NPT 3/4'' Waterproof Cable Gland | Bullet&Dome Corner Mounting Bracket Mounting Assembling Bracket |
| TR-WM04-IN-V2 | TR-CM24-IN TR-SE24-A-IN 4 Inch Hemisphere Wall Mounting Bracket Dome Pendent Mounting Bracket(Indoor) Dome Pendent Mounting Pole 500mm |
| TR-SE24-IN | TR-UP06-C-IN-V2 Pole Mounting Bracket for Bullet Junction Dome Pendent Mounting Pole 200mm Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

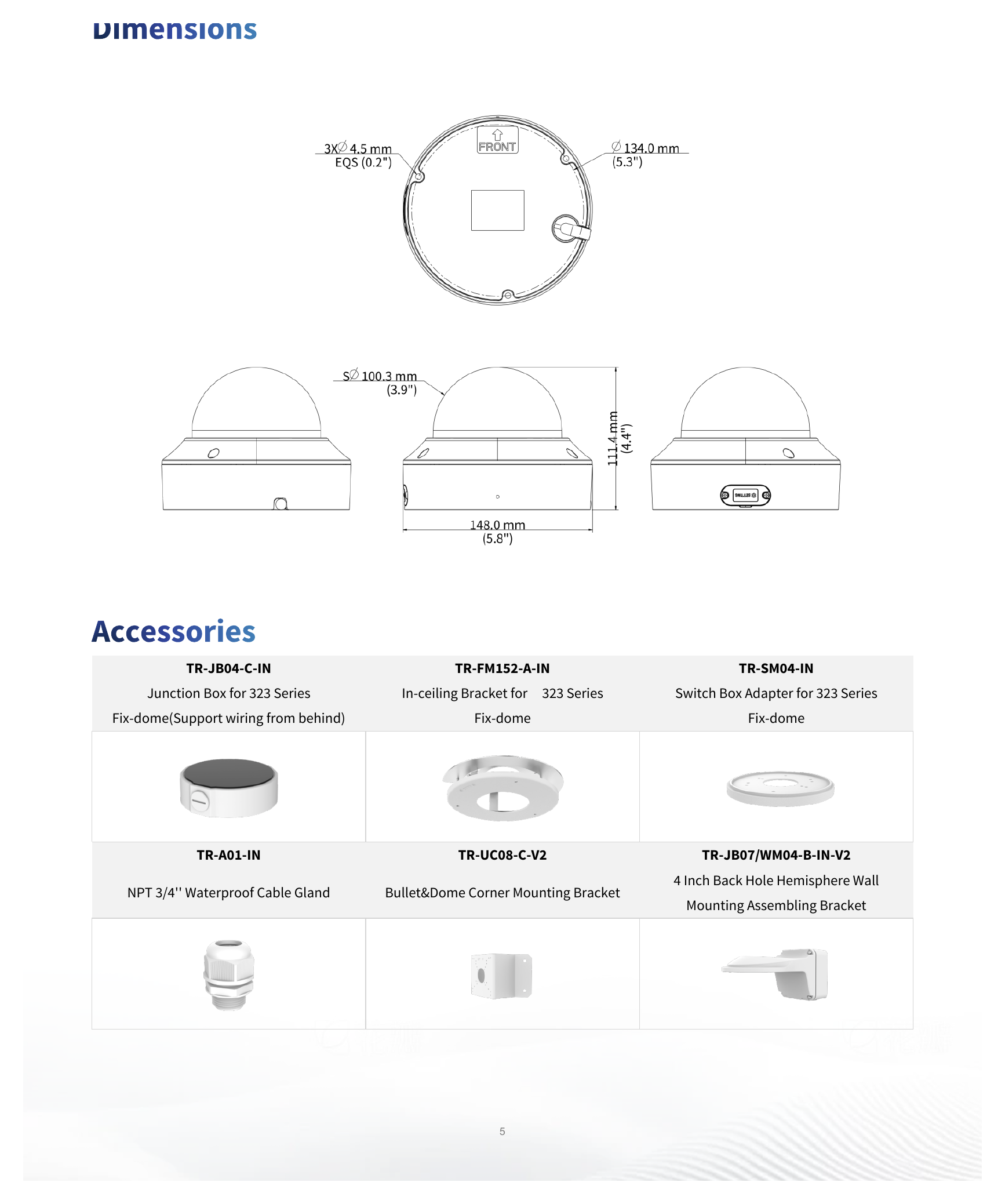

Ø148.0 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H)｜重量 0.97 kg (2.12 lb.)｜Unit: mm
IPC3235SB-ADZK-I0 Uniview IPC3235SB-ADZK-I0亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC3235SB-ADZK-I0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC3235SB-ADZK-I0 係 1/2.7" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC3235SB-ADZK-I0 係 Auto/Manual, 1 ~ 1/100000s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC3235SB-ADZK-I0 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
