| Network Dome Camera | Imaging Device 1/3" 1.3M PS CMOS |
|---|
| Total Pixels | 1,384(H) x 1,076(V) |
|---|
| Effective Pixels | 1,329(H) x 1,049(V) |
|---|
| Scanning System | Progressive Color : 0.3Lux (F1.2, 50IRE), 0.005Lux (Sens-up 60x) Min. Illumination B/W : 0.01Lux (F1.2, 50IRE), 0.0002Lux (Sens-up 60x) |
|---|
| S / N Ratio | 50dB |
|---|
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation |
|---|
| Focal Length (Zoom Ratio) | 2.8 ~ 10mm (3.6x) varifocal |
|---|
| Max. Aperture Ratio | F1.2 |
|---|
| Angular Field of View | H : 94.6°(Wide) ~ 28.8°(Tele) / V : 68.4°(Wide) ~ 21.6°(Tele) |
|---|
| 鏡頭類型 | DC auto iris |
|---|
| Mount Type | Board-in type Pan / Tilt / Rotate |
|---|
| Pan Range | 0° ~ 355° |
|---|
| Tilt Range | 0° ~ 90° |
|---|
| Rotate Range | 0° ~ 355° Operational |
|---|
| Camera Title | Off / On (Displayed up to 15 characters) |
|---|
| 日夜切換 | Auto (ICR) / Color / B/W / External B/W |
|---|
| Backlight Compensation | Off / BLC / HLC |
|---|
| Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) |
|---|
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
|---|
| Motion Detection | Off / On (4 programmable zones) |
|---|
| Key Features | Privacy Masking Off / On (12 programmable zones) |
|---|
| Sens-up (Frame Integration) | Off / Auto (2x ~ 60x) |
|---|
| • Max. 1.3M (1280 x 1024) resolution | Gain Control Off / Low / Medium / High / Manual |
|---|
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
|---|
| • 16 : 9 HD (720p) resolution support | Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 30,000sec) |
|---|
| • 2.8 ~ 10mm (3.6x) varifocal lens | Flip / Mirror Off / On |
|---|
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, Appear / Disappear |
|---|
| • H.264, MPEG-4, MJPEG multiple codec | Alarm I/O Input 1ea / Output 1ea |
|---|
| • Multiple streaming | Network |
|---|
| Ethernet | RJ-45 (10/100BASE-T) |
|---|
| • Intelligent video analytics | Video Compression Format H.264, MPEG-4, MJPEG H.264, MJPEG : 30fps Max. Framerate MPEG-4 : 25fps (1280 x 1024), 30fps (720P HD) H.264, MPEG-4 : Compression level, Target bitrate level control |
|---|
| 尺寸 | Unit : mm (inch) Video Quality Adjustment MJPEG : Quality level control |
|---|
| Bitrate Control Method | H.264, MPEG-4 : CBR or VBR, MJPEG : VBR |
|---|
| Ø160.0 (6.3") | Streaming Capability Multiple streaming (Up to 10 profiles) Ø160.0 (6.3") |
|---|
| Audio Compression Format | G.711 u-law |
|---|
| Audio Communication | Bi-directional audio |
|---|
| IP | IPv4, IPv6 (5.3") (5.3") TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE (5.3") FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS 134.5 134.5 134.5 HTTPS(SSL) login authentication, Digest login authentication Security IP address filtering, User access log, 802.1x authentication |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Max. User Access | 10 users at unicast mode Ø160.0 (6.3") |
|---|
| Webpage Language | Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, (4.92") (4.92") |
|---|
| Flush Type | Croatian, Hungarian, Greek, Finnish, Norwegian (4.92") Supported OS : Windows XP / VISTA / 7, MAC OS 125.0 Web Viewer 125.0 125.0 Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari |
|---|
| Central Management Software | SmartViewer Environmental |
|---|
| Operating Temperature / | 24V AC : -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH (Heater on) |
|---|
| Humidity | 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH (Heater off) |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | IK10 Electrical |
|---|
| Input Voltage / Current | 12V DC, 24V AC, PoE (IEEE802.3af) |
|---|

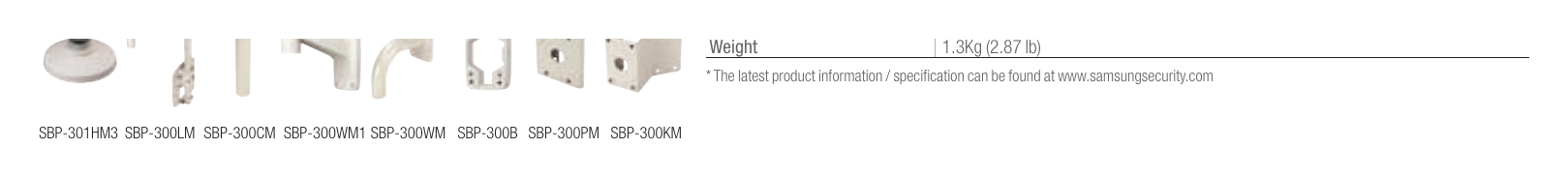

| Accessories (Optional) | Power Consumption Max. 8W (Heater off), Max. 11W (Heater on) * Heater works at AC input only |
|---|
| Color / Material | Ivory / Aluminum |
|---|
| Dimensions (WxH) | Ø160.0 x 134.5mm (Ø6.3" x 5.3") |
|---|
| 重量 | 1.3Kg (2.87 lb) * The latest product information / specification can be found at www.samsungsecurity.com REVISED 03-2014 |
|---|
