| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|
| 解像度 | 256 × 192 (the resolution of output image is 1280 × 720) |
|---|
| Pixel Interval | 12 μm |
|---|
| Response Waveband | 8 μm to 14 μm |
|---|
| NETD | Less than 35 mK (@25 °C,F#=1.0) |
|---|
| 焦距 | 7 mm |
|---|
| Focus Mode | Athermalized |
|---|
| IFOV | 1.71 mrad |
|---|
| 光圈 | F1.0 |
|---|
| Field of View | 25.0° x18.8° (H × V) |
|---|
| Min. Focusing Distance | 1.0m |
|---|
| Digital Zoom | ×2, ×4, ×8 |
|---|
| 最低照度 | Color: 0.05 Lux @(F1.2，AGC ON), B/W: 0.01 Lux @(F1.2，AGC ON) |
|---|
| Aperture (Range) | F1.2-F4.4 |
|---|
| 快門速度 | 1s to 1/100,000s |
|---|
| WDR | 120 dB |
|---|
| Optical Defog | No, support algorithmic defog |
|---|
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
|---|
| Target Coloration | Supported in white hot and black hot mode. |
|---|
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip) |
|---|
| 水平速度 | Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s |
|---|
| 垂直速度 | Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s |
|---|
| Proportional Zoom | Yes |
|---|
| 預置位 | 300 in total, 273 are configurable. |
|---|
| 巡航掃描 | 8; Up to 32 Presets Per Patrol |
|---|
| 花樣掃描 | 4; More Than 10 Minutes Per Pattern |
|---|
| Power Off Memory | Yes Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
|---|
| PT Status | Turn On/Turn Off Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output |
|---|
| IR Distance | Up to 100m |
|---|
| IR Intensity and Angle | Automatically adjusted Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) |
|---|
| Temperature Range | -20 °C to 550 °C (-4 °F to 1022 °F) |
|---|
| Temperature Accuracy | Max (±2 °C, ±2 %) |
|---|
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable. Optical channel 50 Hz:25 fps (2688 × 1520，1920×1080, 1280×960, 1280×720) |
|---|
| 主碼流 | 60 Hz:30 fps (2688 × 1520，1920×1080, 1280×960, 1280×720) Thermal channel 25 fps (1280×720, 704 × 576, 640 ×512, 256× 192) Optical channel 50 Hz:25 fps (704 × 576, 352 × 288) |
|---|
| 子碼流 | 60 Hz:30 fps (704 × 576, 352 × 288) Thermal channel 25 fps (704 × 576, 640 ×512, 256 × 192) Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| 音訊壓縮 | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T) |
|---|
| 同時取流 | Up to 20 channels |
|---|
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Live view (plug-in allowed) : Internet Explorer 11 |
|---|
| 瀏覽器 | Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
|---|
| 警報輸入 | 7-ch inputs (0-3.3 VDC) |
|---|
| 警報輸出 | 2-ch relay outputs, alarm response actions configurable Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart Alarm Action capture/FTP upload/Email linkage LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: Audio Input 1KΩ±10% |
|---|
| 音訊輸出 | Linear Level; Impedance: 600 Ω 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. Communication Interface 1, RS-485 interface |
|---|
| Analog Video Output | 1.0 V [p-p]/75 Ω 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, |
|---|
| 介面語言 | Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) 24VAC ± 20%, two-core terminal block 36VDC ± 20%, two-core terminal block Power Supply 48VDC ± 20%, two-core terminal block Hi-PoE |
|---|
| 功耗 | Max 30 W Working -40°C to 70°C (-40°F to 158°F), 90% or less Temperature/Humidity IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Protection Level Transient Protection |
|---|

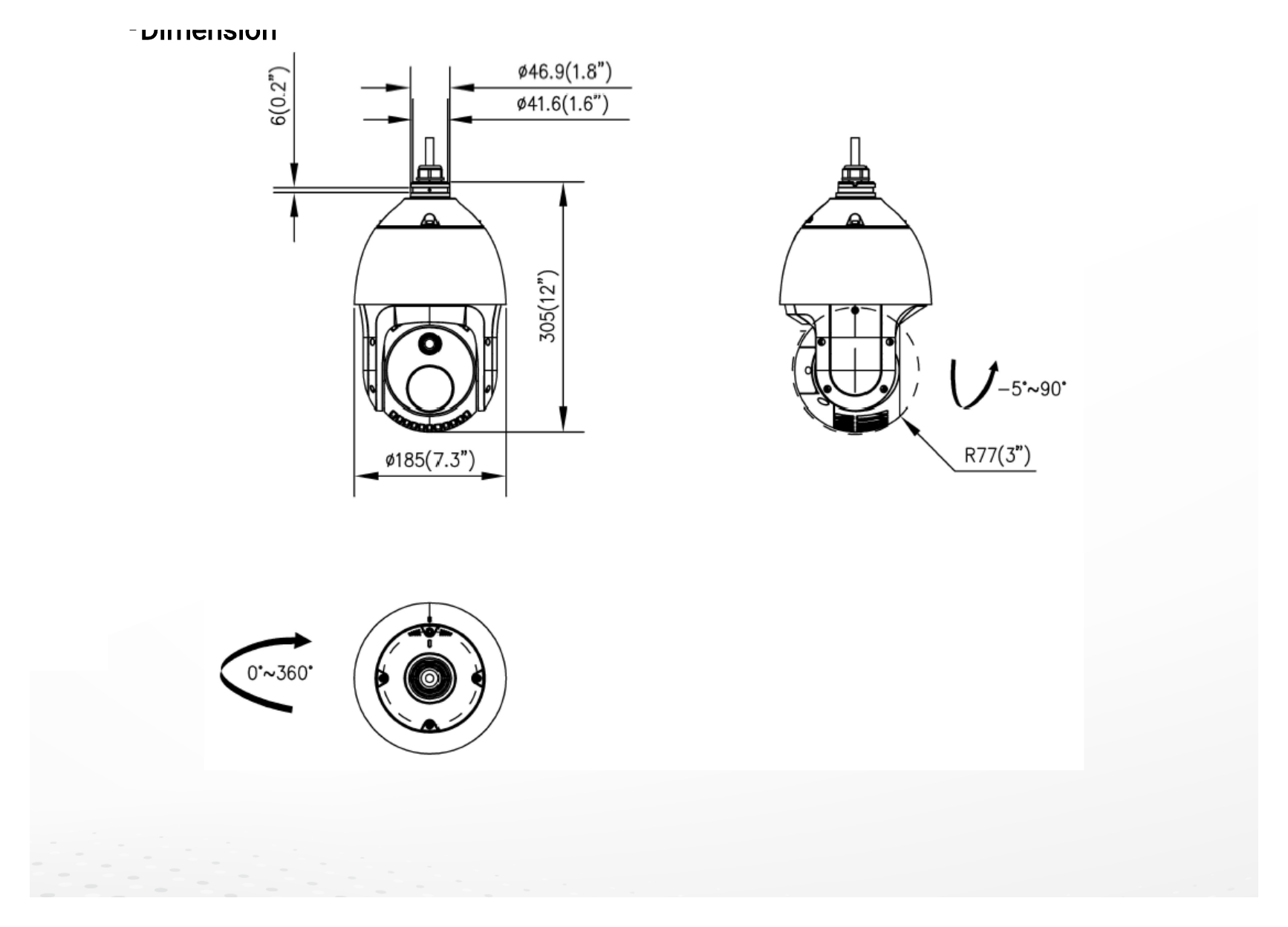

| 尺寸 | 305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ") |
|---|
| 重量 | Approx. 3.9Kg (8.6lb) Detection Range Table |
|---|
| VCA Range for Humans | 56 m |
|---|
| VCA Range for Vehicles | 168 m Range Table |
|---|
| Temperature | Temperature |
|---|
| VCA Range | VCA Range |
|---|
| Measurement | Measurement Fire Detection Fire Detection (Vehicles: 1.4 × (Humans: 1.8 × (Object: 0.5 × (Object: 0.2 × (Object: 2 × 2 m) (Object: 1 × 1 m) 4.0 m) 0.5 m) 0.5 m) 0.2 m) 168 m 56 m 58 m 23 m 583 m 292 m |
|---|
| Detection Range | Detection Range Recognition Recognition Identification Identification (Vehicles: 1.4 × (Humans: 1.8 × Range (Vehicles: Range (Humans: Range (Vehicles: Range (Humans: 4.0 m) 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 894 m 292 m 224 m 73 m 112 m 36 m |
|---|
