Name: HANWHA SCB-2002-ENG-2P 650 TV Lines Camera
Brand: hanwha
SKU: SCB-2002-ENG-2P

產品簡介

hanwha SCB-2002-ENG-2P 為650 TV Lines Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SCB-2002-ENG-2P 香港價格連安裝報價。

SCB-2002N：SCB-2002P SCB-2002PH
Imaging Device：1/3" Super HAD CCD II
Total Pixels：1,028(H) x 508(V) 1,028(H) x 596(V)
Effective Pixels：976(H) x 494(V) 976(H) x 582( V)
Scanning System：2 : 1 Interlace

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

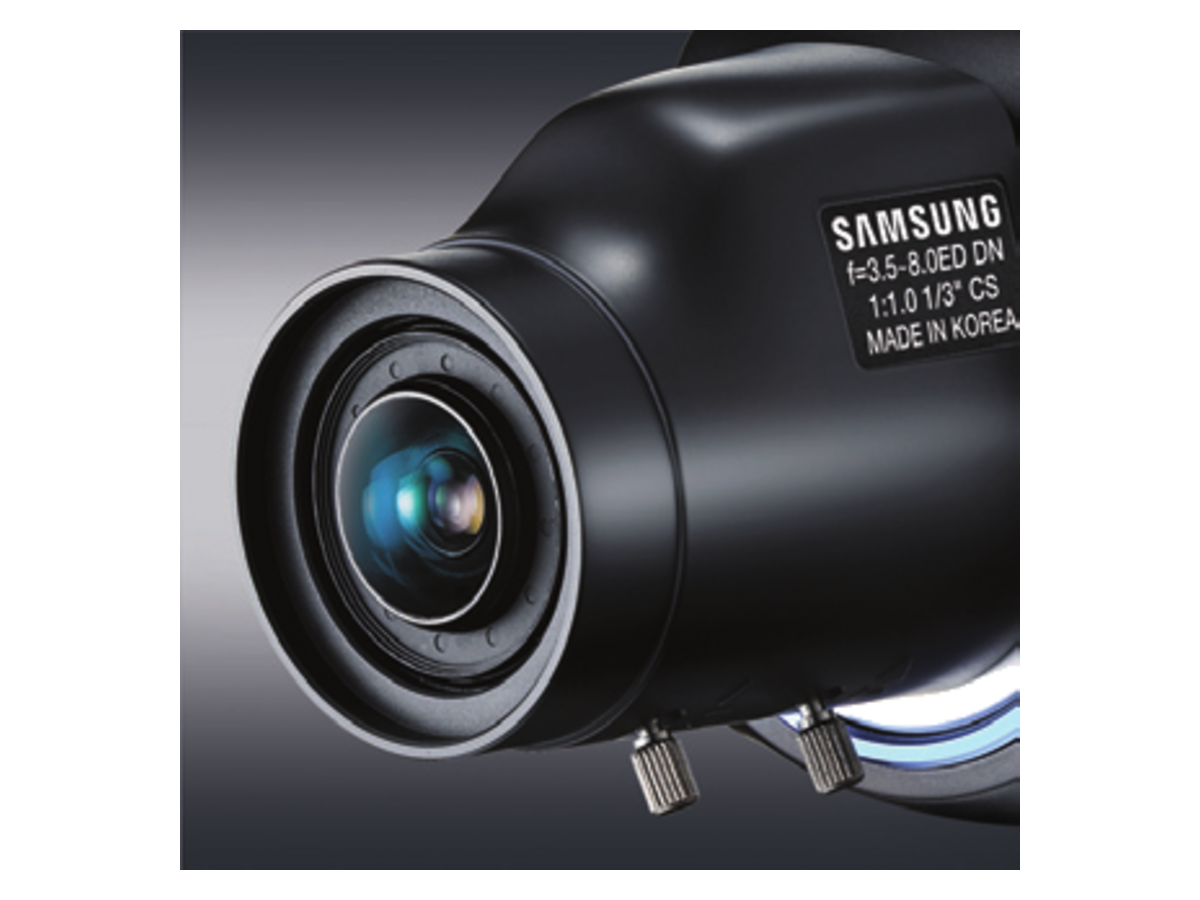

SCB-2002-ENG-2P hanwha 650 TV Lines Camera 產品圖片

詳細規格

SCB-2002N	SCB-2002P SCB-2002PH
Imaging Device	1/3" Super HAD CCD II
Total Pixels	1,028(H) x 508(V) 1,028(H) x 596(V)
Effective Pixels	976(H) x 494(V) 976(H) x 582( V)
Scanning System	2 : 1 Interlace
Synchronization	Internal / Line lock / Extern
Frequency	H :15.734KHz / V :59.94Hz H :15.625KHz / V :50Hz
Horizontal Resolution	Color : 650TV lines, B/W :700TV lines Color : 0.1Lux@F1.2, 0.0002Lux (Sens-up, 512x) Min. Illumination B/W : 0.01Lux@F1.2, 0.00002Lux (Sens-up, 512x)
S / N Ratio	52dB (AGC off, Weight on)
Video Output	CVBS :1.0 Vp-p / 75Ω composite
鏡頭類型	Manual / Auto iris (Video / DC)
Mount Type	C / CS Operational English, Japanese, Spanish,French, English, French, German, Spanish, Italian, Chinese, Russian, Polish, On Screen Display
Portuguese, Korean	Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title	Off / On (Displayed 15 characters)
日夜切換	Auto (ICR) / External / Color / B/W
Backlight Compensation	Off / User BLC / HLC / SSDR
Contrast Enhancement	SSDR
Digital Noise Reduction	SSNRIII (Off / On)
Digital Image Stabilization	Off / On
Motion Detection	Built-in
Privacy Masking	Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration)	2x ~ 512x
Gain Control	Off / Low / High
White Balance	ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
Electronic Shutter Speed	1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom	Off / On (1x ~ 16x)
Reverse	Off / H-Rev / V-Rev / HV-Rev
Profile	Basic / Day & Night / Backlight / ITS / Indoor / User
尺寸	Unit : mm (inch) PIP Off / On
警報	1 Out
Communication	Coaxial control (SPC-300 compatible), RS-485 Coax : Pelco-C (Coaxitron) RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon,GE, AD Environmental Operating Temperature / Humidity -10°C ~ + 50°C ( +14°F ~ +122°F) / Less than 90% RH Electrical 61.0 (2.4")
Input Voltage / Current	Dual ( 24VAC ±10% & 12VDC ±10%) 230VAC ±10%
功耗	Max. 4.2W Max. 4.5W
Color / Material	Black, Silver / Aluminum, Steel 102.0 (4.02") 66.0 (2.6") 113.0 (4.45") Dimensions (WxHxD) 66.0 x 61.0 x 102.0mm (2.6" x 2.4" x 4.02") 66.0 x 61.0 x 115.0mm (2.6" x 2.4" x 4.53")
重量	310g (0.68lb) 540g (1.19lb) The Eco mark represents Samsung Techwin’s will to create environment-friendly products,and indicates that the product satisfies the EU RoHS Directive. Design and specifications are subject to change without notice.
SAMSUNG TECHWIN CO., LTD.	DISTRIBUTED BY 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400 Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745 www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN AMERICA Inc.	SAMSUNG TECHWIN EUROPE LTD. TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Samsung House, 1000 Hillswood Drive, Hillswood Business Park No.11 Wei 6 Street. Micro-Electronic Industrial Park Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 Chertsey, Surrey, UNITED KINGDOM KT16 OPS Jingang Road, Tianjin, P.R. CHINA 300385
Fax : +1-201-373-0124	Tel : +44-1932-45-5300 Fax : +44-1932-45-5325 Tel : +86-22-23887788 Fax : +86-22-23887788 www.samsungcctvusa.com M.E-1112
