| IP Camera Input | 16/32 Channel |
|---|
| Main Processor | Dual-core embedded processor Two-way Talk 1 Channel Input, 1 Channel Output, RCA |
|---|
| 操作系統 | Embedded LINUX Recording |
|---|
| Compression | H.264+/H.264/MJPEG |
|---|
| 接口 | 1 HDMI, 1 VGA, 1TV Resolution 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
|---|
| Record Rate | 200Mbps |
|---|
| 解像度 | 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
|---|
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
|---|
| Multi-screen Display | 1/4/8/9/16 Manual, Schedule (Regular, Continuous), MD Camera title, Time, Video loss, Camera lock, Record Mode (Video detection: Motion Detection, Camera Blank, OSD |
|---|
| Motion detection, Recording | Video Loss), Alarm, Stop |
|---|
| Video Detection and Alarm | Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec Recording, PTZ, Tour, Alarm Out, Video Push, Email, Trigger Events |
|---|
| FTP, Snapshot, Buzzer and Screen Tips | Network Motion Detection, MD Zones: 396 (22 × 18), |
|---|
| Video Detection | Interface 1 RJ-45 Port (10/100/1000Mbps) Video Loss and Camera Blank 16 Channel, Low Level Effective, |
|---|
| 警報輸入 | Ethernet Port 1 Independent 1000Mbps Ethernet Port Green Terminal Interface 4 Channel, NO/NC Programmable, PoE 16 ports (IEEE802.3at/af) Relay Output Green Terminal Interface HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, |
|---|
| Playback and Backup | NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Network Function Alarm Server, IP Search (Support Dahua IP camera, |
|---|
| Playback | 1/4/8/16 DVR, NVS, etc.) |
|---|
| Time /Date, Alarm, MD and Exact Search | Max. User Access 128 users Search Mode (accurate to second), Smart search |
|---|
| Smart Phone | iPhone, iPad, Android Play, Pause, Stop, Rewind, Fast play, Slow Play, |
|---|
| Next File, Previous File, Next Camera, | Interoperability ONVIF 2.4, CGI Conformant Playback Function Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Electrical USB Device/Network/Internal SATA burner/ |
|---|
| Backup Mode | Power Supply AC100V ~ 240V, 50 ~ 60 Hz eSATA Device |
|---|
| Storage | Power Consumption <40W (Without HDD) |
|---|
| Internal HDD | 4 SATA III Ports, Up to 6 TB capacity for each HDD Environmental |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|---|
| HDD Mode | Single |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
|---|
| eSATA | 1 eSATA Port Construction 1.5U, 440mm×419.6mm×76mm Dimensions |
|---|
| USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0 ) (17.3" x 16.5" x 3.0") |
|---|

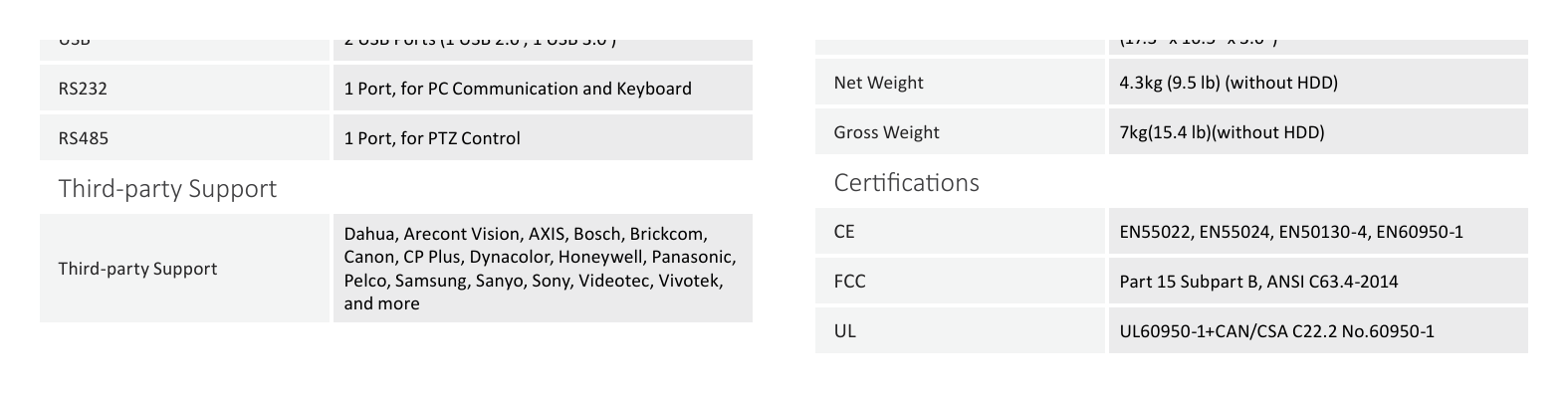

| RS232 | 1 Port, for PC Communication and Keyboard Net Weight 4.3kg (9.5 lb) (without HDD) |
|---|
| RS485 | 1 Port, for PTZ Control Gross Weight 7kg(15.4 lb)(without HDD) |
|---|
| Third-party Support | Certifications Dahua, Arecont Vision, AXIS, Bosch, Brickcom, CE EN55022, EN55024, EN50130-4, EN60950-1 Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Third-party Support Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, FCC Part 15 Subpart B, ANSI C63.4-2014 and more |
|---|
| UL | UL60950-1+CAN/CSA C22.2 No.60950-1 www.dahuasecurity.com |
|---|
| Ordering Information | Dimensions (mm) |
|---|
| 類型 | Part Number Description 440 16 Channel 16PoE 1.5U Lite 16 Channel NVR DHI-NVR4416-16P Network Video Recorder 32 Channel 16PoE 1.5U Lite 32 Channel NVR DHI-NVR4432-16P Network Video Recorder 4 HDDs eSATA Storage (Please confirm |
|---|
| Accessories | ESS1504C with Technical Support for HDD capacity & compatibility) 419.6 Accessories ESS1504C |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice www.dahuasecurity.com |
|---|
