Uniview NVR824-128-R-IX2-8G 為NVR824-R-IX2 Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR824-128-R-IX2-8G 香港價格連安裝報價。
| 解碼格式 | Ultra 265, H.265, H.264 |
|---|---|
| 解碼能力 | 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@20, 10 x 3MP@20, 16 x 1080P@30, 32 x 720P@30, 64 x D1 The resolution of each channel cannot exceed 4096 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| 音訊壓縮 | G.711A, G.711U |
| 入口頻寬 | 768 Mbps |
| 出口頻寬 | 768 Mbps |
| Max Remote Users | 128 |
| TCP/IP, P2P, | UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, |
| NFS, 802.1x, | IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| IP 視頻輸入 | 128-ch 256-ch |
| RCA Audio Input | 1-ch |
| Ip Speaker | 16-ch |
| POS | All channels |
| Video Output | Support 2-ch HDMI, 1-ch VGA, HDMI1 and HDMI2 and VGA independent output 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch VGA: 1/4/6/8/9/16/25/36; HDMI: 1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| 雙向語音 | 1-ch, RCA (Using the audio input and output) |
| FTP/Schedule/Event | Full-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video |
| Snapshot | resolution) |
| 錄影解像度 | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF 16-ch All channels (up to 64 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting Face Detection, Face Comparison, People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Smart Intrusion Prevention (SIP), B |
| VCA Search | Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, SmartSearch+, AcuSearch, AcuTrack, SeekFree All channels with UNV SIP/UMD Camera|Up to All channels with UNV SIP/UMD Camera|Up to 192-ch with normal camera (UNV and |
| Acu Search Performance | 96-ch with normal camera (UNV and Third-part Third-part brand, 192-ch 2MP, 96-ch 4MP, brand, 96-ch 2MP, 48-ch 4MP, 24-ch 4K) 48-ch 4K) All channels with UNV SIP/UMD Camera|Up to All channels with UNV SIP/UMD Camera|Up to 192-ch with normal camera (UNV and |
| Acu Track Performance | 96-ch with normal camera (UNV and Third-part Third-part brand, 192-ch 2MP, 96-ch 4MP, brand, 96-ch 2MP, 48-ch 4MP, 24-ch 4K) 48-ch 4K) All channels with UNV SIP/UMD Camera|Up to All channels with UNV SIP/UMD Camera|Up to 192-ch with normal camera (UNV and |
| SeekFree Performance | 96-ch with normal camera (UNV and Third-part Third-part brand, 192-ch 2MP, 96-ch 4MP, brand, 96-ch 2MP, 48-ch 4MP, 24-ch 4K) 48-ch 4K) |
| SeekFree Language | English |
| All channels with UNV Face Detection | All channels with UNV Face Detection Camera|Up to 96-ch with normal camera (UNV Camera|Up to 192-ch with normal camera and Third-part brand, 96-ch 2MP, 48-ch 4MP, (UNV and Third-part brand, 192-ch 2MP, 96-ch 24-ch 4K) 4MP, 48-ch 4K) |
| Search by Image | Support |
| Plate Comparion by NVR | All channels with UNV LPR Camera, normal/Third-part brand cameras not supported |
| Plate Library | Up to 5 plate libraries, with up to 25000 plates in total |
| Up to 96-ch with normal camera (UNV and | Up to 192-ch with normal camera (UNV and Third-part brand, 96-ch 2MP, 48-ch 4MP, 24-ch Third-part brand, 192-ch 2MP, 96-ch 4MP, 4K) 48-ch 4K) N/A |
| analysis with normal cameras | Up to 96-ch with normal camera (UNV and Up to 192-ch with normal camera (UNV and Third-part brand, 96-ch 2MP, 48-ch 4MP, 24-ch Third-part brand, 192-ch 2MP, 96-ch 4MP, 4K) 48-ch 4K) No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay |
| analysis Type | Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, People Gathering, People Dispersion, No Reflective Clothing Detection, Quick Moving, Knife/Stick in Hand Detection |
| Alert Alarm | Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded |
| SATA | 24 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |
| 網絡接口 | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| eSATA | 1 |
| miniSAS | 2 |
| 電源輸出 | 12 V |
| Extension Board | 4 |
| Buzzer | Support |
| 供電 | AC 100 to 240 V |
| Power Switch | Support |
| Redundant Power Supply | Support |
| 工作溫度 | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉) |
| 工作濕度 | ≤ 90% RH (non-condensing) ≤350W |
| Weight (without HDD) | 15KG |
| Height | 4U |

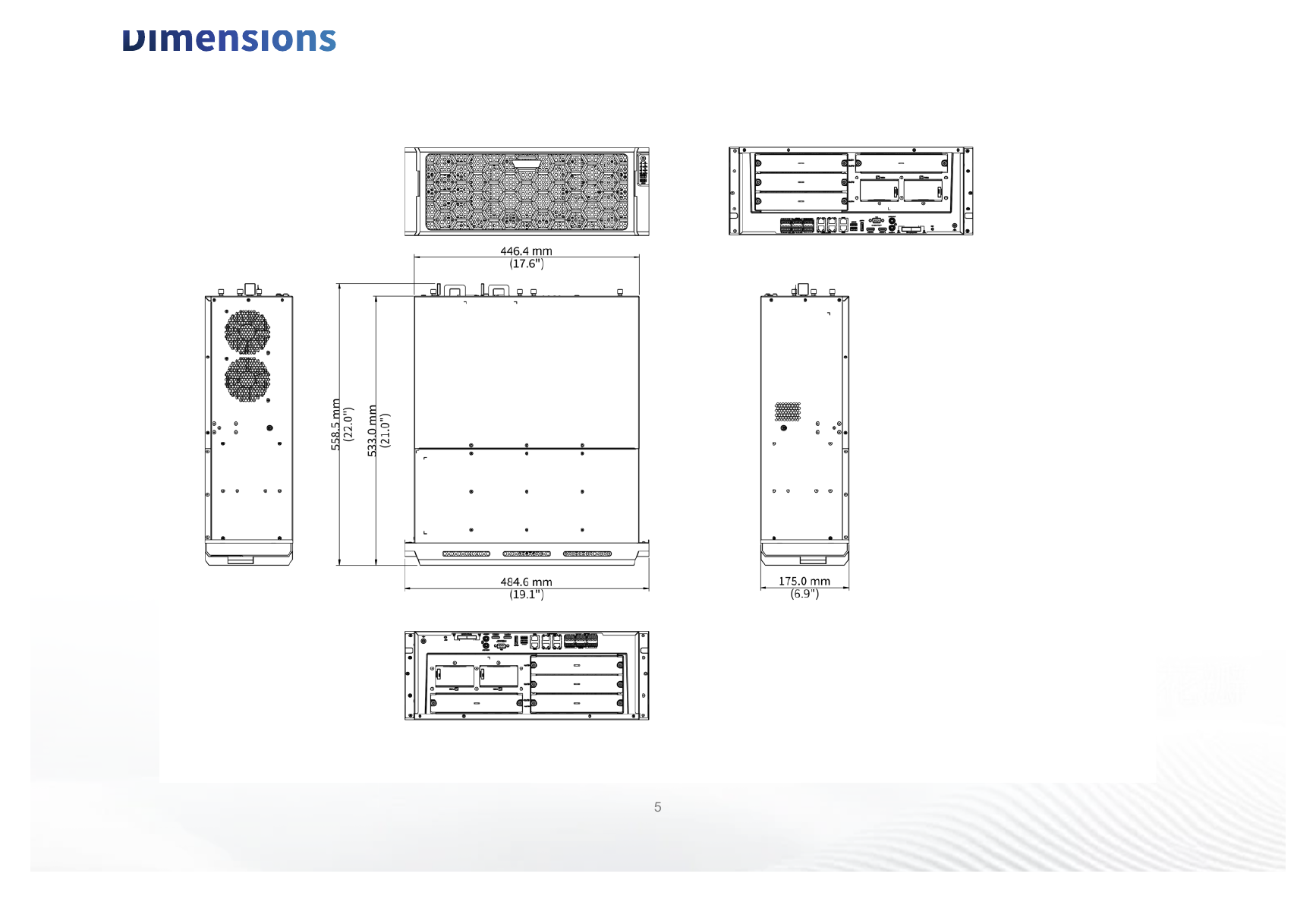

| 尺寸 | 482mm × 559mm × 175mm (19.0" × 22.0" × 6.9" ) 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, |
| GUI Language | Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| FB-HD04-B-NB | FB-HD07-B-NB DEU1016-B 4-ch HDMI Output Decoding Card 7-ch HDMI Output Decoding Card 16 HDDs 3U Disk Enclosure |
| SL-A | PWR-DC12-550A-IN |
| Slide Rail | 550W Power Accessories Module Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
482mm × 559mm × 175mm (19.0" × 22.0" × 6.9" ) 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese
NVR824-128-R-IX2-8G Uniview NVR824-R-IX2 Series亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，NVR824-128-R-IX2-8G 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 NVR824-128-R-IX2-8G 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 NVR824-128-R-IX2-8G Uniview NVR824-R-IX2 Series供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：藍田CCTV 閉路電視安裝、觀塘CCTV 閉路電視安裝、銅鑼灣CCTV 閉路電視安裝、鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝、青衣CCTV 閉路電視安裝、香港仔CCTV 閉路電視安裝、黃大仙CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 NVR824-128-R-IX2-8G 香港價格連安裝報價。
