Uniview NVR824-128R 為NVR824-R Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR824-128R 香港價格連安裝報價。
| 解碼格式 | Ultra 265, H.265, H.264 3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1 The resolution of each channel cannot exceed 4096 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
|---|---|
| 音訊壓縮 | G.711A, G.711U |
| 入口頻寬 | 768 Mbps |
| 出口頻寬 | 768 Mbps |
| Remote Users | 128 |
| TCP/IP, P2P, | UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| IP 視頻輸入 | 128-ch 256-ch |
| RCA Audio Input | 1-ch 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| 雙向語音 | 1-ch, RCA (Using the audio input and output) |
| FTP/Schedule/Event | Full-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video |
| Snapshot | resolution) |
| 錄影解像度 | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF 16-ch All channels (up to 64 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Smart by NVR | In the Smart Card datasheet |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| by NVR | In the Smart Card datasheet |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total In the Smart Card datasheet 5 millions records for face snapshot, 5 millions records for vehicle snapshot, 2 millions records for SIP Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection I |
| Alert Alarm | Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, |
| GUI Language | Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| SATA | 24 SATA interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |
| 網絡接口 | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| eSATA | 1 |
| miniSAS | 2 |
| Extension Board | 4 |
| 電源輸出 | 12 V |
| 供電 | AC 100 to 240 V |
| Power Switch | Support |
| Redundant Power Supply | Support |
| 工作溫度 | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉) |
| 工作濕度 | ≤ 90% RH (non-condensing) ≤ 70W |
| Weight (without HDD) | ≤ 12.5Kg (27.56lb) |
| 尺寸 | 484.6mm × 533mm × 175.5mm (19.1"×21.0"×6.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| FB-HD04-B-NB | FB-HD07-B-NB DEU1016-B 4-ch HDMI Output Decoding Card 7-ch HDMI Output Decoding Card 16 HDDs 3U Disk Enclosure |
| SL-A | PWR-DC12-550A-IN |
| Slide Rail | 550W Power Accessories Module Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

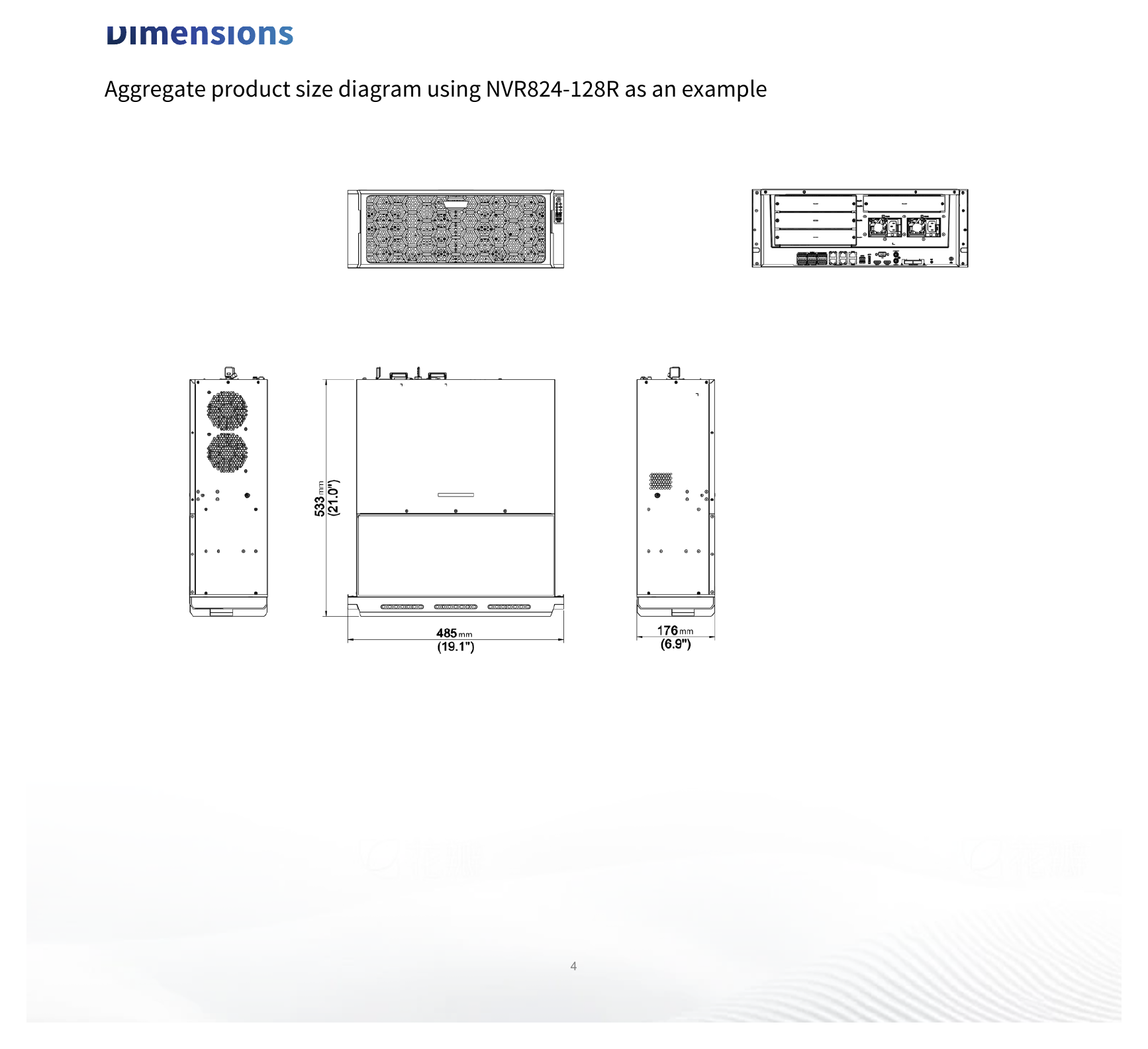

484.6mm × 533mm × 175.5mm (19.1"×21.0"×6.9")｜Unit: mm
NVR824-128R Uniview NVR824-R Series亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，NVR824-128R 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 NVR824-128R 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 NVR824-128R Uniview NVR824-R Series供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 NVR824-128R 香港價格連安裝報價。
