| IP 視頻輸入 | 2-ch(only IP up to 6ch),each channel up to 4K 4-ch(only IP up to 12ch),each channel up to 4K |
|---|
| Support AHD input: | Support AHD input: 8MP@15fps (channel1) 8MP@15fps(channel1-channel2) 5MP@20fps 5MP@20fps 4MP@30fps 4MP@30fps 3MP@30fps (channel1) 3MP@30fps (channel1 –channel2) 1080P@30fps 1080P@30fps 720P@60fps 720P@60fps |
|---|
| Support TVI input: | Support TVI input: 8MP@15fps(channel1) 8MP@15fps(channel1-channel2) 5MP@20fps 5MP@20fps 4MP@30fps 4MP@30fps 3MP@20fps (channel1) 3MP@20fps (channel1 – channel2) 1080P@30fps 1080P@30fps 720P@60fps 720P@60fps |
|---|
| Support CVI input: | Support CVI input: 8MP@15fps(channel1) 8MP@15fps(channel1-channel2) 5MP@20fps 5MP@20fps 4MP@30fps 4MP@30fps 1080P@30fps 1080P@30fps 720P@30fps 720P@30fps |
|---|
| Support CVBS input | Support CVBS input |
|---|
| 音訊輸入 | 1-ch, RCA 1-ch, RCA |
|---|
| 雙向語音 | 1-ch, RCA 1-ch, RCA 1-ch,RCA 1-ch,RCA 40Mbps 40Mbps 60Mbps 64Mbps |
|---|
| Remote Users | 128 |
|---|
| 網絡協議 | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
|---|
| CVBS Output | 1-ch, BNC 1-ch, BNC |
|---|
| VGA 輸出 | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz 1920x1080p/60Hz, 1920x1080p/50Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, |
|---|
| HDMI 輸出 | 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1024x768/60Hz 1280x720/60Hz, 1024x768/60Hz |
|---|
| 音訊輸出 | 1-ch, RCA 4-ch 8-ch |
|---|
| Recording | 8MP Lite/5MP Lite/4MP Lite 8MP Lite/5MP Lite/4MP Lite |
|---|
| 解像度 | /3MP/1080P/960P/720P/960H/4CIF/CIF /3MP/1080P/960P/720P/960H/4CIF/CIF |
|---|
| 主碼流 | Main stream: 8MP Lite@8fps(channel1） 8MP Lite@8fps（channel1-channel2） 5MPLite@12fps 5MP Lite@12fps 4MP Lite@15fps 4MP Lite@15fps 3MP@15fps(channel1) 3MP@15fps(channel1 – channel2) 2MP@15fps 2MP@15fps 720P@30fps 720P@30fps |
|---|
| 子碼流 | Sub stream: D1@30fps(Max) D1@30fps(Max) |
|---|
| SATA | 1 SATA interfaces |
|---|
| 容量 | Up to 10TB for each HDD |
|---|
| 網絡接口 | 1RJ45 10M/100M self-adaptive Ethernet Interface |
|---|
| USB 接口 | Rear panel：2 x USB2.0 |
|---|

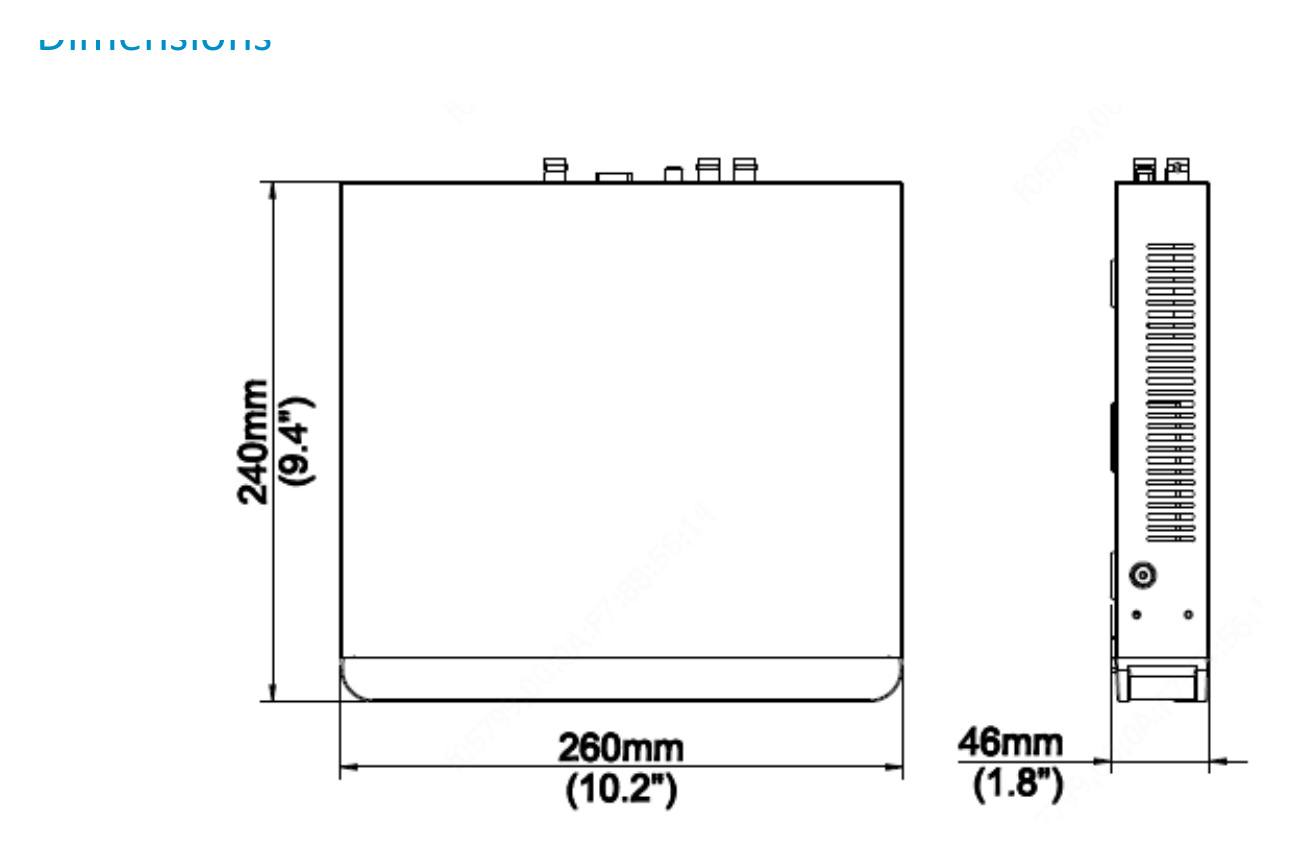

| Serial Interface | 1 x RS485 12V DC Power Consumption: ≤ 8 W( without HDD ) -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) 260mm ×240mm× 46mm (10.2" × 9.4"×1.8") ≤1.1 Kg ( 4.19lb ) |
|---|
| Video Inupt | Power Supply |
|---|
