Uniview KIT-XVR301-08Q3-8-UAC-B115-F28 為KIT/XVR301-08Q3/8*UAC-B115-F28，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 KIT-XVR301-08Q3-8-UAC-B115-F28 香港價格連安裝報價。
| | UAC-B115-F28 |
|---|---|
| Max Resolution | 5 MP |
| Sensor Size | 1/2.7" CMOS 0.02 lux (F2.0, AGC ON) 0 lux (IR on) |
| 對焦 | 2.8 mm 4.0 mm |
| 鏡頭接口 | M12 |
| Angle of View (H) | 102.2° 82.9° |
| Angle of View (V) | 53.9° 46.1° |
| Angle of View (D) | 124.8° 100.0° |
| Illuminator Number | One IR illuminator |
| Illumination Distance | 20m |
| Lifetime | ≥ 60000 hours 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) |
| 解像度 | 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D 2D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180°horizontal flip, 180°vertical flip |
| 電源接口 | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV for power, 4 KV for video output interfaces |
| 供電 | DC 12 V ± 25% |
| 功耗 | MAX 3.6W |
| Mount | Corner Mount, Pole Mount |
| 尺寸 | 142mm*63mm*65mm (L*W*H) |
| 材質 | Plastic |
| 重量 | 135g(0.30lb) |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| 防護等級 | IP67 (IEC 60529) |
| IP 視頻輸入 | 4-ch |
| Analog Video Input | 8-ch, BNC |
| Max IP Video Input | 12-ch Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 3K@20fps |
| Supported Analog Camera | 5MP@20fps |
| Types | 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| BNC Audio Input | 8-ch, channel audio |
| RCA Audio Input | 1-ch HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| BNC Video Output | 1-ch |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 |
| 錄影解像度 | 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1 |
| Main stream: 8MP Lite@8fps | Sub stream: D1@8fps Main stream: 3K Lite@12fps Sub stream: D1@12fps |
| Main stream: 5MP Lite@12fps | Sub stream: D1@12fps |
| Main stream: 4MP Lite@15fps | Sub stream: D1@15fps |
| Main stream: 1080P@15fps | Sub stream: D1@15fps Main stream: 720P@30fps Sub stream: D1@30fps |
| Audio Sample Rate | 8 kHz, 16 bit per channel |
| 音訊碼率 | 64 Kbps per channel Analog: 8 x 8MP Lite@8, 8 x 3K Lite@12, 8 x 5MP Lite@12, 8 x 4MP Lite@15, 8 x 1080P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
| 雙向語音 | 1-ch (with IP Camera) Schedule/FTP/Event snapshot:8-ch snapshot, up to 3840*2160 resolution |
| 入口頻寬 | 40Mbps (Up to 56Mbps after all analog channel conversion) |
| 出口頻寬 | 64Mbps |
| Remote Users | 128 |
| 網絡協議 | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Ultra Motion Detection (UMD) , SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking |
| VCA Search | Face Search, Behavior Search, People Counting Report |
| Smart Functions by XVR | 8-ch (UMD), 2-ch (SIP), 1-ch (Face Detection) |
| Smart Functions by IP Camera | 2-ch (SIP), All channels (up to 4 images/s in total) Face Detection |
| General Alarm | Motion IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, |
| SATA | 1 SATA interface |
| 容量 | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 × USB2.0 |
| RS485 | 1 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| 工作溫度 | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ ) |
| 工作濕度 | ≤ 90% RH (non-condensing) ≤ 10W |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

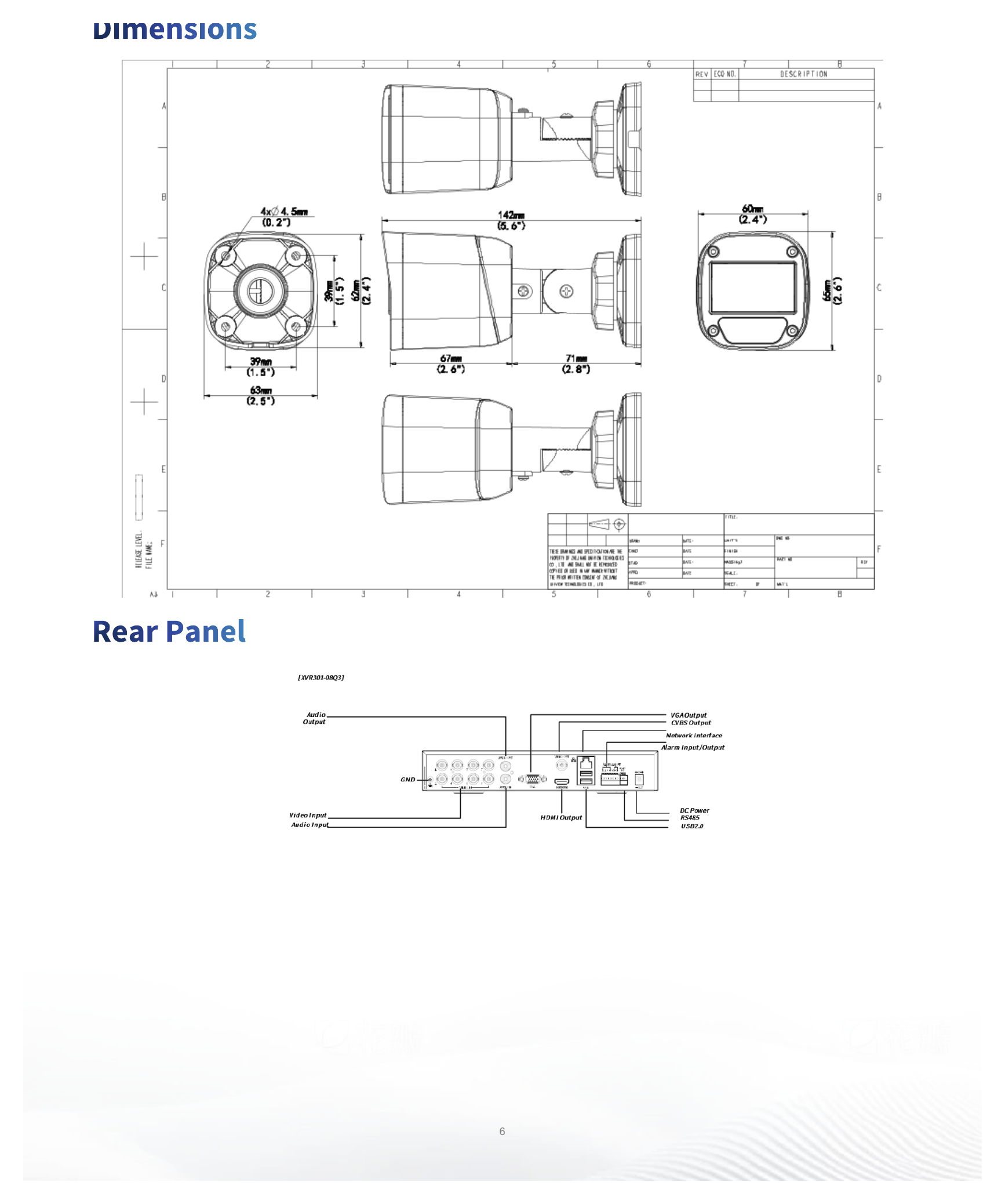

142mm*63mm*65mm (L*W*H)｜重量 135g(0.30lb)｜Unit: mm
KIT-XVR301-08Q3-8-UAC-B115-F28 Uniview KIT/XVR301-08Q3/8*UAC-B115-F28亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，KIT-XVR301-08Q3-8-UAC-B115-F28 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，KIT-XVR301-08Q3-8-UAC-B115-F28 係 135g(0.30lb)，PKC1150-4-Z28-C-P 係 0.9kg；防護等級方面，KIT-XVR301-08Q3-8-UAC-B115-F28 係 IP67 (IEC 60529)，PKC1150-4-Z28-C-P 係 IP66。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 KIT-XVR301-08Q3-8-UAC-B115-F28 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 KIT-XVR301-08Q3-8-UAC-B115-F28 Uniview KIT/XVR301-08Q3/8*UAC-B115-F28供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 KIT-XVR301-08Q3-8-UAC-B115-F28 香港價格連安裝報價。
