| IPC2124LB-ADF28KM-H | IPC2124LB-ADF40KM-H |
|---|
| Sensor | 1/2.9", 4.0 megapixel, progressive scan, CMOS Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR on |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|---|
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
|---|
| S/N | >52dB |
|---|
| WDR | 120dB |
|---|
| 鏡頭類型 | 2.8mm @F2.0 4.0mm @F2.0 |
|---|
| Iris | Fixed |
|---|
| Angle of View (H) | 101.5° 84.1° |
|---|
| Angle of View (V) | 55.6° 45.1° |
|---|
| Angle of View (D) | 111.6° 89.5° |
|---|
| Lens (mm) | Detect (m) Observe (m) Recognize (m) Identify (m) |
|---|
| DORI Distance | 2.8 63.0 25.2 12.6 6.3 4.0 90.0 36.0 18.0 9.0 |
|---|
| IR Range | Up to 30m (98ft) |
|---|
| Wavelength | 850nm |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main profile, High profile Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P |
|---|
| Frame Rate | (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|---|
| 視頻碼率 | 128 Kbps~6144 kbps |
|---|
| U-code | Support |
|---|
| OSD | Up to 4 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Video stream | Dual streams |
|---|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|---|
| Digital noise reduction | 2D/3D DNR |
|---|
| Smart IR | Support |
|---|
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|---|
| Dewarping | NA |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| 除霧 | Digital Defog |
|---|
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP |
|---|
| Edge Storage | Micro SD, up to 128GB |
|---|
| 網絡儲存 | ANR, NAS(NFS) IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
|---|
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user |
|---|
| 安全 | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF EZStation |
|---|
| 客戶端 | EZView EZLive Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| Serial Port | N/A |
|---|
| Built-in Mic | Support |
|---|
| Built-in Speaker | N/A |
|---|
| WIFI | N/A |
|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
|---|
| Video Output | N/A CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) CE LVD (EN 62368-1) |
|---|
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|---|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|---|
| 防護等級 | IP67 (IEC 60529) DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.5W |
|---|
| 電源接口 | Ø 5.5mm coaxial power plug |
|---|

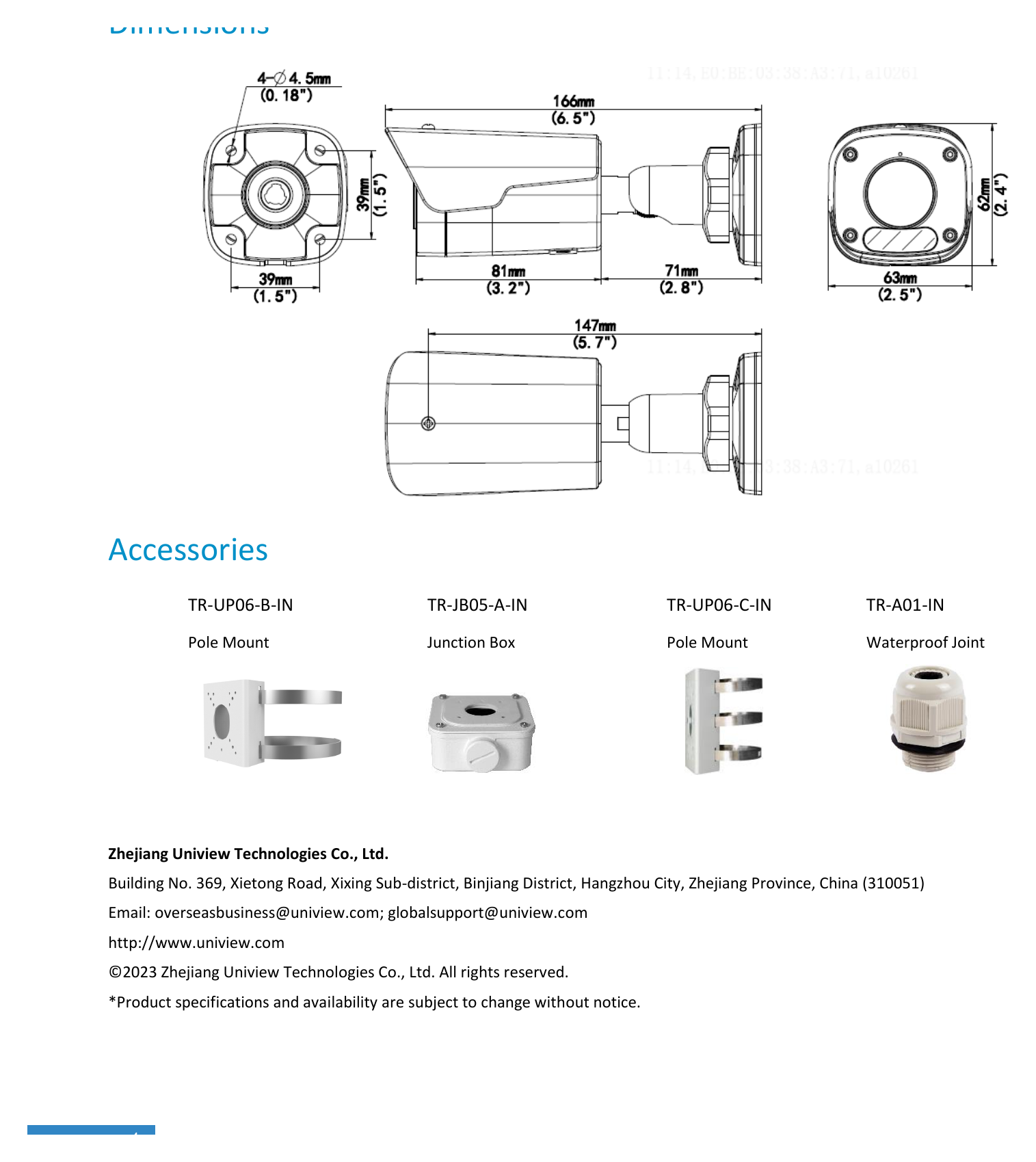

| Dimensions (L × W × H) | 166 × 63 × 62mm (6.5” × 2.5” × 2.5”) |
|---|
| 重量 | 0.39kg (0.86lb) |
|---|
| 材質 | Graphene + Metal |
|---|
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|---|
| 防雷 | 4KV |
|---|
| Reset Button | N/A |
|---|
| TR-UP06-B-IN | TR-JB05-A-IN TR-UP06-C-IN TR-A01-IN |
|---|
| Pole Mount | Junction Box Pole Mount Waterproof Joint |
|---|
