| Sensor | 1/1.8" CMOS Colour:0.0005 lux (F1.2, AGC ON) 0 lux with IR |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Shutter | Auto/Manual, 1 to 1/100000 s |
|---|
| WDR | 120 dB |
|---|
| Adjustment Angle | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|---|
| S/N | >56 dB |
|---|
| 焦距 | 2.8 to 12 mm |
|---|
| Digital Zoom | 16X |
|---|
| Optical Zoom | 5X |
|---|
| Iris | F1.2 |
|---|
| Field of View (H) | 113.7°~42.6° |
|---|
| Field of View (V) | 59.0°~24.1° |
|---|
| Field of View (D) | 139.9°~52.4° |
|---|
| 光圈類型 | Fixed |
|---|
| DORI Distance (Lens) | 2.8~12(mm) |
|---|
| DORI Distance (Detect) | 68.0m(223.0ft)~166.2m(545.2ft) |
|---|
| DORI Distance (Observe) | 27.2m(89.2ft)~66.5m(218.1ft) |
|---|
| DORI Distance (Recognize) | 13.6m(44.6ft)~33.2m(109.0ft) |
|---|
| DORI Distance (Identify) | 6.8m(22.3ft)~16.6m(54.5ft) |
|---|
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
|---|
| Frame Rate-Main Stream | 4MP (2688*1520), Max 30fps; |
|---|
| Frame Rate-Sub Stream | 1080P (1920*1080), Max 30fps; |
|---|
| 視頻碼率 | 128 Kbps to 16 Mbps |
|---|
| U-code | Support |
|---|
| ROI | Support |
|---|
| Video Stream | Triple Streams |
|---|
| OSD | Up to 10 OSDs |
|---|
| 隱私遮蔽 | Up to 4 areas |
|---|
| Frame Rate-Third Stream | D1 (720*576), Max 30fps; Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
|---|
| Exception Detection | Object Removed, Object Left Behind, Scene Change, Defocus Detection Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|---|
| People Counting | Support People Flow Counting and Crowd Density Monitoring Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole |
|---|
| 音訊壓縮 | G.711U, G.711A |
|---|
| Audio Bitrate | 128 Kbps |
|---|
| 雙向語音 | Support |
|---|
| Suppression | Support |
|---|
| 取樣率 | 16KHZ |
|---|
| Edge Storage | Micro SD, up to 512 GB |
|---|
| 網絡儲存 | ANR, NAS (NFS) |
|---|
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
|---|
| Digital Noise Reduction | 2D/3D DNR |
|---|
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| Smart IR | Support |
|---|
| 除霧 | Digital Defog |
|---|
| Heatwave Reduction | N/A SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
|---|
| Alarm I/O | 2/1 |
|---|
| Built-in Mic | Support |
|---|
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
|---|
| Video Output | 1 BNC (For debugging) |
|---|
| Illumination Distance (IR) | 80 m (262 ft) |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Wavelength | 850 nm CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: |
|---|
| EMC | 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|---|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|---|
| 供電 | DC12V(±25%), PoE(IEEE 802.3af) |
|---|
| 功耗 | Max 10W |
|---|
| 電源接口 | Ø5.5 mm coaxial power plug |
|---|

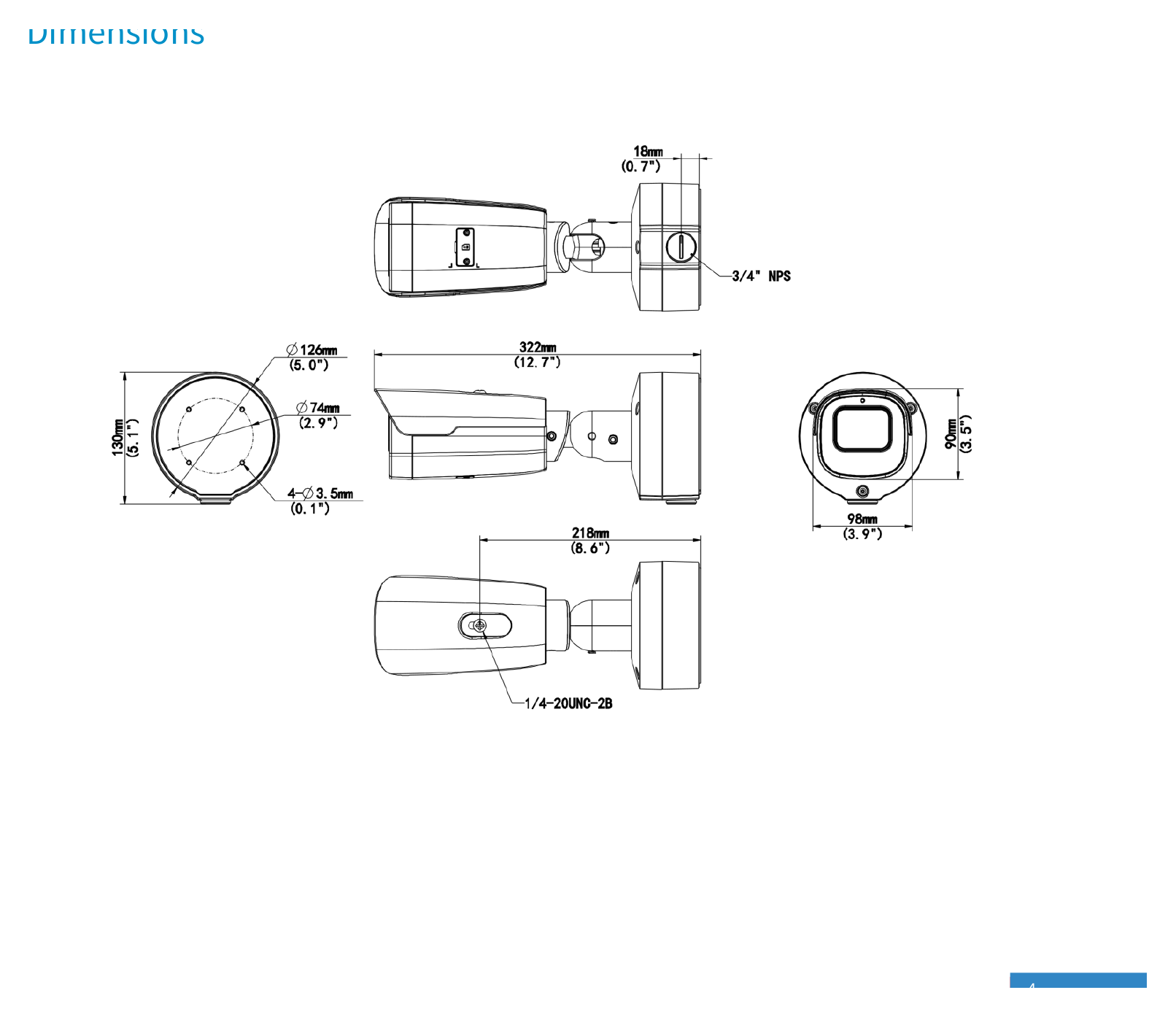

| 尺寸 | Ø 130 x 322 mm (Ø 5.1” x 12.7”) (Ø x H) |
|---|
| 重量 | 1.3Kg(2.87lb) |
|---|
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| 防雷 | 6 KV 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
|---|
| Heater | Support TR-UP06-C-IN Box Only |
|---|
