HANWHA SNB-7002-ENG-1P CCTV攝影機安裝・保養

Name: HANWHA SNB-7002-ENG-1P 3Megapixel Network Camera SNB-7002N/P
Brand: hanwha
SKU: SNB-7002-ENG-1P

產品簡介

hanwha SNB-7002-ENG-1P 為3Megapixel Network Camera SNB-7002N/P，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SNB-7002-ENG-1P 香港價格連安裝報價。

Imaging Device：1/3" 3.1M PS CMOS
Total Pixels：2,064(H) x 1,578(V)
Effective Pixels：2,052(H) x 1,536(V)
Scanning System：Progressive
最低照度：Color : 0.7Lux (F1.2, 50IRE), 0.011Lux (Sens-up 60x) B/W : 0

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

SNB-7002-ENG-1P hanwha 3Megapixel Network Camera SNB-7002N/P 產品圖片

詳細規格

Imaging Device	1/3" 3.1M PS CMOS
Total Pixels	2,064(H) x 1,578(V)
Effective Pixels	2,052(H) x 1,536(V)
Scanning System	Progressive
最低照度	Color : 0.7Lux (F1.2, 50IRE), 0.011Lux (Sens-up 60x) B/W : 0.07Lux (F1.2, 50IRE), 0.001Lux (Sens-up 60x)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vp-p / 75Ω composite (DIP connector type), 704 x 480(N), 704 x 576(P), for installation
Focus Cotrol	Manual / Simple focus / Day & Night
鏡頭類型	Manual / DC auto iris
Mount Type	C / CS Operational
Camera Title	Off / On (Displayed up to 15 characters)
日夜切換	Auto (ICR) / Color / B/W / External
Backlight Compensation	Off / BLC / HLC / WDR
寬動態 WDR	Off / On (96dB) 3M mode : 20fps, 2M mode : 30fps
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
* Lens not included	Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Motion Detection	Off / On (4 rectangular zones)
Privacy Masking	Off / On (1ea 4 point polygonal + 16ea rectangular zones)
Sens-up (Frame Integration)	Off / Auto (2x ~ 60x)
Gain Control	Off / Low / Medium / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Flip / Mirror	Off / On
Key Features	Intelligent Video Analytics Audio detection, Face detection, Tampering, Virtual line, Enter / Exit, Appear / Disappear
Alarm I/O	Digital 1/1
• Max. 3M (2048 x 1536) resolution	Remote Control Interface RS-485
RS-485 Protocol	Samsung-T/E, Pelco-P/D, Sungjin
• H.264, MJPEG dual codec	Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP, Local storage (SD/SDHC) recording at network disconnected
• Multiple streaming	Network
Ethernet	RJ-45 (10/100BASE-T)
• Smart compression (ROI encoding)	Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
• Audio / Face / Motion detection	3M mode - 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 2M mode - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 3M mode - H.264 : Max. 20fps at all resolutions
尺寸	Unit : mm (inch) MJPEG : 800 x 600 ~ 320 x 180 - 20fps, 1024 x 768 ~1920 x 1080 - 15fps
Max. Framerate	2048 x 1536 - 10fps 2M mode - H.264 : Max. 30fps at all resolutions MJPEG : 800 x 600 ~ 320 x 180 - 30fps, 1024 x 768 ~ 1920 x 1080 - 15fps
Smart Codec	Yes (Area based method)
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 6 profiles)
Audio I/O	Mic / Line in, Line out, Built-in mic.
Audio Compression Format	G.711 u-law, G.726 (16Kbps, 24Kbps, 32Kbps, 40Kbps)
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP (2.36") 60.0 (2.36")
安全	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast 60.0
Max. User Access	10 users at unicast mode
Memory Slot	SD/SDHC memory slot
ONVIF Conformance	Yes (Profile S) 72.0 (2.83") 72.0 (2.83") 150.5 150.6 (5.93") (5.93") English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language	Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher
Web Viewer	Supported Browser : Internet explorer 7.0 or higher, Firefox 9.0 or higher, Chrome 15.0 or higher, Safari 5.1 or higher
Central Management Software	SmartViewer, SSM (Samsung Security Manager) Environmental
Available Lenses / Accessories (Optional)	Operating Temperature / Humidity Storage Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Electrical
Input Voltage / Current	24V AC, 12V DC, PoE (IEEE802.3af)
功耗	Max. 9W (24V AC, 12V DC, PoE (Class3))

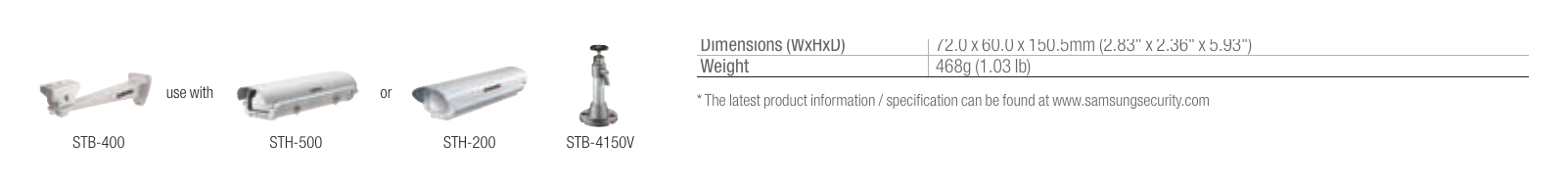

SLA-M3180DN	SHB-4300H1/4300H2/4300H3 SHB-4200/4200H Color / Material Dark gray / Aluminum
Dimensions (WxHxD)	72.0 x 60.0 x 150.5mm (2.83" x 2.36" x 5.93")
重量	468g (1.03 Ib)
use with	or * The latest product information / specification can be found at www.samsungsecurity.com
STB-400	STH-500 STH-200 STB-4150V REVISED 03-2014
