HANWHA SNB-6010 CCTV攝影機安裝・保養

Name: HANWHA SNB-6010 2Megapixel Full HD Network Remote Head Camera
Brand: hanwha
SKU: SNB-6010

產品簡介

hanwha SNB-6010 為2Megapixel Full HD Network Remote Head Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SNB-6010 香港價格連安裝報價。

Imaging Device：1/2.8" 2.38M CMOS
Total Pixels：1,952(H) x 1,116(V)
Effective Pixels：1,944(H) x 1,104(V)
Scanning System：Progressive
最低照度：Color : 0.5Lux (1/30sec, F2.5, 50IRE)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

SNB-6010 hanwha 2Megapixel Full HD Network Remote Head Camera 產品圖片

詳細規格

Imaging Device	1/2.8" 2.38M CMOS
Total Pixels	1,952(H) x 1,116(V)
Effective Pixels	1,944(H) x 1,104(V)
Scanning System	Progressive
最低照度	Color : 0.5Lux (1/30sec, F2.5, 50IRE)
焦距	4.6mm pinhole
Max. Aperture ratio	F2.5
Angular Field of View	H : 71° / V : 38°
Min. Object Distance	0.3m
Mount Type	RJ-12 connected with main unit Operational
Camera Title	Off / On (Displayed up to 45 characters)
日夜切換	Auto (Electrical) / Color / B/W / Schedule
Backlight Compensation	Off / BLC / WDR
寬動態 WDR	120dB
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
除霧	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zone)
Privacy Masking	Off / On (32 zones with 4 points of polygonal)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1.2 ~ 1/10,000sec)
Key Features	Flip / Mirror Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear
• Max. 2M (1920 x 1080) resolution	Alarm I/O Input 1ea / Output 1ea
Alarm Triggers	Motion detection, Alarm input, Video anaytics, Network disconnection Alarm Events
• WDR (120dB), Defog	Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
• Advanced motion detection, VA	Ethernet RJ-45 (10/100BASE-T)
• micro SD/SDHC/SDXC memory slot	Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• Multi-crop streaming	Resolution 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• Extremely discreet design	H.264 : Max. 30fps at all resolutions
Max. Framerate	MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control

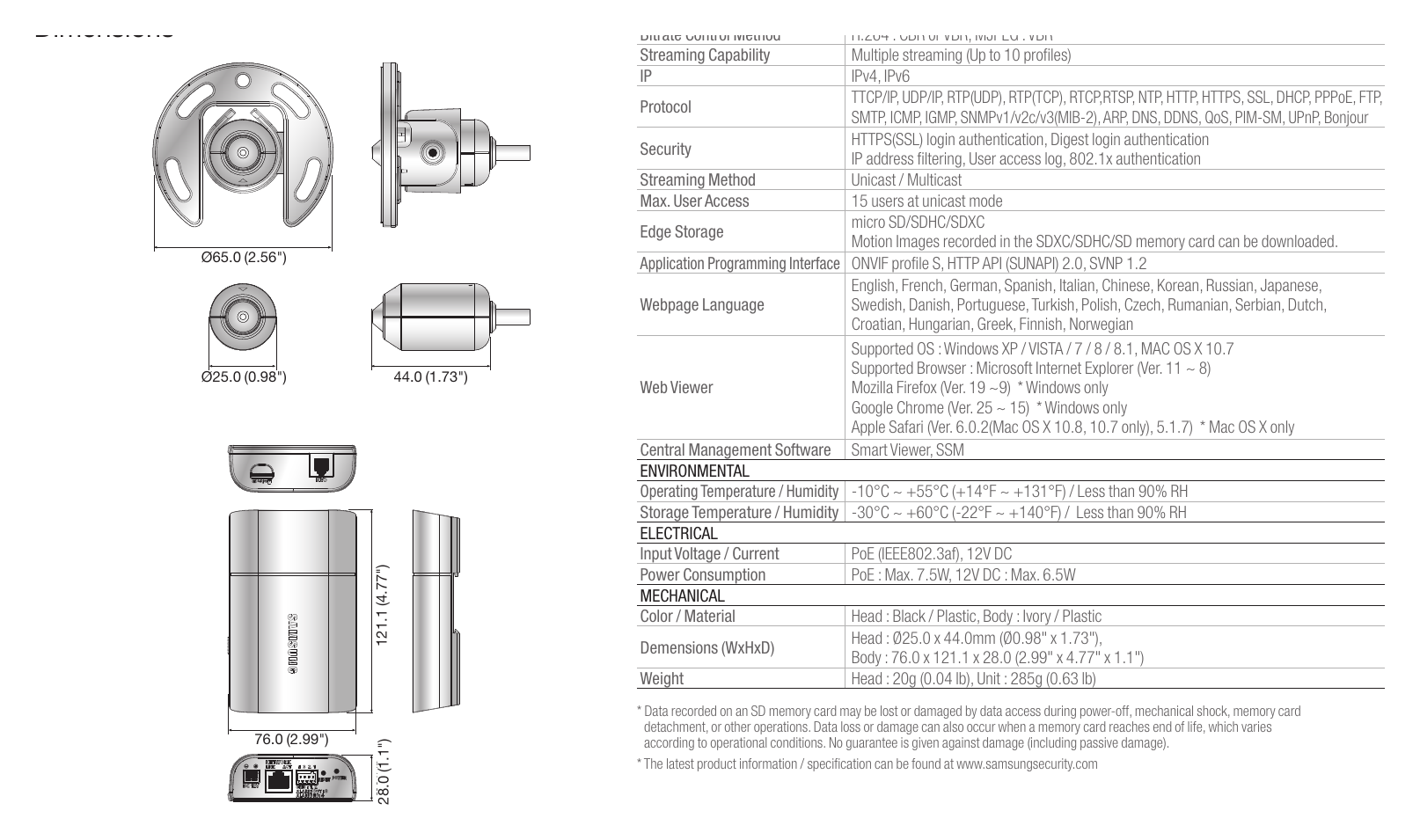

尺寸	Unit : mm (inch)
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
IP	IPv4, IPv6 TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour HTTPS(SSL) login authentication, Digest login authentication Security IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode micro SD/SDHC/SDXC Edge Storage Motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
Ø65.0	(2.56") Ø65.0 (2.56") Application Programming Interface ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language	Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7
Ø25.0	(0.98")
Ø24.0 (0.94")	44.042.4(1.73") (1.67") Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8)
Web Viewer	Mozilla Firefox (Ver. 19 ~9) * Windows only Google Chrome (Ver. 25 ~ 15) * Windows only Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only Central Management Software Smart Viewer, SSM Environmental Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Electrical
Input Voltage / Current	PoE (IEEE802.3af), 12V DC (4.77")
功耗	PoE : Max. 7.5W, 12V DC : Max. 6.5W 121.1 (4.77")
Color / Material	Head : Black / Plastic, Body : Ivory / Plastic 121.1 Head : Ø25.0 x 44.0mm (Ø0.98" x 1.73"), Demensions (WxHxD) Body : 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1")
重量	Head : 20g (0.04 lb), Unit : 285g (0.63 lb) * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies 76.0 (2.99") 76.0 (2.99") according to operational conditions. No guarantee is given against damage (including p
