HANWHA SNB-6011B CCTV攝影機安裝・保養

Name: HANWHA SNB-6011B 2Megapixel 2.4mm Network Remote Head Camera
Brand: Hanwha
SKU: SNB-6011B

產品簡介

Hanwha SNB-6011B 為2Megapixel 2.4mm Network Remote Head Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SNB-6011B 香港價格連安裝報價。

Imaging Device：1/2.8" 2.38M CMOS
Total Pixels：1,952(H) x 1,116(V)
Effective Pixels：1,944(H) x 1,104(V)
Scanning System：Progressive
最低照度：Color : 0.3Lux (1/30sec, F2.5, 50IRE)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

SNB-6011B Hanwha 2Megapixel 2.4mm Network Remote Head Camera 產品圖片

詳細規格

Imaging Device	1/2.8" 2.38M CMOS
Total Pixels	1,952(H) x 1,116(V)
Effective Pixels	1,944(H) x 1,104(V)
Scanning System	Progressive
最低照度	Color : 0.3Lux (1/30sec, F2.5, 50IRE)
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type
焦距	2.4mm pinhole
Max. Aperture ratio	F2.0
Angular Field of View	H : 134.3° / V : 70.9°
Min. Object Distance	0.3m (0.98ft)
Mount Type	RJ-12 connected with main unit Operational
Camera Title	Off / On (Displayed up to 45 characters)
日夜切換	Auto (Electrical) / Color / B/W / Schedule
Backlight Compensation	Off / BLC / WDR
寬動態 WDR	120dB
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
除霧	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zone)
Privacy Masking	Off / On (32 zones with 4 points of polygonal)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Key Features	Flip / Mirror Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection with metadata
• Max. 2M (1920 x 1080) resolution	Alarm I/O Input 1ea / Output 1ea
Alarm Triggers	Motion detection, Alarm input, Video anaytics, Network disconnection, Audio detection Alarm Events Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
• WDR (120dB), Defog	Network
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG Metadata, Tampering, Virtual line, Enter/Exit, (Dis)Appear 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, Resolution H.264 : Max. 30fps at all resolutions
• Extremely discreet design	Max. Framerate MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR

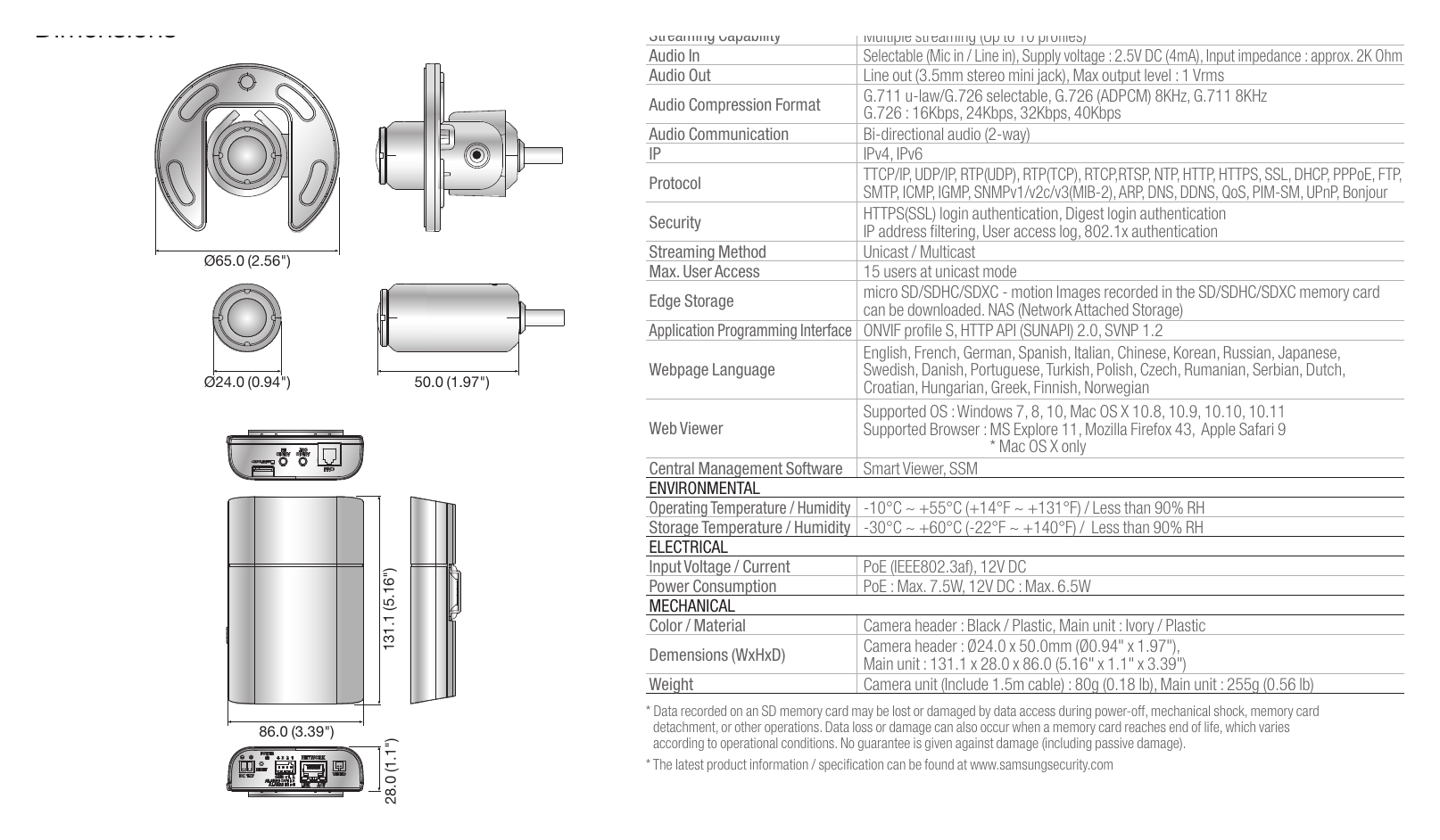

尺寸	Unit : mm (inch)
Streaming Capability	Multiple streaming (Up to 10 profiles)
音訊輸入	Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack), Max output level : 1 Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
安全	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication Ø65.0 Ø65.0(2.56") (2.56")
Ø65.0 (2.56")	Streaming Method Unicast / Multicast
Max. User Access	15 users at unicast mode
Edge Storage	micro SD/SDHC/SDXC - motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) Application Programming Interface ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Ø24.0 (0.94")	42.4 (1.67") Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Ø24.0 Ø24.0 (0.94") (0.94") 50.0 (1.97") 50.0 (1.97") Croatian, Hungarian, Greek, Finnish, Norwegian Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Web Viewer	Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only Central Management Software Smart Viewer, SSM Environmental Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Electrical
Input Voltage / Current	PoE (IEEE802.3af), 12V DC (5.16")
功耗	PoE : Max. 7.5W, 12V DC : Max. 6.5W 131.1 (5.16") 121.1 (4.77") 131.1
Color / Material	Camera header : Black / Plastic, Main unit : Ivory / Plastic
Demensions (WxHxD)	Camera header : Ø24.0 x 50.0mm (Ø0.94" x 1.97"), Main unit : 131.1 x 28.0 x 86.0 (5.16" x 1.1" x 3.39")
重量	Camera unit (Include 1.5m cable) : 80g (0.18 lb), Main unit : 255g (0.56 lb) * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card 86.0 86.0 (3.39") (3.39") detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies according to operational conditions. No guarantee is
