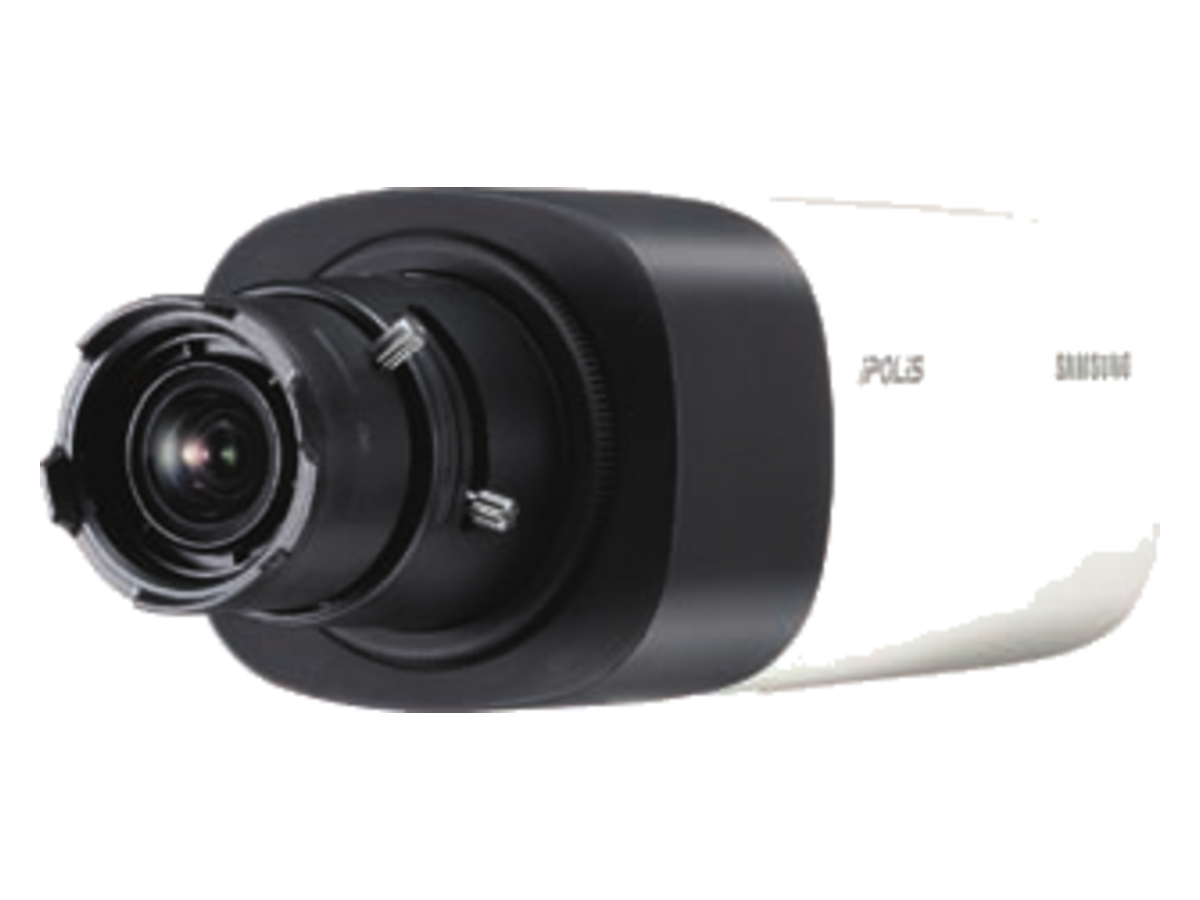

HANWHA SNB-6005 CCTV攝影機安裝・保養

Name: HANWHA SNB-6005 SNB-6005
Brand: Hanwha
SKU: SNB-6005

產品簡介

Hanwha SNB-6005 為2Megapixel Full HD Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SNB-6005 香港價格連安裝報價。

Imaging Device：1/1.9" 2.42M CMOS
Total Pixels：1,952(H) x 1,241(V) approx 2.42M pixels
Effective Pixels：1,937(H) x 1,097(V) approx 2.12M pixels
Scanning System：Progressive
最低照度：Color : 0.03Lux (1/30sec, F1.2, 50IRE), 0.015Lux (1/30sec, F

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Imaging Device	1/1.9" 2.42M CMOS
Total Pixels	1,952(H) x 1,241(V) approx 2.42M pixels
Effective Pixels	1,937(H) x 1,097(V) approx 2.12M pixels
Scanning System	Progressive
最低照度	Color : 0.03Lux (1/30sec, F1.2, 50IRE), 0.015Lux (1/30sec, F1.2, 30IRE) B/W : 0.003Lux (1/30sec, F1.2, 50IRE), 0.0015Lux (1/30sec, F1.2, 30IRE)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network, Button control (Manual, Simple focus)
鏡頭類型	Manual / DC auto iris, P-Iris
Mount Type	C / CS Operational
Camera Title	Off / On (Displayed up to 45 characters)
日夜切換	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / WDR
寬動態 WDR	120dB
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
* Lens not included	Defog Off / Auto / Manual
Motion Detection	Off / On (4 zones with 4 points polygonal)
Privacy Masking	Off / On (32 zones with 4 points of polygonal)
Gain Control	Off / Low / Medium / High / Manual
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection,
Key Features	Face detection - Support Metadata
Alarm I/O	Input 1ea / Output 1ea
Remote Control Interface	RS-485
• Max. 2M (1920 x 1080) resolution	RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch Motion detection, Tampering detection, Audio detection, Face detecton, Network disconnection, Video analytics, Alarm input
• 1/1.9" 2.42M CMOS	Alarm Events File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output
Ethernet	RJ-45 (10/100BASE-T)
• Audio / Face / Motion detection	Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate	MJPEG : Max. 15fps@1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
• PoE, UPnP, Bi-directional audio support	Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Smart Codec	Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
尺寸	Unit : mm (inch) Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
音訊輸入	Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack), Max output level : 1 Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
安全	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Edge Storage	SD/SDHC/SDXC - Motion Images recorded in the SD/SDHC/SDXC memory card can be 66.6 (2.62") downloaded. NAS (Network Attached Storage) (2.62") Application Programming Interface ONVIF profile S, SUNAPI (HTTP API), SVNP, Samsung camera application platform English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, 66.6
Webpage Language	Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek Supported OS : Windows XP / VISTA / 7 / 8 / 8.1 or higher, MAC OS X 10.7
Web Viewer	Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11) 73.1 (2.88") 73.1 (2.88") 147.8(5.82") 147.8 (5.82") Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25) Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only Central Management Software SmartViewer, SSM Environmental Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start
Input Voltage / Current	24V AC, 12V DC, PoE (IEEE802.3af, Class3)
Available Lenses / Accessories (Optional)	Power Consumption Max. 11.44W (24V AC, 50/60Hz), Max. 10.1W (12V DC), Max. 11.1W (PoE, Class3)
Color / Material	Black, Ivory / Aluminium, Plastic
Dimensions (WxHxD)	73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
重量	430g (0.95 lb) * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card

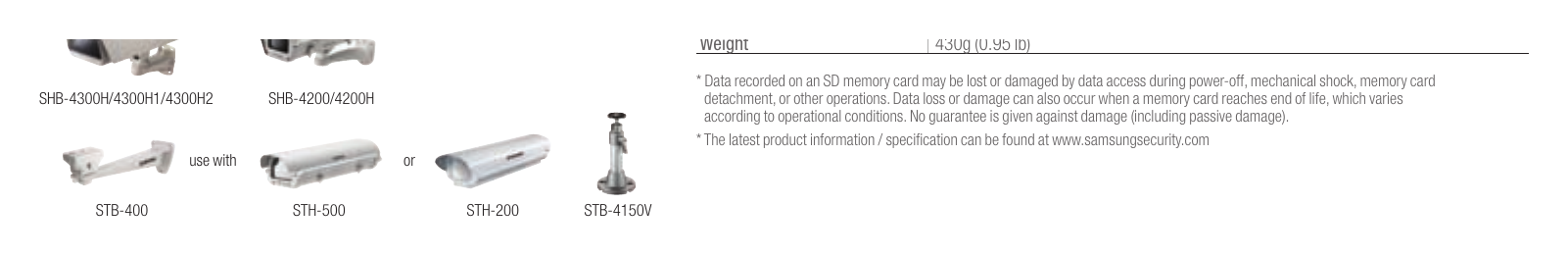

SHB-4300H/4300H1/4300H2	SHB-4200/4200H detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies according to operational conditions. No guarantee is given against damage (including passive damage). * The latest product information / specification can be found at www.samsungsecurity.com
use with	or
STB-400	STH-500 STH-200 STB-4150V 10-08-2015 ⓒ 2015 Hanwha TECHWIN CO., LTD. ALL RIGHTS RESERVED.
