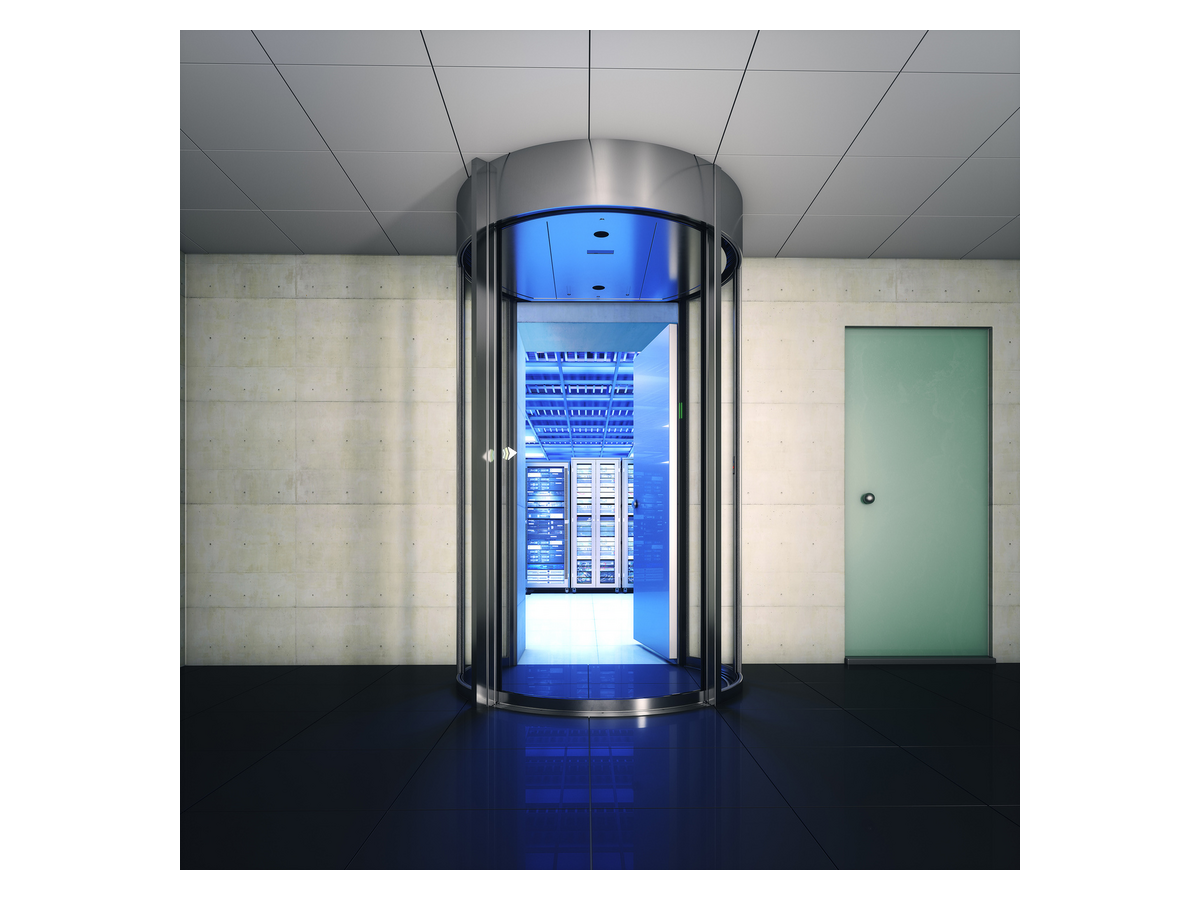

Boon Edam CIRCLELOCKCOMBI 為CIRCLELOCK COMBI.，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 CIRCLELOCKCOMBI 香港價格連安裝報價。
| TECHNICAL SPECIFICATIONS | 5 YOUR ENTRY EXPERTS | BOON EDAM |
|---|---|
| THROUGHPUT | STANDARD LEVEL UP OPTIONS |
| Throughput | 5 - 6 people per minute |
| Diameter | 5' 0" / 1500 mm |
| Height | 8' 6-3/8" / 2600 mm |
| Canopy Height | 11-13/16" / 300 mm |
| Throat Opening | 3' 4-5/8" / 1030 mm |
| Number of Doors / Wings | 1 |
| Flow | Bi-directional, one direction at a time |
| 安全 | STANDARD LEVEL UP OPTIONS |
| Tailgating Prevention | Unauthorized user can't enter the compartment after an authorized user completes entry/exit |
| Piggybacking Prevention | One-way piggybacking prevention from Two-way piggybacking prevention non-secure to secure side only. Internal biometric post for two- or multi- |
| Biometric Authentication | - factor authentication |
| SAFETY | STANDARD LEVEL UP OPTIONS |
| Emergency Egress | N/A - subject to local regulations |
| Operation in Case of | Non-secure side door opens, secure side swing Fail-safe or fail-secure |
| Power Failure | door operation dependent on lock hardware Field configurable to client's specifications Executes actions described in "Operation in Case of Power Failure" above |
| AESTHETICS | STANDARD LEVEL UP OPTIONS Powder coated aluminum, stainless steel, |
| 材質 | Anodized aluminum additional finishes available on request |
| Sliding Glass Panel | Laminated or tempered safety glass |
| Wrapping / Branding | - Glass decals, tinted or frosted barriers |
| TECHNOLOGY | STANDARD LEVEL UP OPTIONS |
| 供電 | 110 - 240 V, 50 / 60 Hz TOUCHLESS INTEGRATIONS: BoonTouch external control panel 65W - Operating |
| Operating Power | Mobile / Bluetooth readers 45W - Stationary Facial, iris recognition, other biometric |
| 工作溫度 | -4°F to +122°F devices for touchless entry Free-out push button activation |
| 重量 | 1500 lbs / 680 kg |
| Access Control | Dry contacts for virtually any access control |
| COMFORT | STANDARD LEVEL UP OPTIONS |
| Disabled Access | - Adjacent swing door required by code |
| Lighting and Sound | LED ceiling lights and voice module TECHNICAL DIMENSIONS YOUR ENTRY EXPERTS | BOON EDAM |
| SERVICE AND MAINTENANCE | COMPLIANCE |
| correspond to those conditions perfectly. | products are compliant and certified. More information can be found on our website under ‘About Us’. The Circlelock Combi complies with the following North American standards: UL 325 & 2593 CSA 22.2#247 IS GLOBAL. We have been in business for 150 years manufacturing premium aesthetic and security entrance solutions in the Netherlands, United States of America and China. We can confidently say that |
* 規格以原廠最新 Datasheet 為準。
CIRCLELOCKCOMBI Boon Edam CIRCLELOCK COMBI.亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，CIRCLELOCKCOMBI 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。

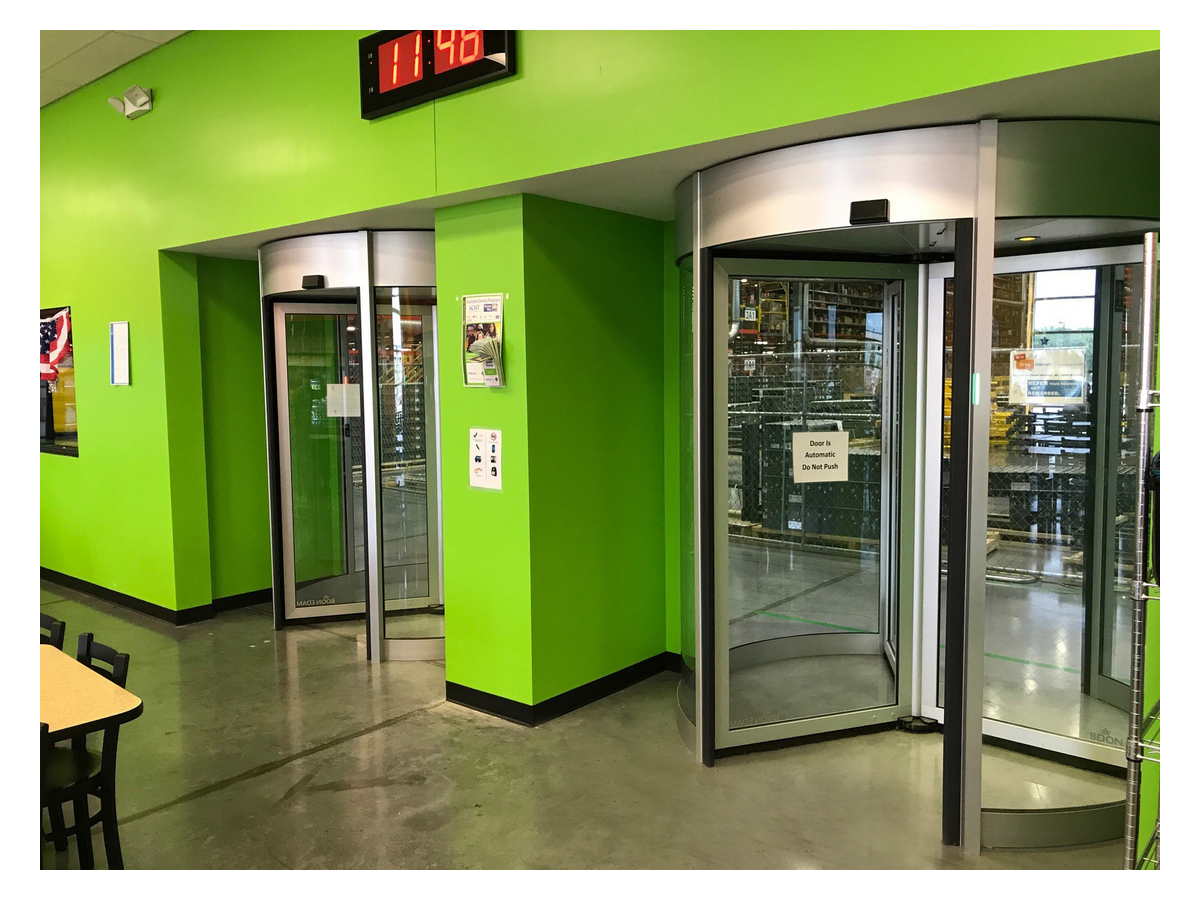

兩者主要規格分別：Throughput方面，CIRCLELOCKCOMBI 係 5 - 6 people per minute，TOURLOCK120A 係 15-20 People / minute in one direction；Diameter方面，CIRCLELOCKCOMBI 係 5' 0" / 1500 mm，TOURLOCK120A 係 5' 6" / 1675 mm 7' 0" / 2135 mm；Height方面，CIRCLELOCKCOMBI 係 8' 6-3/8" / 2600 mm，TOURLOCK120A 係 7' 11-7/8" / 2435 mm。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 TOURLOCK120A 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 CIRCLELOCKCOMBI 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
