| Input/Output | Tamper Alarm Controller tamper; housing tamper |
|---|
| 警報輸入 | 16 x channel local inputs (expandable to 80 channels) Auxiliary Power Output 1 × 12 VDC, 1 A |
|---|
| 警報輸出 | 4 x channel local outputs (expandable to 84 channels) Network Protocol TCP/IP, DHCP, static IP |
|---|
| 接口 | Remote Update Yes |
|---|
| Network Port | 2 × RJ–45 10/100 self-adaptive Ethernet ports Arm and Disarm Keypad; IC card; web; platform |
|---|
| Telephone Line | 1-ch PSTN Log 20,000 |
|---|
| Keyboard | 32 × LCD keypads Power Failure Protection Yes for Configured Parameters |
|---|
| Storage Battery | 1 × port (battery: 12 VDC/7 Ah) Search Remote Alarm Yes |
|---|
| RS-232 | 1 |
|---|
| User Management | 64 network users and 200 keypad users |
|---|
| Indicator Light | 3 × function indicators |
|---|
| Access Configuration | Keypad; web 1 × forced start button; 1 × default jumper; 1 × factory Button |
|---|
| default jumper | Configurations; system logs; zone faults; system faults; Search program versions |
|---|
| RS-485 | 2 (keypad, expansion module, and printer) |
|---|
| 語言 | English |
|---|
| Buzzer | 1 www.dahuasecurity.com |
|---|
| General | Dimensions (mm [inch]) |
|---|
| 供電 | 100–240 VAC, 50/60 Hz Idling: 5 W Power Consumption Full load: 60 W –10 °C to +55 °C (+14 °F to +131 °F) Operating Environment 10%–90% (RH) 275 mm × 74.8 mm × 275 mm (10.83" × 2.94" × 10.83") Product Dimensions (L × W × H) 375 mm × 155 mm × 312 mm (14.76" × 6.10" × 12.28") Packaging Dimensions (L × W × H) |
|---|
| 安裝 | Wall mount |
|---|
| 淨重 | 2.1 kg (4.63 lb) |
|---|
| 毛重 | 2.5 kg (5.51 lb) |
|---|
| Certifications | FCC; CE Dimensions (mm [inch]) Ordering Information |
|---|
| 類型 | Model Description Alarm |
|---|

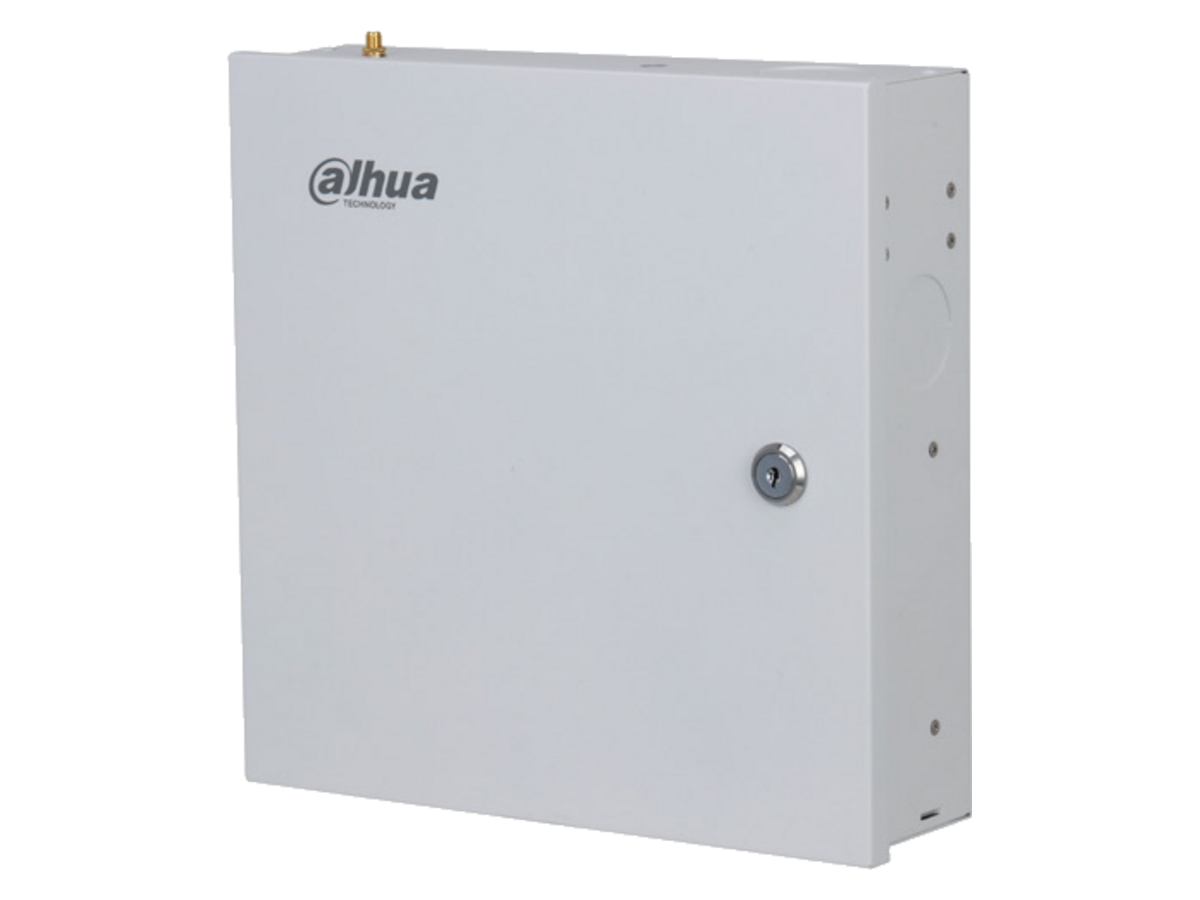

| DHI-ARC2016C-V3 | Alarm controller DSS PRO |
|---|
| controller | Platform |
|---|
| DHI-ARC50C-R | Alarm keypad (supports card) |
|---|
| DHI-ARC50C | Alarm keypad ARK50C/ARK50C-R Alarm Keypad RS-485 |
|---|
| ARM708-RS | Output module RS-485 ARC2016C-V3 Alarm Controller Accessories |
|---|
| ARM808-RS | Input module (Optional) 8 16 |
|---|
| ARA58-P | PSTN module 2 |
|---|
| ARA58-G-EN | 2G module |
|---|
| ARA58-F-EN | 4G module Installation |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
