| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.8" CMOS WDR 120dB |
|---|
| Effective Pixels | 1945(H)×1097(V), 2.1MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D / 3D |
|---|
| PAL: 1.3s~1/30000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1s~1/30000s Certifications |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.4, 30IRE, 0Lux IR on CE (EN55032, EN55024, EN50130-4) |
|---|
| S/N Ratio | More than 65dB Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR Distance | Up to 50m (164feet) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 3 Audio Interface 1-channel audio in |
|---|
| Alarm Interface | 1-channel alarm in & 1-channel alarm out |
|---|
| 鏡頭類型 | Motorized lens / Auto iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply AC 24V±25% / DC 12V±25% |
|---|
| 焦距 | 2.7-12mm Power Consumption Max 12.5W (12V DC, IR on) |
|---|
| Max Aperture | F1.4 Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Angle of View | H: 95°~36° Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 300mm Ingress Protection & Vandal |
|---|
| Close Focus Distance | IP67 & IK10 11.81'' Resistance |
|---|
| DORI Distance | Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to Casing Aluminium pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Dimensions Φ159.1mm×117.9mm (Φ6.26"×4.64") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.90kg (1.98lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| 毛重 | 1.20kg (2.65lb) |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 48m(159ft) 133m(437ft) |
|---|
| Observe | 63px/m (19px/ft) 19m(64ft) 53m(175ft) |
|---|
| Recognize | 125px/m (38px/ft) 10m(32ft) 27m(87ft) |
|---|
| Identify | 250px/m (76px/ft) 5m(17ft) 13m(44ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 65° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & |
|---|
| Video Output | 1-channel BNC CVBS video output CVBS tester out |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| In-ceiling Mount | Pole Mount Ordering Information |
|---|
| PFB201C | PFA138 PFB210W+PFA152-E |
|---|

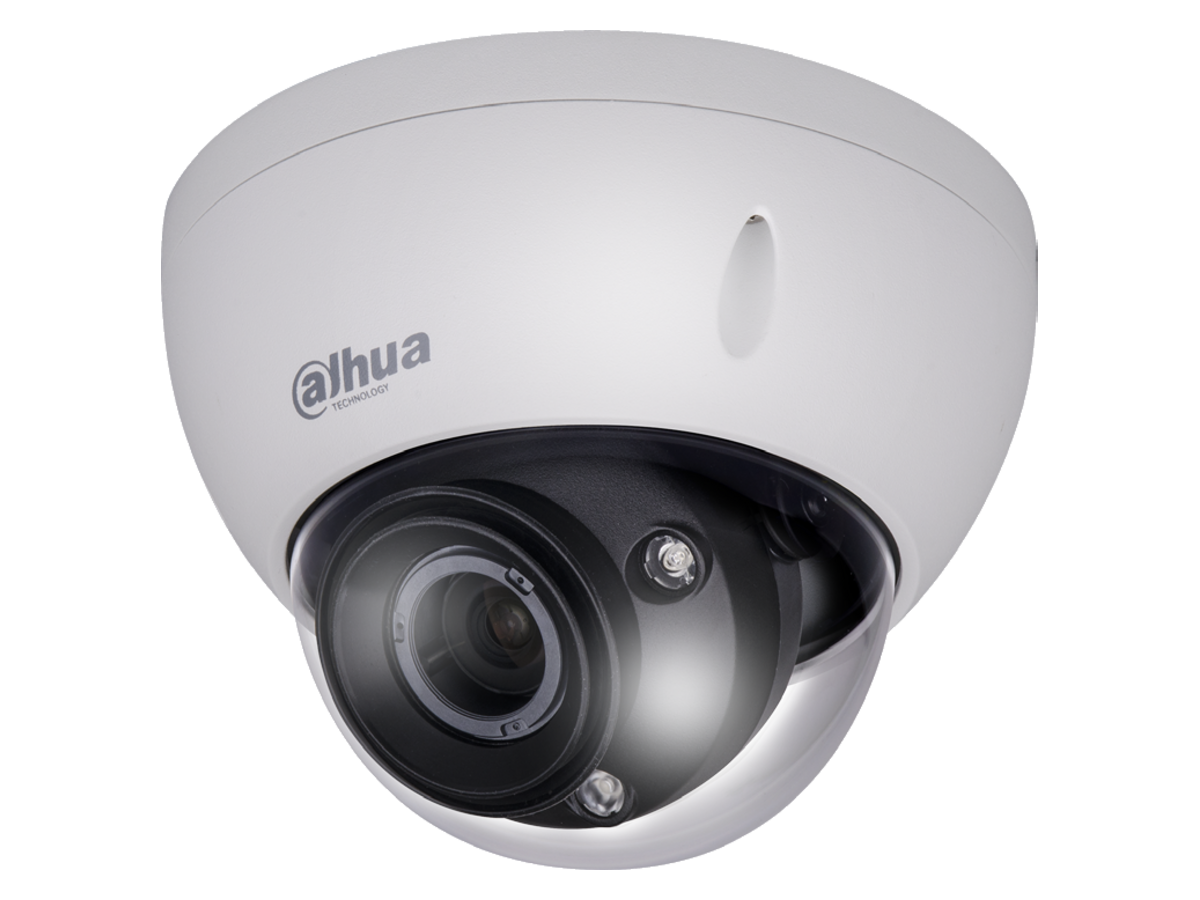

| 類型 | Part Number Description 2MP Starlight HDCVI IR Dome DH-HAC-HDBW3231EP-Z 2.7~12mm Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Dome DH-HAC-HDBW3231EN-Z 2.7~12mm Camera, NTSC |
|---|
| PFA138 | Junction box (For use alone) |
|---|
| Ceiling Mount | Wall Mount |
|---|

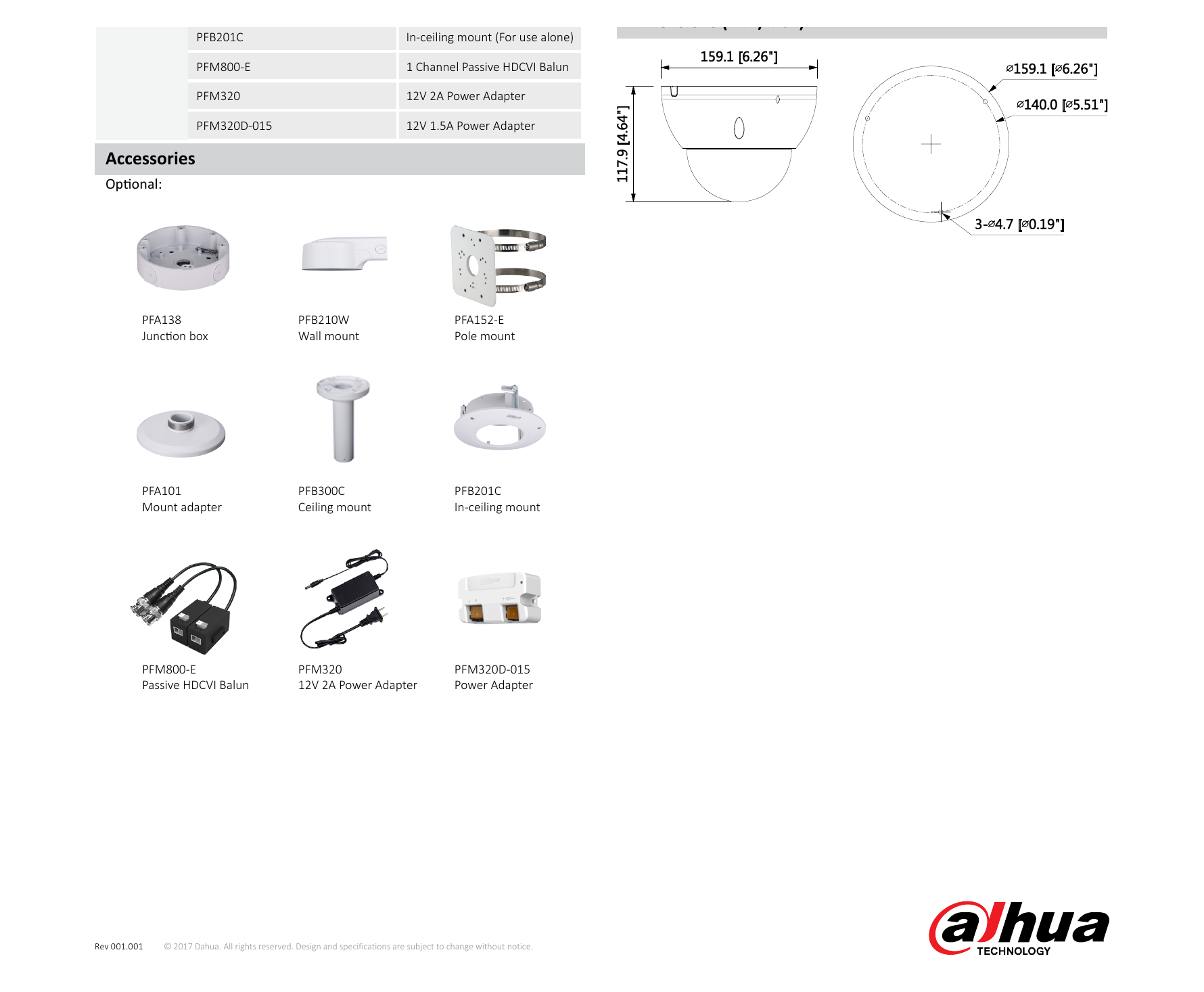

| PFA101+PFB300C | PFB210W (Indoor) PFB210W (Outdoor) Wall mount (For use alone or PFB210W with PFA152-E pole mount) Pole mount (For use with PFA152-E PFB210W wall mount) Mount adapter (For use with PFA101 PFB300C ceiling mount) Accessories Ceiling mount (For use with PFB300C PFA101 mount adapter) Dimensions (mm/inch) |
|---|
| PFM800-E | 1 Channel Passive HDCVI Balun |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Wall mount Pole mount |
|---|
| PFA101 | PFB300C PFB201C |
|---|
| Mount adapter | Ceiling mount In-ceiling mount |
|---|
| Passive HDCVI Balun | 12V 2A Power Adapter Power Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
