| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 3840(H)×2160(V), 8MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100,000s | Noise Reduction 2D/3D Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 1 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface 1 |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm Optional) 12V DC ±30% (It is recommended to use a power Power Supply adapter to supply the power for one camera) |
|---|
| Max Aperture | F1.6 |
|---|
| 功耗 | Max. 7W (12V DC, IR on) |
|---|
| Angle of View | H: 87° (110.8°) Environmental |
|---|
| Focus Control | Auto / Manual -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) 2500mm (1800mm) Close Focus Distance 98.43'' (70.87'') Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Ingress Protection & Vandal |
|---|
| DORI Distance | Resistance IP67 & K10 Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ122mm×88.9mm (Φ4.8"×3.5") Distance |
|---|
| Definition | Net Weight 0.41kg (0.9lb) 2.8mm:84m(276ft) Gross Weight 0.59kg (1.3lb) |
|---|
| Detect | 25px/m (8px/ft) 3.6mm: 104m(341ft) 2.8mm:34m(112ft) |
|---|
| Observe | 63px/m (19px/ft) 3.6mm:42m(138ft) 2.8mm:17m(56ft) |
|---|
| Recognize | 125px/m (38px/ft) 3.6mm: 21m(69ft) 2.8mm:8m(26ft) |
|---|
| Identify | 250px/m (76px/ft) 3.6mm:10m(33ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 8MP (3840×2160) |
|---|
| Frame Rate | 15fps@4K, 20fps@6MP, 25/30fps@4MP 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| 類型 | Part Number Description PFA137 PFB200C |
|---|
| DH-HAC-HDBW2802RP 2.8mm | 4K Starlight HDCVI IR Dome Camera, PAL DH-HAC-HDBW2802RP 3.6mm 4K Camera |
|---|
| DH-HAC-HDBW2802RN 2.8mm | 4K Starlight HDCVI IR Dome Camera, |
|---|
| DH-HAC-HDBW2802RN 3.6mm | NTSC |
|---|
| Wall Mount | Pole Mount |
|---|
| PFA137 | Junction box (For use alone) |
|---|
| PFB203W | PFB203W + PFA152-E |
|---|
| PFB200C | Inceiling mount (For use alone) Wall mount (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFB203W PFA152-E wall mount) Rain shade (For use with PFB203W |
|---|
| FPA200W | wall mount or with PFB203W wall mount and PFA152-E pole mount) |
|---|
| Adapter Plate of Mini Dome & | Wall Mount with Rain Shade Ceiling Mount (Extensible) PFA106 |
|---|
| Eyeball Camera | PFA137+PFA200W PFA106+PFB220C Accessories Ceiling Mount Bracket of Mini Dome PFB220C & Eyeball Camera |
|---|
| PFM800-E | Passive HDCVI Balun HDCVI External Power Isolator(For PFM790 centralized power supply) DC12V 4*0.7A Centralized Power PFM322 Supply Pole Mount with Rain Shade |
|---|
| PFM321 | 12V 1A Power Adapter PFA137+PFA200W+PFA152-E |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

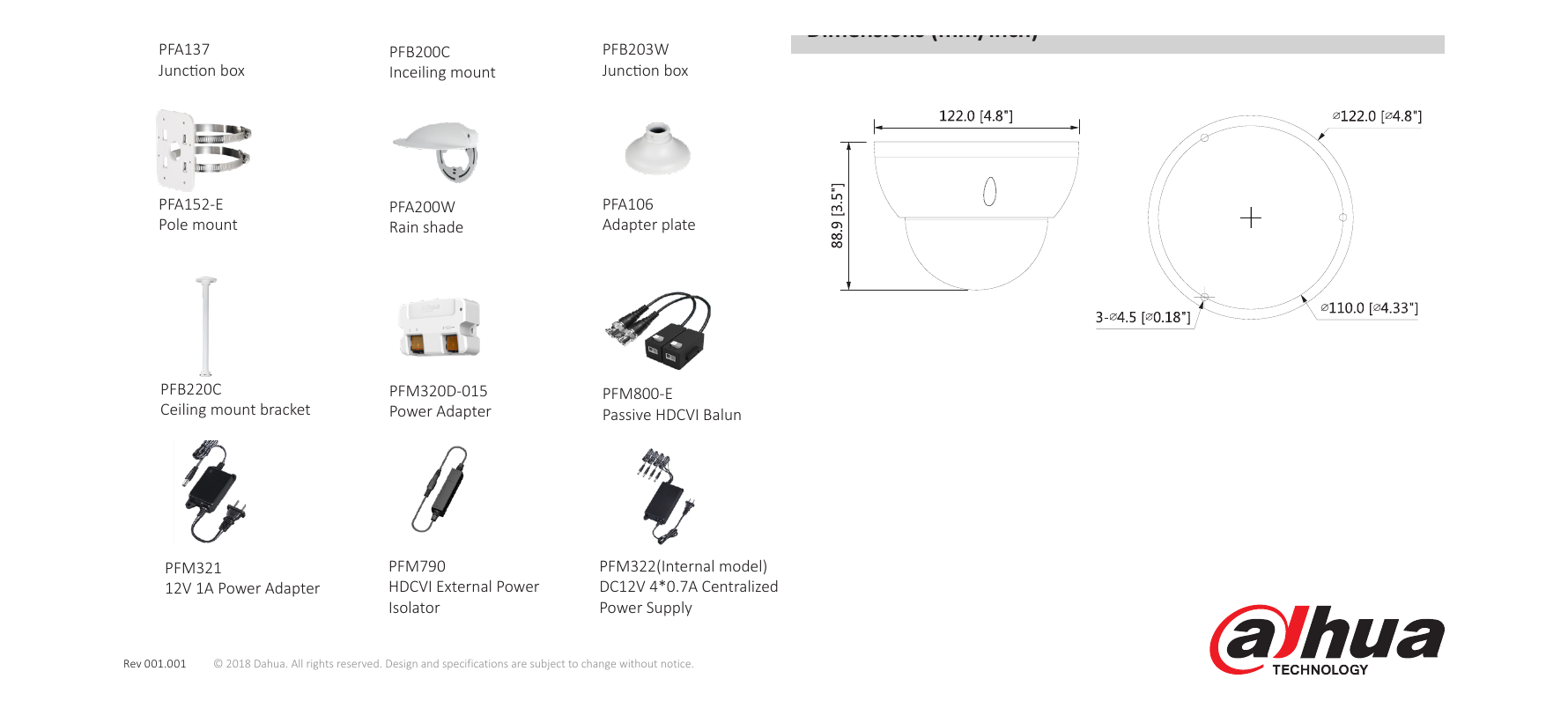

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Inceiling mount Junction box |
|---|
| PFA152-E | PFA200W PFA106 |
|---|
| Pole mount | Rain shade Adapter plate |
|---|
| PFB220C | PFM320D-015 PFM800-E |
|---|
| Ceiling mount bracket | Power Adapter Passive HDCVI Balun |
|---|
| Isolator | Power Supply |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
