| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/3" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1280(H)×720(V), 1MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.05Lux/F2.0, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 20m (66feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 12 |
|---|
| Audio Interface | N/A |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 供電 | 12V DC ±25% |
|---|
| 焦距 | 3.6mm (2.8mm, 6mm Optional) |
|---|
| 功耗 | Max 2.8W (12V DC, IR on) |
|---|
| Max Aperture | F2.0 |
|---|
| Angle of View | H: 72.3° (91.6°/46°) Environmental -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | N/A Operating Conditions * Start up should be done at above -40°C (-40°F) 500mm (400mm/1300mm) Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Close Focus Distance 19.69'' (15.75''/51.18'') Ingress Protection & Vandal IP67 |
|---|
| DORI Distance | Resistance Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on |
|---|
| Casing | Plastic sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|

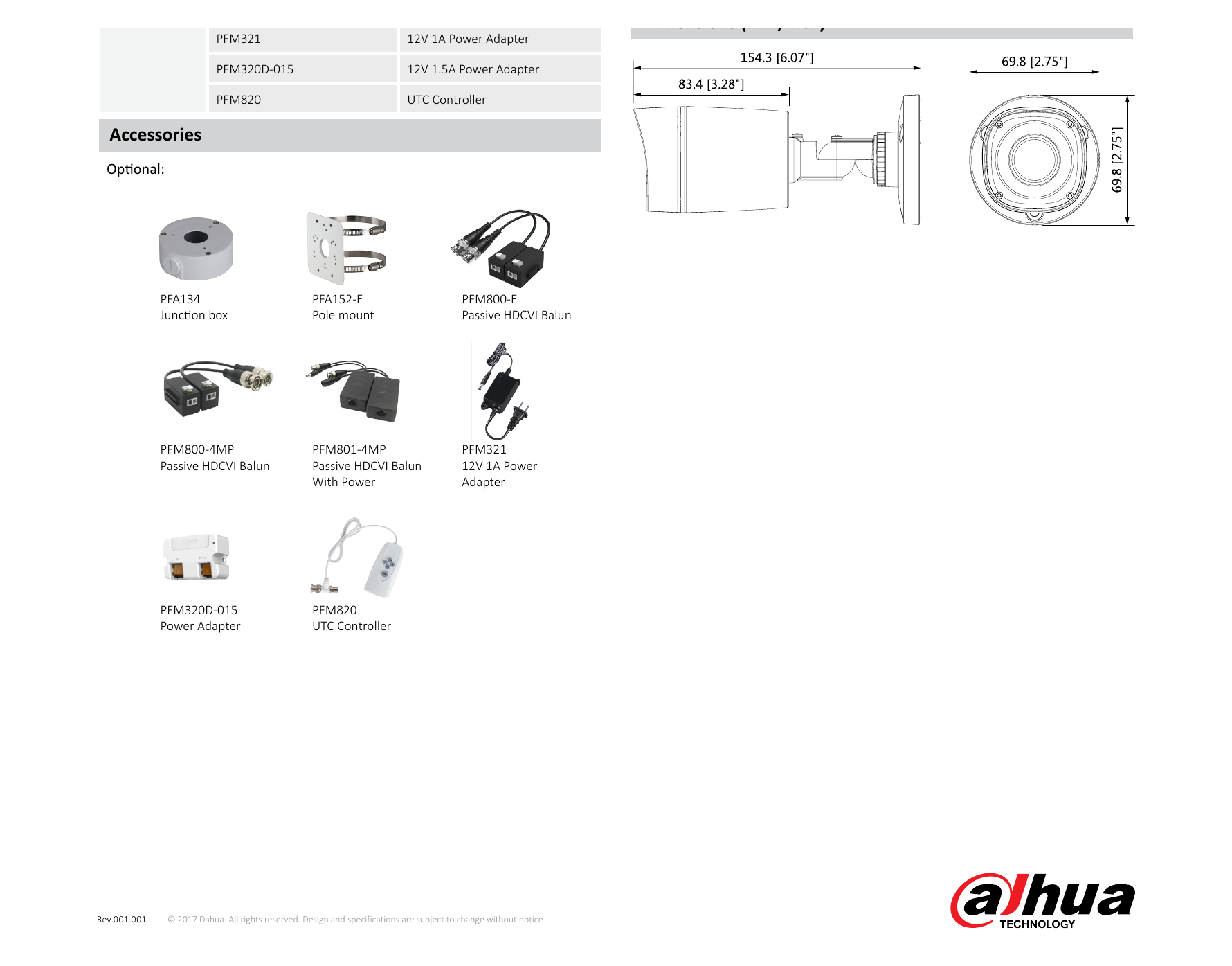

| 尺寸 | 154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75") |
|---|
| Distance | Net Weight 0.20kg (0.44lb) Definition 2.8mm: 35m(114ft) Gross Weight 0.27kg (0.60lb) 25px/m |
|---|
| Detect | 3.6mm: 38m(126ft) (8px/ft) 6mm: 64m(210ft) 2.8mm:14m(46ft) 63px/m |
|---|
| Observe | 3.6mm: 15m(50ft) (19px/ft) 6mm: 26m(84ft) 2.8mm: 7m(23ft) 125px/m |
|---|
| Recognize | 3.6mm: 8m(25ft) (38px/ft) 6mm: 13m(42ft) 2.8mm: 3m(11ft) 250px/m |
|---|
| Identify | 3.6mm: 4m(13ft) (76px/ft) 6mm: 6m(21ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 720P (1280×720) |
|---|
| Frame Rate | 25/30fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA134 | PFB134 + PFA152-E |
|---|
| 類型 | Part Number Description DH-HAC-HFW1100RP 2.8mm |
|---|
| DH-HAC-HFW1100RP 3.6mm | 1MP HDCVI IR Bullet Camera, PAL DH-HAC-HFW1100RP 6mm 1MP Camera DH-HAC-HFW1100RN 2.8mm 1MP HDCVI IR Bullet Camera, DH-HAC-HFW1100RN 3.6mm NTSC DH-HAC-HFW1100RN 6mm Junction box (For use alone or PFA134 with PFA152-E pole mount) Pole mount (For use with PFA134 PFA152-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| Accessories | PFM800-4MP Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power Dimensions (mm/inch) |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| PFM820 | UTC Controller Accessories Optional: |
|---|
| Junction box | Pole mount Passive HDCVI Balun |
|---|
| PFM800-4MP | PFM801-4MP PFM321 |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun 12V 1A Power |
|---|
| With Power | Adapter |
|---|
| Power Adapter | UTC Controller |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
