| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.9” 6Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 3072(H)x2048(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 512MB/32MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.03Lux/F1.4 (Color,1/3s,30IRE) Electronic Image Stabilization |
|---|
| Minimum Illumination | 0.3Lux/F1.4 (Color,1/30s,30IRE) N/A (EIS) 0Lux/F1.4(IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| 除霧 | N/A |
|---|
| IR Distance | Distance up to 100m (328ft) |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | 4 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(HALL) |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 7mm~35mm Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Max. Aperture | F1.4 Network |
|---|
| Angle of View | H:32°~10° , V:22°~8° Ethernet RJ-45 (10/100Base-T) |
|---|
| Optical Zoom | 5x HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; |
|---|
| Focus Control | Motorized IGMP; SNMP |
|---|
| Close Focus Distance | 0.6m Interoperability ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify Streaming Method Unicast / Multicast |
|---|
| Distance | W 234m(767ft) 94m(308ft) 47m(154ft) 23m(75ft) |
|---|
| Max. User Access | 10 Users /20 Users |
|---|
| T | 765m(2509ft) 306m(1004ft) 153m(502ft) 76m(251ft) NAS |
|---|
| Pan/Tilt/Rotation | Edge Storage Local PC for instant recording Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Face Detection Certifications CE (EN 60950:2000) |
|---|
| Compression | H.265+/H.265/H.264+/H.264 Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ Video Interface 1 Port(For adjustment only) |
|---|
| 解像度 | 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ |
|---|
| D1(704×576/704×480)/ | Audio Interface 1/1 channel In/Out VGA(640×480)/ CIF(352×288/352×240) |
|---|
| Main Stream: 6M(1~20fps)/4M(1~25/30fps) | RS485 N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) 2/1 channel In/Out2 channel In: 5mA 5VDC Alarm 1 channel Out: 300mA 12VDC Third Stream: 720P(1~25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, PoE (802.3af)(Class 0) H.264: 24K ~ 10240Kbps Bit Rate |
|---|
| H.265: 14K ~ 9984Kbps | Power Consumption <12.95W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| PFA121 | PFA152-E |
|---|
| Casing | Metal LR1002 |
|---|
| Junction box | Pole Mount ePoE Over Coax Converter |
|---|

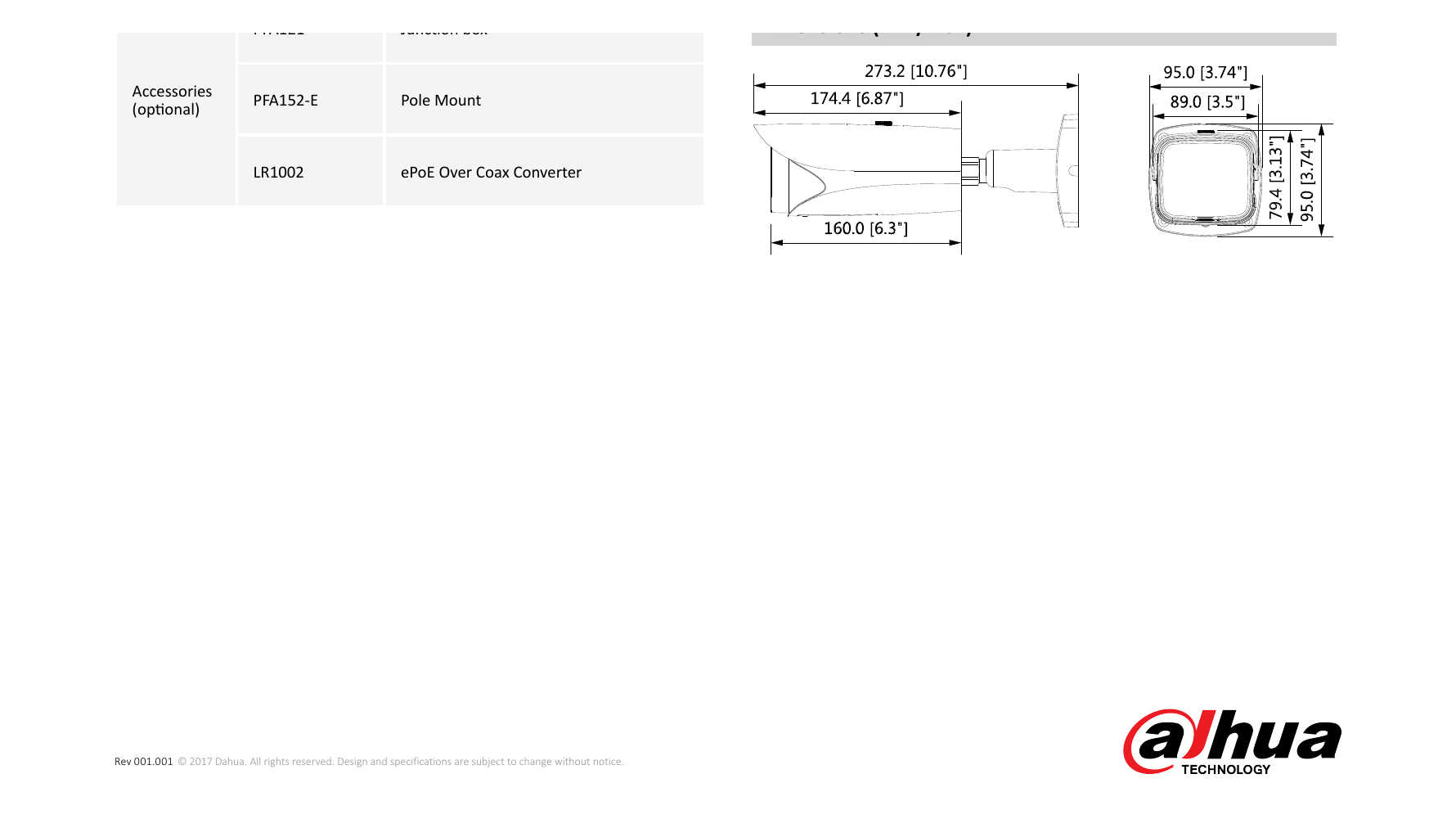

| 尺寸 | 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”) |
|---|
| 淨重 | 1.11Kg (2.44lb) t Pole Mount |
|---|
| 毛重 | 1.51Kg (3.33lb) Ordering Information |
|---|

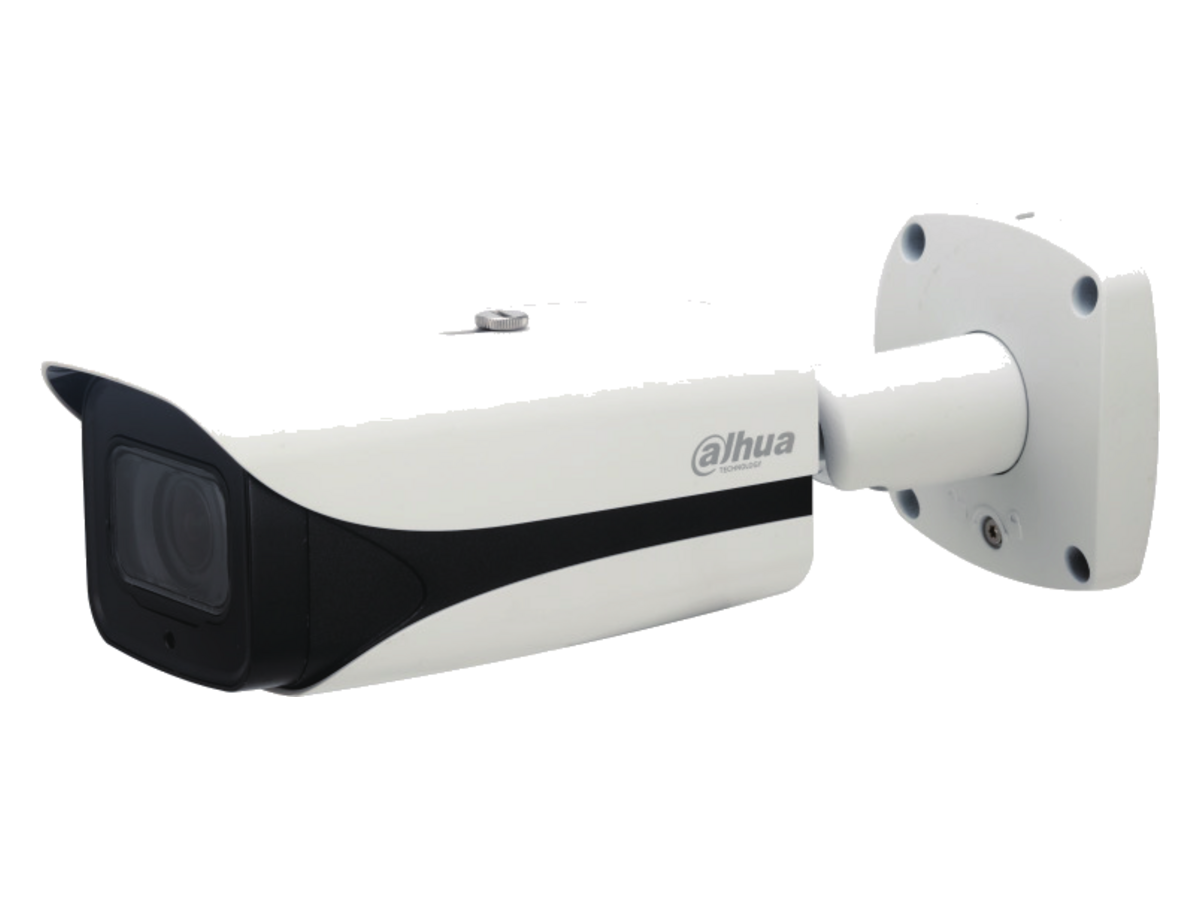

| 類型 | Part Number Description DH-IPC- 6MP IR Bullet Network Camera, WDR, PAL HFW5631EP-Z5E |
|---|
| DH-IPC- | 6MP IR Bullet Network Camera, WDR, |
|---|
| HFW5631EN-Z5E | NTSC 6MP camera IPC-HFW5631EP- 6MP IR Bullet Network Camera, WDR, PAL Z5E |
|---|
| IPC-HFW5631EN- | 6MP IR Bullet Network Camera, WDR, |
|---|
| Z5E | NTSC |
|---|
| PFA152-E | Pole Mount (optional) |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
