| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/1.8" CMOS WDR 120dB |
|---|
| Effective Pixels | 3840(H)×2160(V), 8MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.5, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 30m (98feet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 2 |
|---|
| Audio Interface | 1 |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| 供電 | AC 24V±30% / DC 12V±30% |
|---|
| Mount Type | Board-in |
|---|
| 電源輸出 | DC 12V / Max. 2W |
|---|
| 焦距 | 3.7-11mm |
|---|
| 功耗 | Max 8.4W |
|---|
| Max Aperture | F1.5 |
|---|
| Angle of View | H: 112°~46° Environmental -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Focus Control | Auto / Manual Operating Conditions * Start up should be done at above -30°C (-22°F) 200mm Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Close Focus Distance 7.87'' Ingress Protection & Vandal IP67 & IK10 |
|---|
| DORI Distance | Resistance Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Casing Aluminium sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ122mm×88.9mm (Φ4.8"×3.5") |
|---|
| DORI 偵測距離 | Distance |
|---|
| 淨重 | 0.47kg (1.04lb) |
|---|
| Definition | Wide Tele |
|---|
| 毛重 | 0.65kg (1.43lb) |
|---|
| Detect | 25px/m (8px/ft) 83m(272ft) 190m(623ft) |
|---|
| Observe | 63px/m (19px/ft) 33m(108ft) 76m(249ft) |
|---|
| Recognize | 125px/m (38px/ft) 17m(56ft) 38m(125ft) |
|---|
| Identify | 250px/m (76px/ft) 8m(26ft) 19m(62ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 8MP (3840×2160) |
|---|
| Frame Rate | 15fps@4K, 20fps@6MP, 25/30fps@4MP 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDBW2802RP-Z-DP | 4K Starlight HDCVI IR Dome Camera, 3.7~11mm PAL 4K Camera |
|---|
| DH-HAC-HDBW2802RN-Z -DP | 4K Starlight HDCVI IR Dome Camera, 3.7~11mm NTSC |
|---|
| Wall Mount | Pole Mount |
|---|
| PFB200C | Inceiling mount (For use alone) PFB203W PFB203W + PFA152-E Wall mount (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFB203W PFA152-E wall mount) Rain shade (For use with PFB203W |
|---|
| FPA200W | wall mount or with PFB203W wall mount and PFA152-E pole mount) Accessories Adapter Plate of Mini Dome & Eyeball PFA106 |
|---|
| PFA137+PFA200W | PFA106+PFB220C Ceiling Mount Bracket of Mini Dome & PFB220C Eyeball Camera |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter |
|---|
| Accessories | Pole Mount with Rain Shade PFA137+PFA200W+PFA152-E Optional: |
|---|

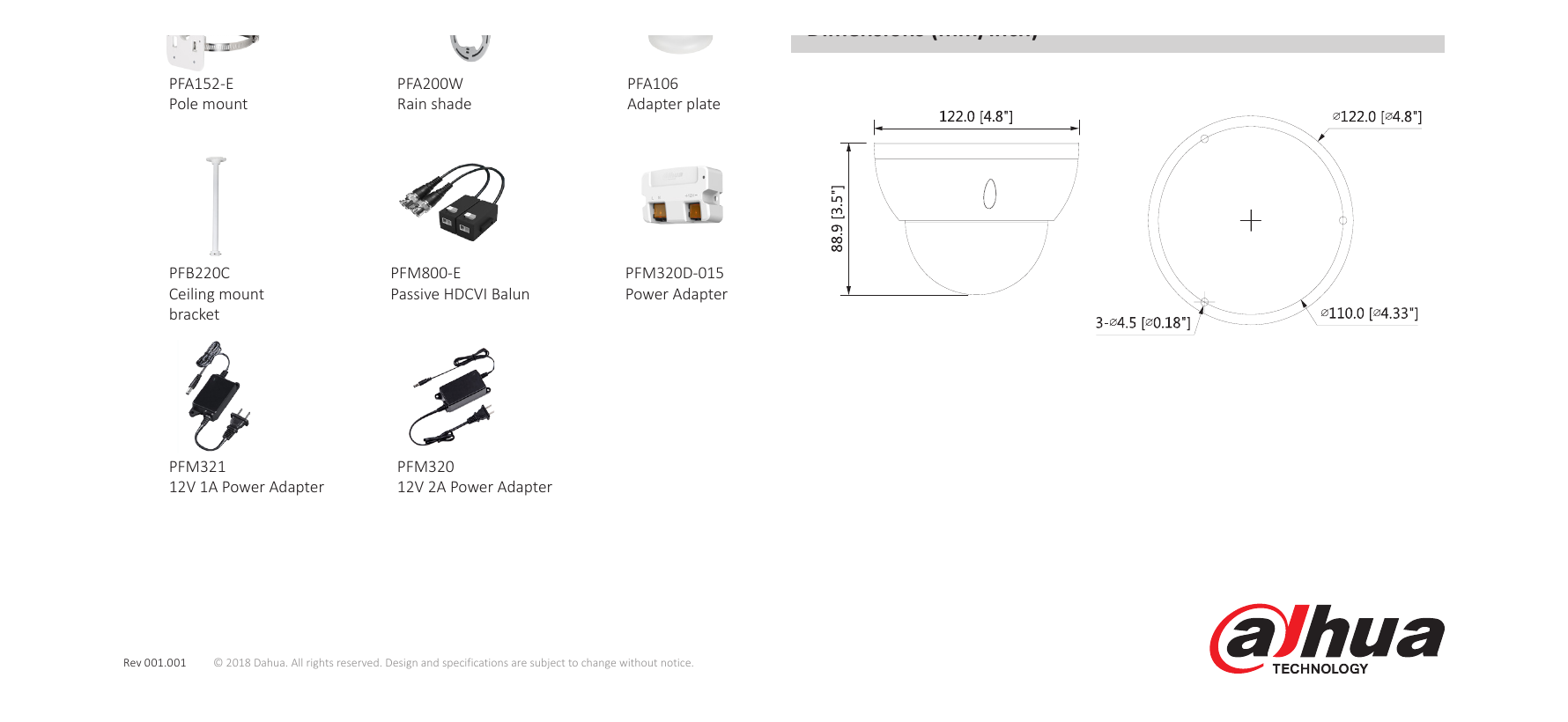

| Junction box | Inceiling mount Junction box Dimensions (mm/inch) |
|---|
| PFA152-E | PFA200W PFA106 |
|---|
| Pole mount | Rain shade Adapter plate |
|---|
| PFB220C | PFM800-E PFM320D-015 |
|---|
| Ceiling mount | Passive HDCVI Balun Power Adapter bracket |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
