| Camera | Day/Night Auto(ICR) / Color / B/W |
|---|
| 影像感測器 | 1/2.9” 6Megapixel progressive scan CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 3072(H)x2048(V) White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| RAM/ROM | 512MB/32MB Gain Control Auto/Manual |
|---|
| Scanning System | Progressive Noise Reduction 3D DNR |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Motion Detetion Off / On (4 Zone, Rectangle) 0.03Lux/F1.6 (Color,1/3s,30IRE) Region of Interest Off / On (4 Zone) |
|---|
| Minimum Illumination | 0.3Lux/F1.6 (Color,1/30s,30IRE) 0Lux/F1.6(IR on) Electronic Image Stabilization N/A (EIS) |
|---|
| S/N Ratio | More than 50dB |
|---|
| Smart IR | Support |
|---|
| IR Distance | Distance up to 50m (164ft) |
|---|
| 除霧 | N/A |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Digital Zoom | 16x |
|---|
| IR LEDs | 2 |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| Mirror | Off / On |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(DC) |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 2.7mm~13.5mm |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Max. Aperture | F1.6 |
|---|
| Angle of View | H:91°~27° , V:58°~18° |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Optical Zoom | 5x HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; |
|---|
| Focus Control | Motorized Protocol DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Close Focus Distance | 0.3m |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| W | 79m(259ft) 32m(105ft) 16m(52ft) 8m(41ft) |
|---|
| Distance | Max. User Access 10 Users /20 Users |
|---|
| T | 256m(840ft) 102m(334ft) 51m(167ft) 25m(84ft) NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation | Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Smart Phone IOS, Android Advanced Intelligent Functions Face Detection Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Streaming Capability | 3 Streams |
|---|
| Video Interface | N/A 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ |
|---|
| 解像度 | 1080P(1920×1080)/1.3M(1280x960)/ Audio Interface Built-in Mic 720P(1280×720)/ D1(704×576/704×480)/ |
|---|
| VGA(640×480)/ CIF(352×288/352×240) | RS485 N/A |
|---|
| Main Stream: 6M(1~20fps)/4M(1~25/30fps) | Alarm N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) Electrical |
|---|
| Third Stream: 720P(1~25/30fps) | Power Supply DC12V, PoE(802.3af)(Class 0) |
|---|
| 碼率控制 | CBR/VBR Power Consumption <8.5W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| PFA137 | PFB203W PFA152-E LR1002 |
|---|
| Casing | Metal |
|---|
| Junction Box | Wall Mount Pole Mount ePoE Over Coax Converter |
|---|

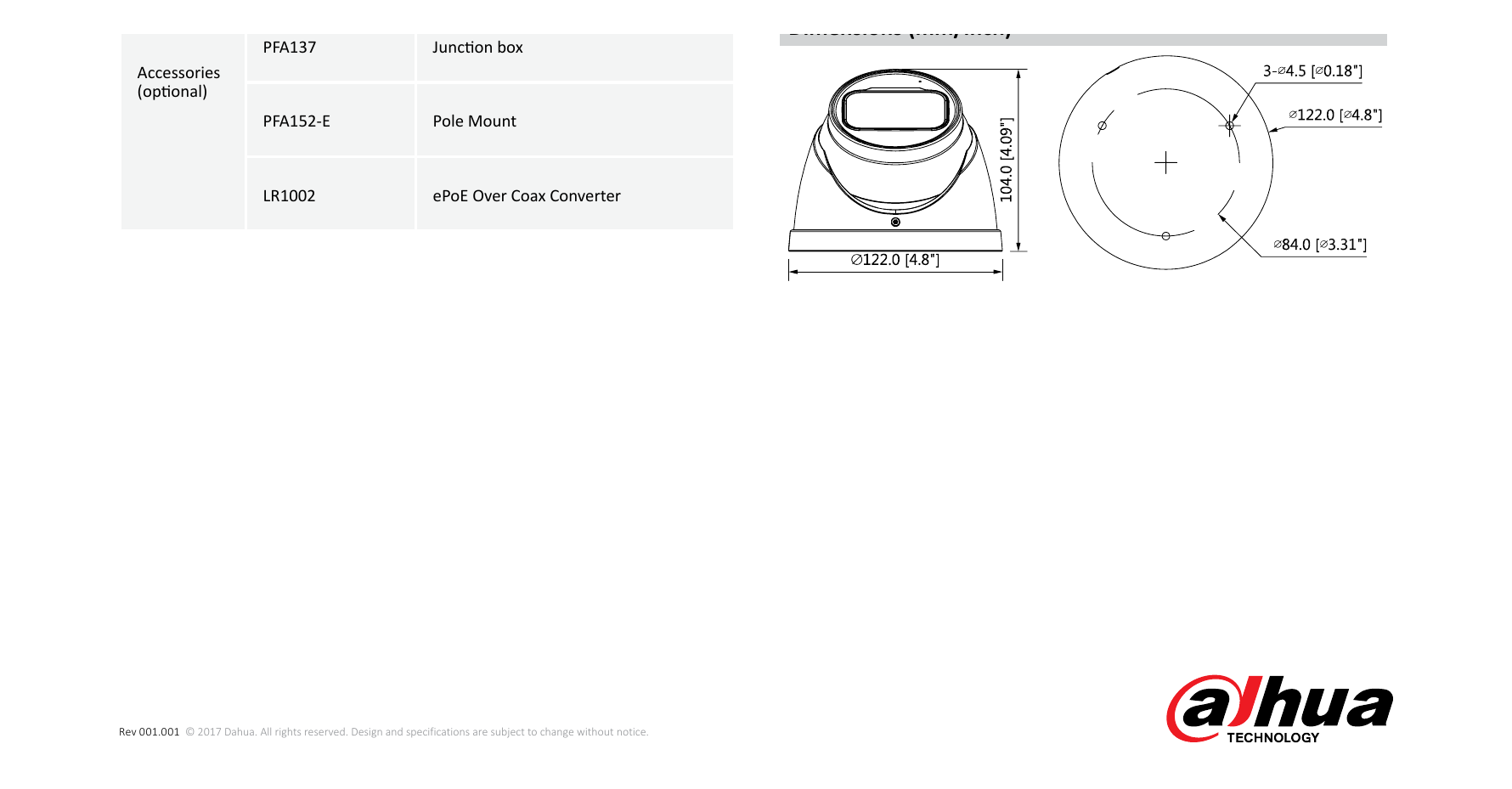

| 尺寸 | Φ122mm×104mm( 4.8”×4.09”) |
|---|
| 淨重 | 0.6Kg (1.32lb) Pole Mount |
|---|
| 毛重 | 0.76Kg (1.67lb) Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC- | 6MP IR Eyeball Network Camera, WDR, |
|---|
| HDW5631RP-ZE | PAL Wall Mount |
|---|
| HDW5631RN-ZE | NTSC 6MP camera 6MP IR Eyeball Network Camera, WDR, IPC-HDW5631RP-ZE PAL 6MP IR Eyeball Network Camera, WDR, IPC-HDW5631RN-ZE NTSC |
|---|
| PFB203W | Wall mount Dimensions (mm/inch) |
|---|
| PFA152-E | Pole Mount |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
