| System | channel8MP (30fps)/12-channel8MP (15fps)/7- channel6MP(30fps)/9-channel5MP(30fps)/11- Decoding Capability |
|---|
| Main Processor | Industry embedded micro-controller channel5MP (25fps)/12-channel4MP (30fps)/18- channel4MP (20fps)/19-channel3MP (25fps)/12- channel1080P (60fps)/24-channel1080P (30fps)/36- |
|---|
| 操作系統 | Embedded Linux OS channel720P (30fps) |
|---|
| Operation Interface | WEB (PCAPP), local GUI 1-channel VGA output, 3-channel HDMI output, VGA 1/ |
|---|
| Video Output | HDMI 1 outputs the same video source. Supports 4K |
|---|
| AI Applications | output Face detection, face recognition, video metadata, Customized display. Max. 36-channel local live view. |
|---|
| Multi-screen Display | Max.16-channel PCAPP live view IVS (tripwire, intrusion, abandoned object, missing |
|---|
| AI by Camera | object, fast moving, parking detection, crowd gathering, Onvif, RTSP, Sony, Panasonic, Axis, Arecont, |
|---|
| loitering,parking, and fence-crossing), | Third-party Support Pelco,Canon, Samsung people counting, smoking detection, call detection |
|---|
| 視頻壓縮 | Smart H.265+/Smart H.264+/H.265/H.264 Supports 6 properties: Gender, age range (6-level), Human Face Properties glasses, expression (8 types), mouth mask, and beard Audio Compression G.711A/G.711U/PCM/G726 |
|---|
| Face Detection | Network |
|---|
| Performance (AI by | 128-channel |
|---|
| Camera) (Channel Number) | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
|---|
| Human Face Recognition | Mobile Phone DMSS |
|---|
| ANPR | Network Mode balance, fault-tolerance, etc 50 plate databases with 300,000 plate numbers in total Plate Database Capacity |
|---|
| Supports allowlist and blocklist | Record Playback |
|---|
| Plate Detection | Multiple-channel Playback Max. 16-channel playback 64-channel Performance Search video detection/manual record/IO alarm/ Record Search |
|---|
| Video Metadata | intelligent event/all record file Gender, age, sleeves length, top color, bottom type, Storage Medium Internal HDD, SAS disk array enclosure |
|---|
| Human Body Properties | bottom color, bag, rain coat, umbrella, hat, hairstyle, |
|---|
| direction, hold a baby, mouth mask | Backup Method HDD, peripheral USB storage device Vehicle type, vehicle color, plate color, logo, calling, 1. Play/pause/stop/fast forward/fast backward/reverse Vehicle Properties |
|---|
| seatbelt, ornament, region | play/frame by frame play. Playback Function 2. Full-screen, backup (clip/file), snapshot, digital zoom, Non-motor vehicle type, non-motor vehicle color, audio on/off Non-motor Vehicle number of passengers, umbrella, rain coat, bag , sleeve |
|---|
| Properties | length, top color, hat, hair style, mouth mask Storage |
|---|
| Metadata Performance (AI | HDD Group 24 |
|---|
| by Device) (1080P) (Channel | N/A |
|---|
| Number) | RAID RAID0/1/5/6/10/50/60 Metadata Performance (AI by Camera) (Channel 64-channel Storage Pool N/A Number) Alarm |
|---|
| General Alarm | Motion detect, tampering, local alarm |
|---|
| 遠程連接 | 256 IPC offline alarm, storage error, HDD full, IP conflict, Anomaly Alarm MAC conflict, login lock, fan malfunction RAID Incoming bandwidth: 768Mbps |
|---|
| Recording bandwidth: 768Mbps | Human face detection, human face recognition, video |
|---|
| Outgoing bandwidth: 768Mbps | Intelligent Alarm metadata (person/vehicle/non-motor vehicle), IVS, |
|---|
| Network Bandwidth | plate recognition, people counting, smoking, call Single HDD Incoming bandwidth: 768Mbps |
|---|
| Recording bandwidth: 512Mbps | Record, picture storage (full image), local external alarm |
|---|

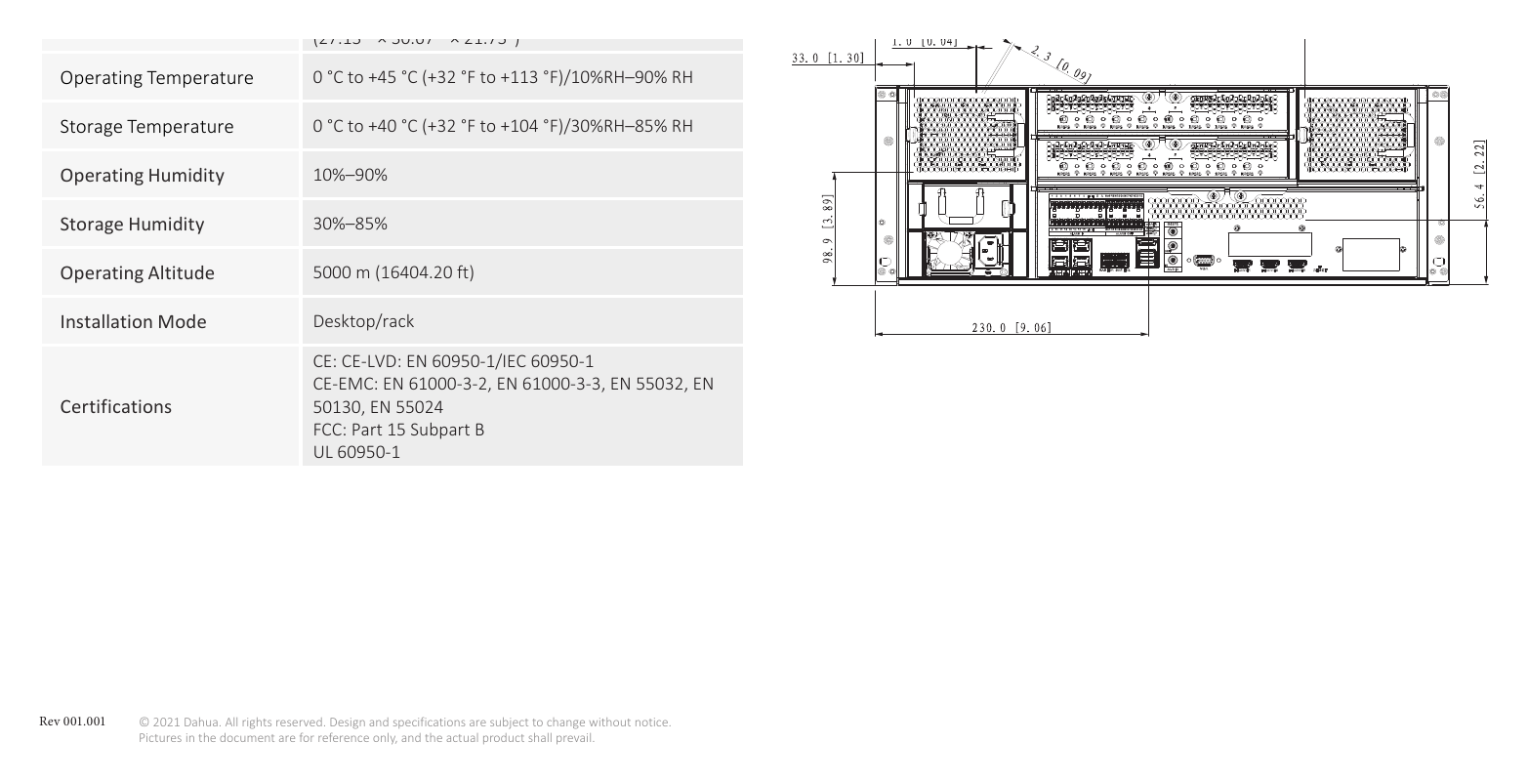

| Peripheral Interface | Dimensions(mm[inch]) |
|---|
| 音訊輸入 | 1-channel(reserved) |
|---|
| 音訊輸出 | 1-channel, speaker output, audio linkage output |
|---|
| 警報輸入 | 16-channel |
|---|
| 警報輸出 | 8-channel |
|---|
| Internal HDD | 24 slots, SATA3.0/SAS. Max.16T/HDD |
|---|
| eSATA | 1 port |
|---|
| SAS | 2 SAS3.0 ports |
|---|
| RS-232 | 1 port, for debug or transparent COM data 1 port, control peripheral PTZ and so on. Supports RS-485 various protocols 4 ports. 2 USB2.0 port at the front panel and 2 USB3.0 USB port a the rear panel |
|---|
| HDMI | 3 ports; support 4K output |
|---|
| VGA | 1 port |
|---|
| Network | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
|---|
| 供電 | 1 port |
|---|
| PoE | N/A |
|---|
| 淨重 | 17 kg (37.48 lb) |
|---|
| 毛重 | 18 kg (39.68 lb) Chassis: 446 mm × 514.5 mm × 175 mm (17.56 " ×20.21 " × 6.89 ") Dimensions Max. size: 482.6 mm (with hanger) × 514.5 mm × 175 mm (with feet mat) (19.00 " × 20.26 " × 6.89 ") 689 mm × 779 mm × 552 mm Packaging Dimensions (27.13 " × 30.67 " × 21.73") |
|---|
| 工作溫度 | 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH |
|---|
| 儲存溫度 | 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH |
|---|
| 工作濕度 | 10%–90% |
|---|
| Storage Humidity | 30%–85% |
|---|
| Operating Altitude | 5000 m (16404.20 ft) |
|---|
| 安裝方式 | Desktop/rack CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN |
|---|
| Certifications | 50130, EN 55024 FCC: Part 15 Subpart B UL 60950-1 |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
