DAHUA PFM922I-6UN-C CCTV攝影機安裝・保養

Name: DAHUA PFM922I-6UN-C DH-PFM922I-6UN-C
Brand: Dahua
SKU: PFM922I-6UN-C

產品簡介

Dahua PFM922I-6UN-C 為DH-PFM922I-6UN-C，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 PFM922I-6UN-C 香港價格連安裝報價。

材質：CCA(Copper content 22%–31%)
Diameter：0.57 mm ± 0.01 mm
American Wire Gauge：23AWG Insulation
Min. Average Thickness：0.21 mm
Color (4 Pairs)：Blue, white/blue; orange, white/orange; green, white/green;

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

PFM922I-6UN-C Dahua DH-PFM922I-6UN-C 產品圖片

詳細規格

材質	CCA(Copper content 22%–31%)
Diameter	0.57 mm ± 0.01 mm
American Wire Gauge	23AWG Insulation
Min. Average Thickness	0.21 mm
Color (4 Pairs)	Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown Separator
Specification	Translucent 4.5 × 0.4 mm Rip Cord
顏色	Orange Electrical
Max. DC Resistance of a Single Conductor	11.5Ω/100 m
Min. Insulation Resistance	5000MΩ·km
Max. DC Resistance Unbalance	2% (pair intra), 4% (pairs inter)
Dielectric Strength	No breakdown with 1KV DC for 1 min Transmission
Characteristic Impedance	100 ± 15Ω
Near End Cross Talk	≥39.30 dB/100 m@250 MHz
Max. Attenuation	34.8 dB/100 m@250 MHz
Return Loss	≥17.3 dB/100 m@250 MHz
Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break	Sheath≥150%, insulation≥300%
Installation Bending Radius	>8 times of outer cable diameter
Conductor Elongation at Break	≥10% Environmental
Shrinkage of Insulation	≤5%
Color Migration Resistance of Insulation	No migration www.dahuasecurity.com Sheath Tensile Strength and Elongation at Break after Aging ≥12.5 MPa, ≥100%
Low Temperature Bending Test	No cracking after the test
Heat Shock Test	No cracking after the test
Operation Temperature	–20°C to +60°C (–4°F to 140°F)
Installation Temperature	0°C to +50°C (32°F to 122°F)
Storage Temperature and Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH) Security
Vertical Fire Propagation Test	Comply with IEC 60332-1-2 Packaging
Length	305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Packaging Dimensions	390.0 mm x 390.0 mm x 247.0 mm (15.37"x15.37"x9.73") (L × W × H)
Packaging Method	305.0 m (1000.66 ft) a carton, one protection carton with 2 cartons inside
淨重	≥9.2 kg (20.28 lb)
毛重	≥10.2 kg(22.49 lb) Executive Standard
Executive Standard	Q/DXJ 067-2019
Certification	CPR Eca Ordering Information
類型	Part Number Description

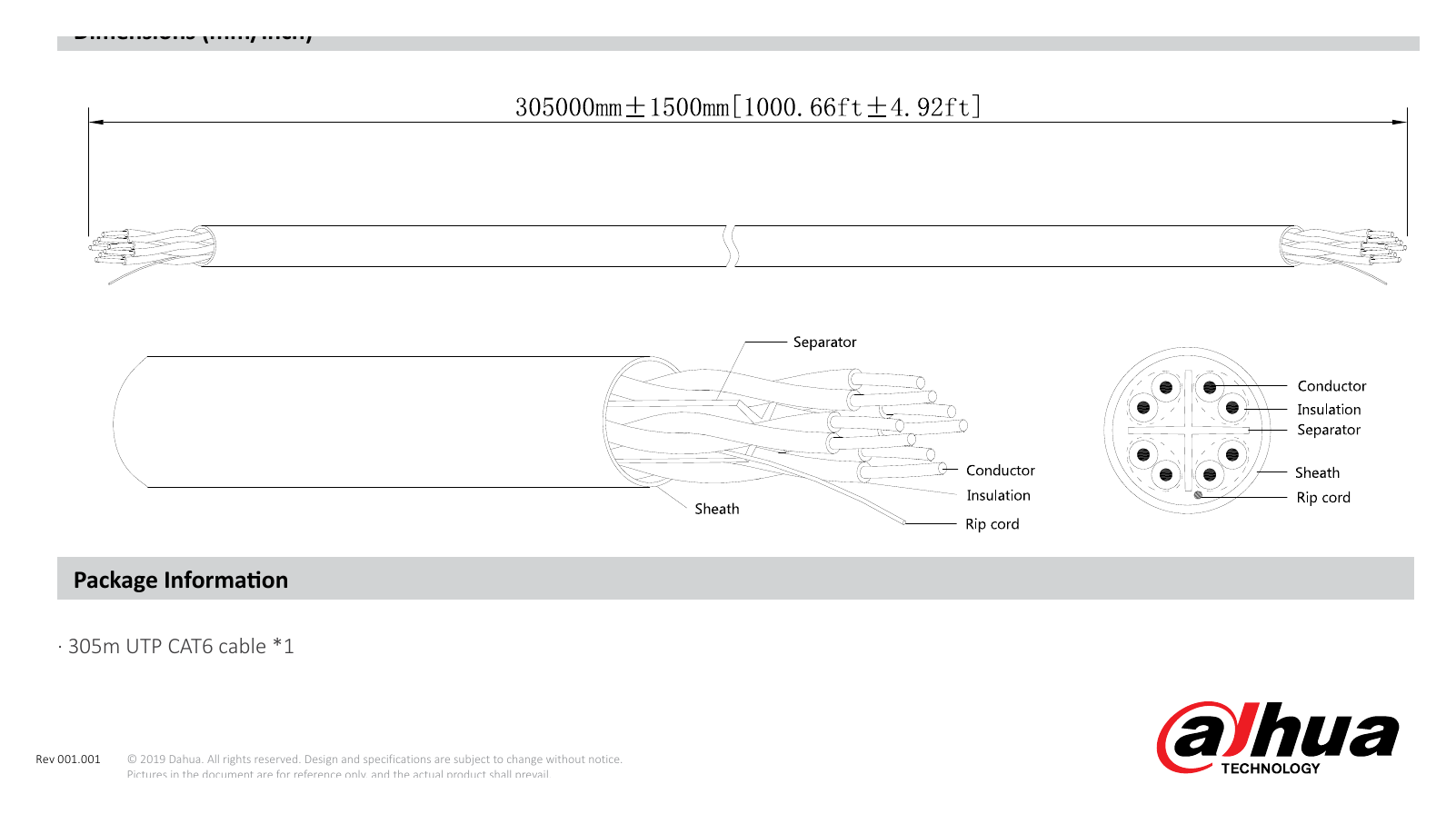

Network Cable	DH-PFM922I-6UN-C UTP CAT6 Cable Dimensions (mm/inch) Package Information · 305m UTP CAT6 cable *1
Rev 001.001	© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com
