Hikvision DS-2CD6395G1E-IVS 為9 MP DeepinView IR Network Fisheye Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD6395G1E-IVS 香港價格連安裝報價。
| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 3024 × 3024 Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with |
| 快門速度 | 1 s to 1/100,000 s |
| 日夜切換 | IR cut filter |
| 鏡頭類型 | Fixed focal lens, 2 mm |
| 鏡頭及視場角 | 2 mm, 360° panoramic view |
| 光圈類型 | Fixed |
| 光圈 | F2.25 |
| Depth of Field | 0.2 m to ∞ D: 23.2 m O: 9.2 m R: 4.6 m I: 2.3 m |
| 補光類型 | IR |
| 補光距離 | Up to 15 m |
| Supplement Light Number | 3 |
| 智能補光 | Yes |
| 紅外波長 | 850 nm Memory: 41 MB, Smart RAM: 180 MB |
| Computing Power | 2 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe,TensorFlow,PyTorch |
| Programming Language | C,C++ 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fus |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR,VBR |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 4 fixed regions for each stream |
| Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4 |
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, |
| 網絡協議 | NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| 同時取流 | Up to 20 channels Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, |
| API | Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address), TPM 2.0 (FIPS 140-2 level 2) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| 客戶端 | iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect Plug-in required live view: IE 10, IE 11, |
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| 圖像參數切換 | Yes saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
| 寬動態 WDR | Digital WDR |
| 影像增強 | BLC,HLC,3D DNR,Distortion Correction,Defog |
| 隱私遮蔽 | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| 內置麥克風 | Yes, 2 built-in microphones |
| Built-in Speaker | Yes, 1 built-in speaker 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| 警報 | 1 inputs, 1 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| 重設鍵 | 1 Reset Key Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
| 智能事件 | detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture A graphic description of visits (by calculating amount of people or amount of dwell |
| Heat Map | time) in a configured area., Two report types are available, space heat map and time heat map line chart. 12 VDC ± 20%, 0.8 A, max. 9.6 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 9.6 W |
| 材質 | Metal |
| 尺寸 | Ø 140.3 mm × 59.4 mm (Ø 5.5" × 2.3") |
| 包裝尺寸 | 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
| 重量 | Approx. 715 g (1.58 lb.) |
| 連包裝重量 | Approx. 1206 g (2.66 lb.) |
| 儲存環境 | -30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional |
| Cable Length | 0.31 m (1.02 ft.) CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, |
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| 防護等級 | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

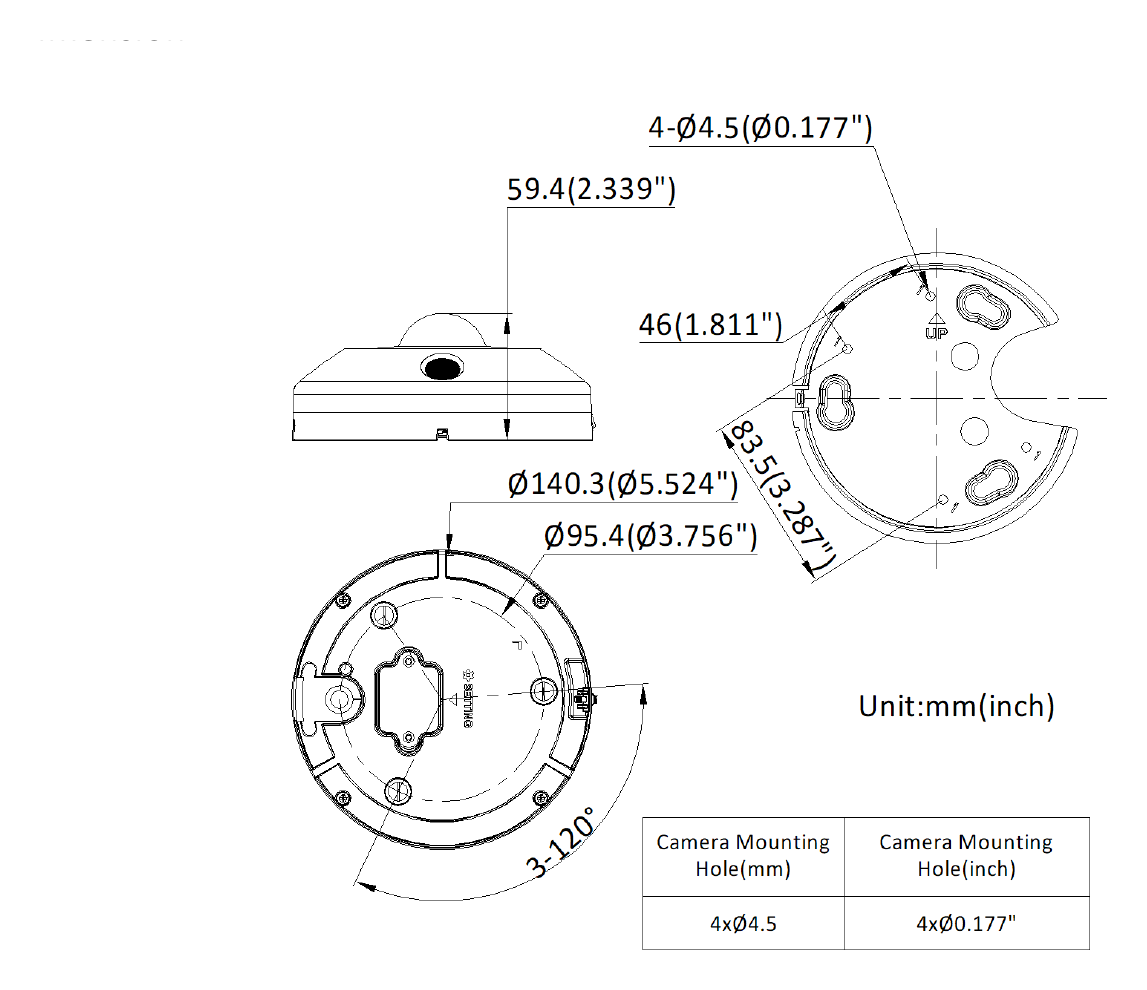

Ø 140.3 mm × 59.4 mm (Ø 5.5" × 2.3")｜重量 Approx. 715 g (1.58 lb.)｜Unit: mm
DS-2CD6395G1E-IVS Hikvision 9 MP DeepinView IR Network Fisheye Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2CD6395G1E-IVS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2CD6395G1E-IVS 係 1/1.8" Progressive Scan CMOS，THC-B127-LTS 係 2 MP CMOS；日夜切換方面，DS-2CD6395G1E-IVS 係 IR cut filter，THC-B127-LTS 係 ICR；寬動態 WDR方面，DS-2CD6395G1E-IVS 係 Digital WDR，THC-B127-LTS 係 Digital WDR DWDR, BLC,。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 THC-B127-LTS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2CD6395G1E-IVS 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2CD6395G1E-IVS Hikvision 9 MP DeepinView IR Network Fisheye Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝、沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2CD6395G1E-IVS 香港價格連安裝報價。
DS-2CD6395G1E-IVS Hikvision 9 MP DeepinView IR Network Fisheye Camera適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
保險經紀行裝 CCTV 監控客戶會面室同文件存放區，簽單過程存證減少銷售爭議，配合保監局合規要求，出入口記錄同事同訪客往來。免費上門評估，尖沙咀、灣仔保險行即約報價。上門度尺不收費、即日出報價，香港、新界一帶即日上門。
WhatsApp 查詢 →私人銀行、財富管理公司裝 CCTV 監控貴賓客戶室同簽署文件過程，高保安等級佈點配合監管合規存證，出入口人臉識別記錄訪客身份。持牌團隊免費勘察，中環、金鐘金融樓層歡迎查詢。持牌團隊免費勘察、明碼報價，香港、新界一帶即日上門。
WhatsApp 查詢 →珠寶鑑定、拍賣行裝 CCTV 高清近攝監控鑑定枱同展示品，配合保險公司存證要求，出入口人流管控同限量門禁進出記錄，防止高值品調換或盜取。免費上門評估，中環、尖沙咀鑑定拍賣行即約報價。免費上門度尺、報價一目了然，香港、新界一帶即日上門。
WhatsApp 查詢 →信託公司、家族辦公室裝 CCTV 監控私人會議室同資料保存區，極高保密規格佈點，出入口記錄配合門禁分級，保障客戶身份同資產資料私隱。持牌團隊免費勘察，中環、金鐘專屬樓層歡迎查詢。即約免費勘察、透明報價無隱藏，香港、新界一帶即日上門。
WhatsApp 查詢 →企業秘書、稅務顧問公司裝 CCTV 監控客戶公司文件檔案室，稅季外勤同事出入記錄管理，配合門禁分級保障大量客戶公司機密資料，防止未授權查閱。免費上門評估，上環、灣仔企業服務公司即約報價。免費上門度尺、報價一目了然，香港、新界一帶即日上門。
WhatsApp 查詢 →建築工程顧問公司裝 CCTV 監控圖則模型檔案室同繪圖工作間，客戶項目資料同工程圖紙屬機密，配合工地現場監控延伸管理，出入口記錄訪客同承建商往來。免費上門評估，觀塘、灣仔工程顧問樓層即約報價。免費上門度尺、報價一目了然，香港、新界一帶即日上門。
WhatsApp 查詢 →查看更多CCTV 監控適用場景，請參閱 CCTV 監控安裝工程。
如需整套CCTV 監控方案，請參閱 CCTV 監控安裝工程。
