Name: HIKVISION DS-C60S Video Wall Controller
Brand: Hikvision
SKU: DS-C60S

產品簡介

Hikvision DS-C60S 為Video Wall Controller，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-C60S 香港價格連安裝報價。

Power Interfa ce：100 VAC to 240 VAC, 50/60 Hz Cha s sis: 442 mm × 88.1 mm × 3
Cha s s i s Hei ght：2U
Device：Ma i n Control Boa rd Sl ot 1 Ins ta l l ed Ma i n Control B
Ins talled Power Supplies：1
Power Cons umpti on：≤ 150 W (ful l configuration)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

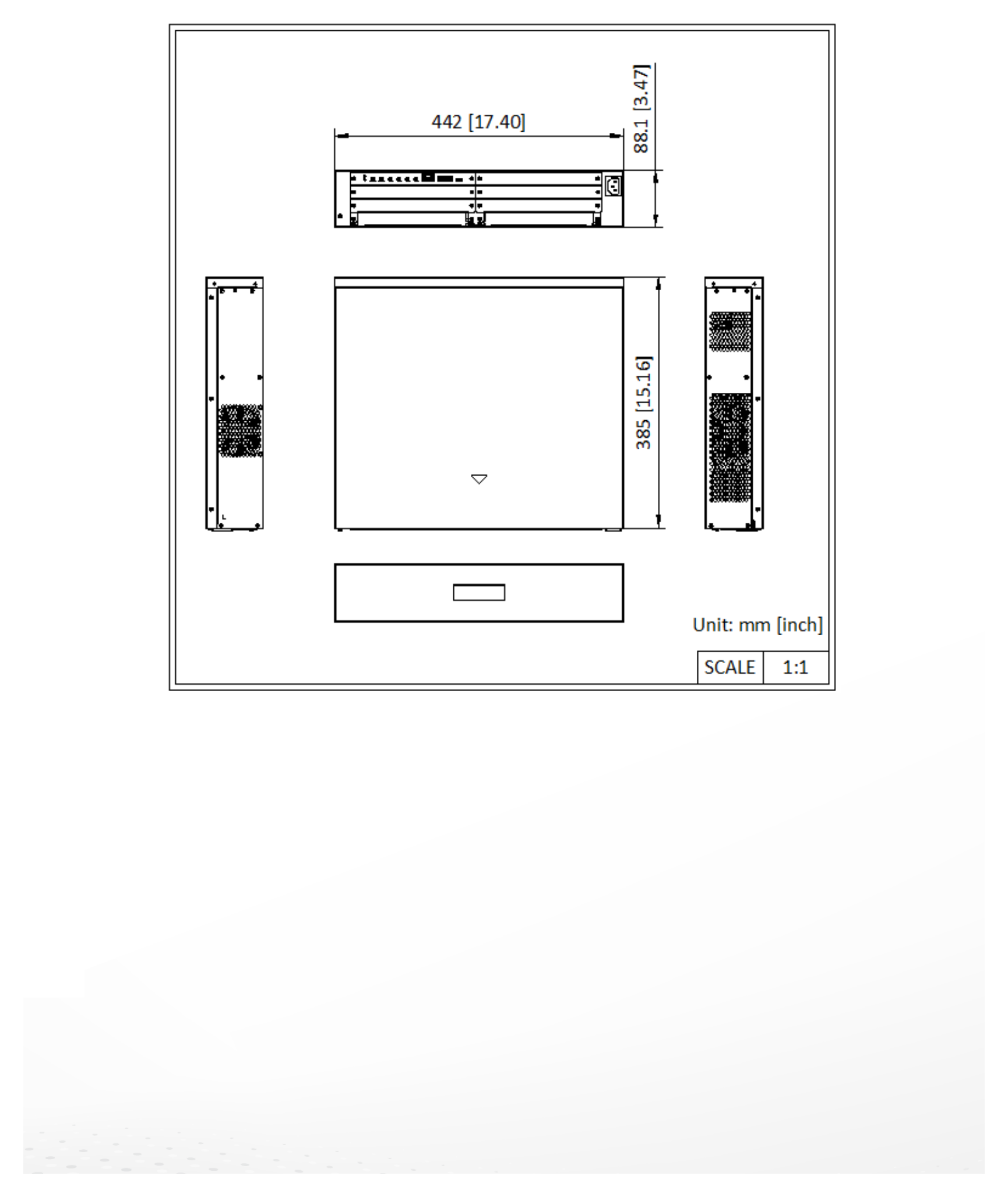

Power Interfa ce	100 VAC to 240 VAC, 50/60 Hz Cha s sis: 442 mm × 88.1 mm × 385 mm (17.40 i nch × 3.47 i nch × 15.16 i nch) Di mensions (W × H × D) Boa rd: 192 mm × 20.1 mm × 223.5 mm (7.56 i nch × 0.79 i nch × 8.80 i nch)
Cha s s i s Hei ght	2U
Device	Ma i n Control Boa rd Sl ot 1 Ins ta l l ed Ma i n Control Boa rds
Ins talled Power Supplies	1
Power Cons umpti on	≤ 150 W (ful l configuration)
Bus Type	Hi gh s peed bus
Ma i n Control Boa rd Sl ot	1
Servi ce Boa rd Sl ot	6 Chassis ≤ 7.6 kg (16.76 l b.)
Net Wei ght	Ful l configuration, chassis net weight: 5.21 kg (11.49 l b.), net weight for each board: 0.46 kg (1.01 l b.)
Worki ng Tempera ture	0 °C to 50 °C
Worki ng Humi di ty	10% to 90% 1 × debug serial port + 1 × RS-485 port (Phoenix contact, baud ra te: 115200; va lid data bit: Seri a l Interfa ce
Main Control	8 bi ts ) + 1 × RS-232 port (Phoenix contact, baud ra te: 115200; va l id data bit: 8 bits)
Board	Audi o Input Interfa ces 2 × 3.5 mm i nput ports (DS-C60S-MCU) Audi o Output Interfa ces 4 × 3.5 mm output ports
Control Network Port	1 × 10/100/1000 Mbps s elf-adaptive Ethernet port (RJ-45)
Occupi ed Sl ot	Input slot
Audi o Input Interfa ces	4 Audi o Input Interfa ce HDMI composite audio Type
Audi o Sa mpl i ng Ra te	32K / 48K s a mpling ra te
Audi o Cha nnel	Dua l channels Vi deo Input Interfa ce HDMI 1.4 Type
HDMI Input Board	Vi deo Input Interfa ces 4 (DS-C60S-04HI) 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720p@50 Hz, 1280 × 720p@60 Hz, 1920 × 1080p@50 Hz, 1920 × 1080p@60 Hz, 1920 × 1200@60 Hz
Vi deo Input Res ol uti on	Cus tom resolution: wi dth ra nges from 800 to 2560, hei ght ra nges from 600 to 2560. Width mus t be a multiple of 4 a nd height must be a multiple of 2. Fra me rate is 30 Hz or 60 Hz. When configuring 30 Hz frame rate, the resolution ranges from 1280 ×720 to 2048 × 1152. When configuring 60 Hz fra me ra te, the resolution ranges from 800 ×600 to 2048 × 1152. Ma x. Vi deo Input 1080p Res ol uti o
Vi deo Input Interfa ces	4 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 ×768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 ×1200@60 Hz, 1280 × 720p@50 Hz, DVI Input Board 1280 × 720p@60 Hz, 1920 ×1080p@50 Hz, 1920 × 1080p@60 Hz, 1920 × 1200@60 Hz (DS-C60S-04DI)
La yers	16 l a yers per port (2K/4K)
Audi o Output Interfaces	4 Audi o Output Interfa ce HDMI composite audio Type Vi deo Output Interfa ce HDMI 1.4 Type HDMI Output
Vi deo Output Interfa ces	4 Board 1920 × 1200@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1680 × 1050@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz Vi deo Output Resolution Supports LED screen, custom resolution output, 60 Hz l oading output, and 2.6 MP l oading wi th wi dth ra nging from 144 to 4096 a nd height ra nging from 144 to 2160. Ma x. Vi deo Output 1080p Res ol uti on
Loa di ng Ca pa ci ty for	2.6 MP l oa ding per port, wi dth i n the ra nge of 144 to 4096, hei ght in the range of 144 to
Vi deo Output to LED	2160.
Di s play Video Wall Image	Output resolution for displaying vi deo wall image on the connected s creen: 1080p@60 Hz Ma xi mum number of different s ource preview channels: 16
Preview board	Previ ew Cha nnel s Ma xi mum number of previ ew channels: 80 (DS-C60S-PRE) Number of vi deo walls ca n be displayed on the s creen or previewed on the cl ient: 1
Vi deo Encodi ng Forma t	H.264
Vi deo Encodi ng	Encodi ng resolution for displayi ng video wall image: 1080p30
Res ol uti on	Encodi ng resolution for i nput live vi ew: D1
Vi deo Decodi ng Forma t	H.264, H.265, Sma rt264, Sma rt265, MJPEG Vi deo Decodi ng Cha nnel s Sma rt H.265/Smart H.264/H.264/H.265: 24 cha nnels of 1080p@30 fps or 48 channels of
Decoding board	720p@30 fps Vi deo Decodi ng Ca pa bi l i ty Supports decoding a maximum of 1 cha nnel of 32 MP@30 fps da ta or 2 cha nnels of 16 MP@30 fps data. Vi deo Decodi ng ≤ 3200 W Res ol uti on
Audi o Decodi ng Forma t	G711-A, G711-U, G722.1, G726-16/U, MPEG, AAC-LC
Electrical LED	Vi deo Output Resolution Hei ght: 64 to 8192 The wi dth must be a multiple of 4. Ma x. Vi deo Output Res ol uti on Loa ding resolution must be smaller than 10.4 MP. Loa di ng Ca pa ci ty for Wi dth: 64 to 16384 Vi deo Output to LED Hei ght: 64 to 8192 Mi ni l oading: 0.65 MP per port; Loa di ng Mode Sta ndard loading: 2.72 MP per port
Optical LED	Wi dth: 64 to 16384 Vi deo Output Resolution
controller board	Hei ght: 64 to 8192 (DS-C60S- The wi dth must be a multiple of 4. 16NO/2FO) Ma x. Vi deo Output Res ol uti on Loa ding resolution must be smaller than 10.4 MP. Loa di ng Ca pa ci ty for Wi dth: 64 to 16384 Vi deo Output to LED Hei ght: 64 to 8192 Mi ni l oading: 0.65 MP per port; Loa di ng Mode Sta ndard loading: 2.72 MP per port
